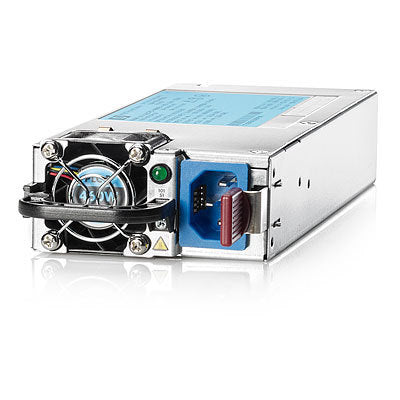

HPE 656362-B21 | Common Slot 460W Platinum Plus Hot-Plug Power Supply
SKU:656362-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This HPE Common Slot power supply delivers 460W of hot-plug, tool-less AC power for HPE ProLiant Gen8-era rack and tower servers. It suits data centre and enterprise environments that want efficient, right-sized primary or redundant power with Power Discovery Services integration.
The Platinum Plus rating gives efficiency of up to 94%, measured at 89.0% on 100V input and up to 93.1% on 240V input, with a power factor of 0.998. It accepts 100-240V AC at 50-60 Hz across both low-line and high-line ranges, with a nominal input current of 5.2A at 100V down to 2.1A at 240V. The blue plug and power line communication port support HP Power Discovery Services, sharing power data with HP Intelligent PDUs and HP Insight Control.
The Common Slot form factor is shared across a wide range of HP server and storage platforms, which helps reduce spares overhead. Supply options in the same server must have matching output and efficiency ratings, so mixing different power supplies is not supported. Check the HP ProLiant Options Compatibility Guide to confirm support for your specific server model.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Tool-less hot-swap Common Slot design for quick and easy access
- Common Slot form factor gives wide compatibility across HP server and storage solutions, reducing spares overhead
- Platinum-level efficiency of up to 94% to reduce power waste and data centre operating costs
- Power Discovery Services support via embedded power line communication, sharing power data with HP Intelligent PDUs and HP Insight Control
- Load-Balancing and High-Efficiency operating modes in redundant power configurations
- Supports both low-line and high-line AC voltage inputs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum rated output: 460W
- Efficiency rating: 80 PLUS Platinum (Platinum Plus), up to 94%
- Input voltage: 100-240V AC, low line and high line
- Input frequency: 50-60Hz nominal (47Hz to 63Hz range)
- Form factor: Common Slot, hot-plug, tool-less
- Power Discovery Services: Supported via blue C13 connector and PLC port
- Power factor: 0.998
- Nominal input current: 5.2A at 100V, 2.1A at 240V
- Maximum inrush current: 30A peak for 20ms
- Operating temperature: 5 to 50 C
- Operating humidity: 5% to 95%, non-condensing
- Storage temperature: -40 to 85 C
- Dimensions (W x H x D): 3.81 x 8.63 x 19.05 cm
- Unit weight: 1.13 kg
- HP generic part number: 643931-001
- HP spares part number: 660184-001
FAQs
Q: What input voltage does this power supply accept?
A: It accepts 100-240V AC at 50-60Hz, covering both low-line (100V rated) and high-line (200-240V rated) inputs.
Q: Does it support HP Power Discovery Services?
A: Yes. The blue C13 connector and power line communication port allow it to share power data with HP Intelligent PDUs and HP Insight Control.
Q: Can I mix this with a different wattage power supply in the same server?
A: No. Mixing different power supplies in the same server is not supported. All installed supplies must have the same output and efficiency rating.
Q: Which servers is it compatible with?
A: Common Slot power supplies work across a wide range of HP ProLiant servers and storage. This 460W unit is commonly fitted to ProLiant Gen8 servers such as the DL320e, DL360e/p, DL380p and ML350p. Confirm your model in the HP ProLiant Options Compatibility Guide.
Q: Is it hot-swappable?
A: Yes. It is a hot-plug, tool-less Common Slot unit, so it can be replaced in a redundant configuration without powering down the server.
