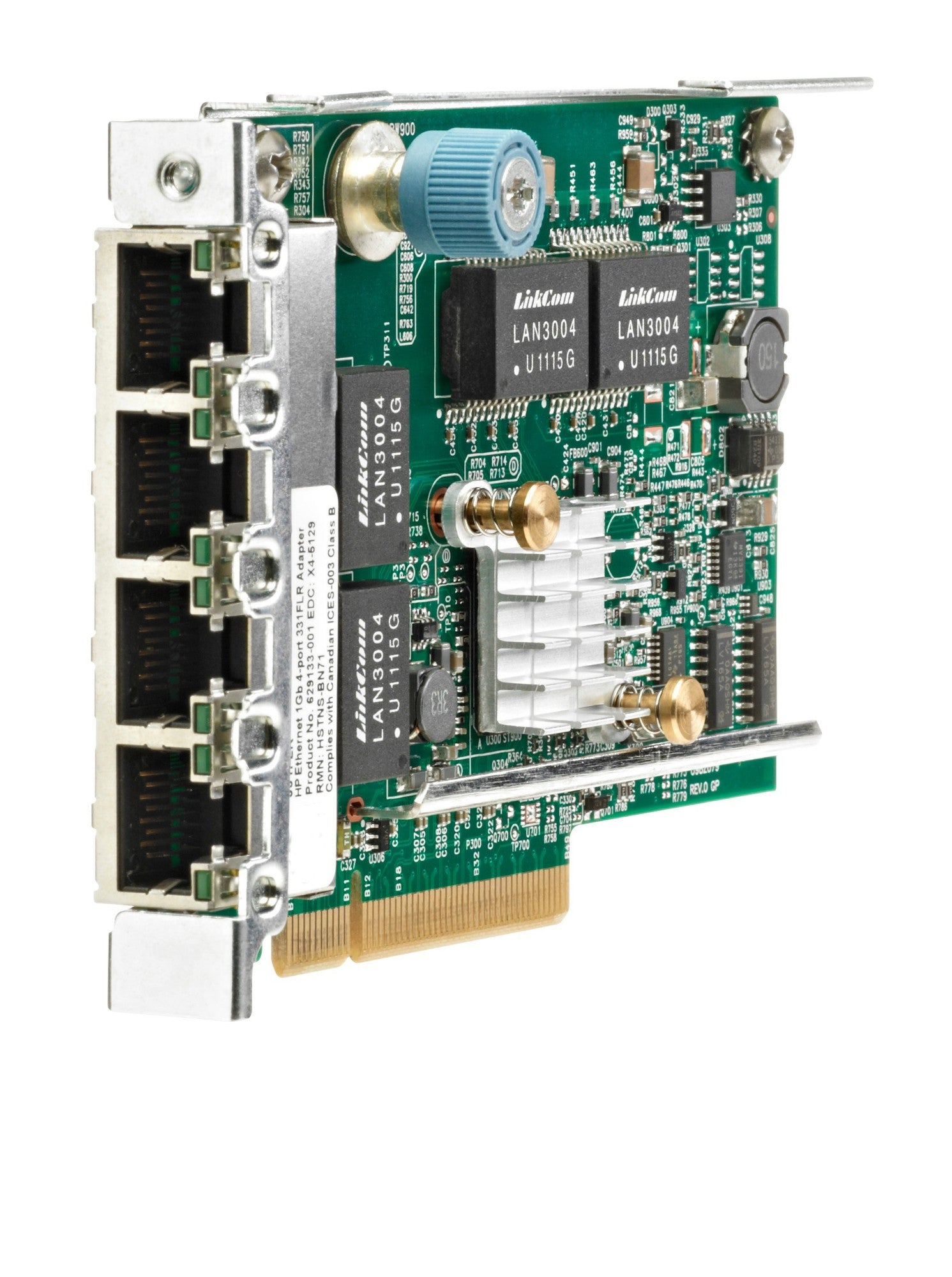

HPE 629135-B22 | 331FLR 4-Port Gigabit Network Adapter, BCM5719, FlexibleLOM
SKU:629135-B22
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The HPE Ethernet 1Gb 4-port 331FLR is a quad-port Gigabit Ethernet network adapter in the FlexibleLOM form factor, built for select HPE ProLiant and Apollo servers. It suits rack server deployments that need high-bandwidth, high port-density networking, link aggregation and virtualised server environments.
It provides four 10/100/1000BASE-T RJ-45 ports driven by a single Broadcom BCM5719 chip, with up to 8 Gbps of aggregate full-duplex throughput (2 Gbps per port) and 276 MB of onboard memory. The adapter connects over PCI Express 2.0 x4 and draws 5.5 W maximum, powered directly from the server's FlexibleLOM slot. Offload features, jumbo frames, 802.1Q VLAN tagging and MSI-X help reduce CPU load on multi-core servers.
It is designed for select HPE ProLiant Gen8, Gen9 and Gen10 rack servers, including DL360 and DL380 models, as well as some Apollo Gen9 systems. It needs one x4 PCIe Gen2 FlexibleLOM slot and is mechanically compatible with x8 and x16 FlexibleLOM slots.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single-chip quad-port 1GbE design for high throughput and port density
- Large Send and Receive offload, TCP checksum and segmentation offload
- 802.1Q VLAN tagging and jumbo frame support
- MSI-X for load balancing on multi-core servers
- VMware NetQueue and Microsoft VMQ virtualisation support
- Energy Efficient Ethernet (IEEE 802.3az)
- PXE boot support and IEEE 1588 precision time protocol
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Network processor: Broadcom BCM5719
- Ports: 4 x 10/100/1000BASE-T RJ-45
- Link speeds: 10/100/1000 Mbps, full-duplex
- Aggregate throughput: up to 8 Gbps full duplex (2 Gbps per port)
- Onboard memory: 276 MB
- Bus type: PCI Express 2.0
- Bus width: x4 (mechanically compatible with x8 and x16 slots)
- Form factor: FlexibleLOM
- Dimensions (L x W): 11.75 cm x 7.62 cm
- Power consumption: 5.5 W maximum
- Standards: 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, IEEE 1588, 802.1as
- Operating temperature: 0 to 55 C
- Operating humidity: 10 to 90% non-condensing
- Status indicators: Link and activity LEDs
- Boot support: PXE
FAQs
Q: Which servers is the 331FLR adapter designed for?
A: It is designed for select HPE ProLiant Gen8, Gen9 and Gen10 rack servers, such as DL360 and DL380 models, and some Apollo Gen9 systems including the XL230a and XL450.
Q: What slot does it require?
A: It requires one x4 PCIe Gen2 FlexibleLOM slot. The card is also mechanically compatible with x8 and x16 FlexibleLOM slots.
Q: Does it need a separate power supply?
A: No. It draws 5.5 W maximum and is powered from the server's FlexibleLOM slot.
Q: Does it support PXE boot and link aggregation?
A: Yes. It supports PXE boot and IEEE 802.3ad link aggregation across its four ports.
Q: Does it support virtualised environments?
A: Yes. It supports VMware NetQueue and Microsoft VMQ, along with MSI-X, to help distribute network load on virtualised multi-core servers.
