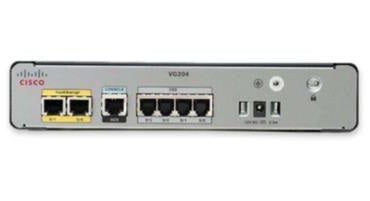

• Cisco VG204XM 4-port FXS analog voice gateway with yellow black ports silver body
1 1

Cisco

Cisco VG204XM | VG200 4-Port FXS Analog Voice Gateway, SIP/SCCP

VG204XM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The VG204XM is a low-density analog voice gateway from the Cisco VG200 series. It connects analog phones, fax machines and modems to an IP telephony network, which suits enterprise, commercial and service-provider unified communications deployments that still rely on legacy analog endpoints.

This model provides 4 FXS voice ports on RJ-11, with loop-start or ground-start signalling, plus 2 x 10/100 Fast Ethernet ports on RJ-45. It supports both SIP and SCCP signalling, G.711 and G.729a voice codecs, and T.38 fax relay. It carries 256 MB of memory with CompactFlash storage, and also provides a console/auxiliary serial port and a USB port. The VG204XM has 4 FXS ports, where the VG202XM has 2.

The desktop or wall-mountable chassis is powered from an external AC supply and does not provide PoE. The VG204XM works with Cisco Unified Communications Manager and Cisco Unified Communications Manager Express for call control. The chassis is identical to the VG204, with only the faceplate label differing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connects analog phones, fax machines and modems to an IP network
- Supports both SIP and SCCP signalling
- Call control through Cisco Unified Communications Manager or Cisco Unified CME
- Runs Cisco IOS with fax/modem, security and SIP features
- T.38 fax relay with G.711 and G.729a codecs
- Compact desktop or wall-mount chassis
- Dual 10/100 Fast Ethernet ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- FXS voice ports: 4 (RJ-11), loop-start or ground-start
- Ethernet ports: 2 x 10/100 Fast Ethernet (RJ-45)
- Serial port: 1 (console/auxiliary)
- USB port: Yes
- Management port: Yes
- Signalling protocols: SIP, SCCP
- Voice codecs: G.711, G.729a
- Fax: T.38
- Memory: 256 MB
- Memory card: CompactFlash
- Wireless LAN: No
- Power source: external AC power supply
- DC input rating: 12 V
- Power in efficient idle mode (Lot 26): 7.56 W
- PoE: Not provided
- Form factor: Desktop, wall-mountable
- Dimensions (H x W x D): 1.8 x 8.8 x 8.1 in
- Weight: approx. 2.98 lb
- EMC compliance: FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, CISPR22 Class B, VCCI Class B
- Safety compliance: UL 60950, CAN/CSA C22.2 No. 60950, IEC 60950, EN 60950-1, AS/NZS 60950

FAQs

Q: What call control platforms does the VG204XM work with?
A: It works with Cisco Unified Communications Manager (CUCM) and Cisco Unified Communications Manager Express (CUCME). It supports both SIP and SCCP signalling.

Q: Does the VG204XM provide PoE?
A: No. It is powered from an external AC power supply and does not provide PoE.

Q: How does the VG204XM differ from the VG202XM?
A: The VG204XM has 4 FXS voice ports, while the VG202XM has 2 FXS ports.

Q: Is the VG204XM the same hardware as the VG204?
A: Yes. The VG204 and VG204XM share an identical chassis, and only the faceplate label differs.

Q: Which voice and fax standards does it support?
A: It supports G.711 and G.729a voice codecs and T.38 fax relay, so analog phones, fax machines and modems can connect to the IP network.
