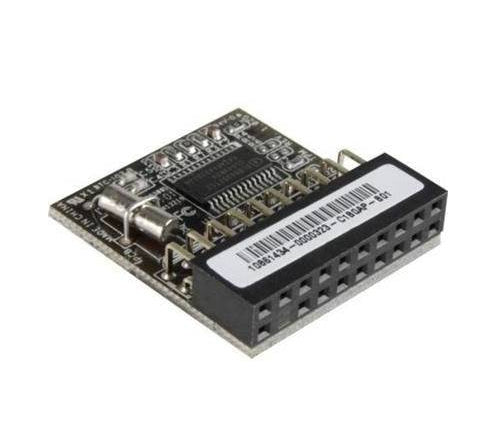

Cisco UCSX-TPM2-001 | UCS TPM 1.2 SPI Module, Hardware Root of Trust
SKU:UCSX-TPM2-001
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Trusted Platform Module 1.2 is a SPI-based security chip for Cisco UCS servers, providing a hardware root of trust for storing keys, passwords and digital certificates. It records platform measurements to support measured boot, platform authentication and attestation. The TPM 1.2 SPI variant is distinct from the TPM 2.0 and FIPS 140-2 TPM 2.0 options in the same UCS range, and it is managed through UCS Manager TPM policies.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware root of trust for storing keys, passwords and digital certificates
- Stores platform measurements to help ensure platform integrity (measured boot)
- Supports platform authentication and attestation
- Managed through UCS Manager TPM policies (BIOS policy tpm-state)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Trusted Platform Module (TPM)
- TPM version 1.2 (Trusted Computing Group standard)
- Interface: SPI-based
- Cisco PID: UCSX-TPM2-001
- Compatible with Cisco UCS C220 M5, B200 M4, B420 M4, S3260 and M-Series compute cartridges
- Installs with a one-way screw; cannot be replaced, upgraded or moved to another server
- Installation supported after factory build
FAQs
Q: Which TPM version does the UCSX-TPM2-001 support?
A: It is a TPM 1.2 module using a SPI-based interface. TPM 2.0 options in the UCS range are separate part numbers, UCSX-TPM2-002 and the FIPS 140-2 variant UCSX-TPM2-002B.
Q: Which Cisco UCS servers is this TPM compatible with?
A: It is compatible with Cisco UCS C220 M5, B200 M4, B420 M4, S3260 and M-Series compute cartridges.
Q: Can the TPM be moved to another server after installation?
A: No. The module installs with a one-way screw, so it cannot be replaced, upgraded or moved to a different server once fitted.
Q: Can it be installed after the server has been built?
A: Yes. Installation is supported after the factory build.
Q: How is the TPM managed on a UCS system?
A: It is managed through UCS Manager TPM policies, using the BIOS policy tpm-state setting.
