Cisco UCSX-SD76TKA1XEVD | UCS X-Series 7.6TB 24G SAS SSD, Enterprise Value 1X
SKU:UCSX-SD76TKA1XEVD
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

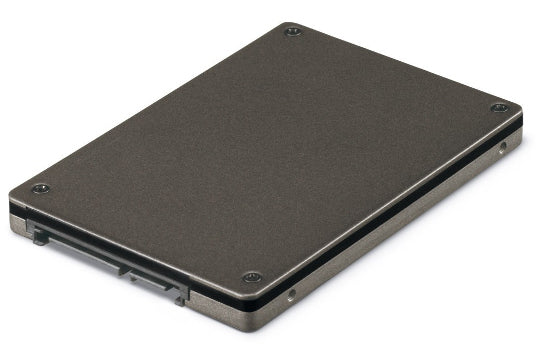

This 7.6TB 2.5-inch SAS solid-state drive is built on Kioxia PM7 hardware and is designed for Cisco UCS X-Series modular compute nodes such as the X210c M7. It is a hot-pluggable, sled-mounted drive for the front drive bays, suited to capacity-oriented local storage including boot, virtualisation and read-intensive application workloads.
The drive sits in the Enterprise Value endurance tier, a low-endurance class rated up to 1X drive writes per day, with a 24G SAS interface. It is part of a Kioxia PM7 Enterprise Value family that also includes 1.9TB, 3.8TB and 15.3TB capacities, and it is offered under the spare part number UCSX-SD76TKA1XEVD= as well as the factory-configured part number.
The drive is listed as a supported option for the UCS X210c M7 compute node, which takes one to six 2.5-inch SAS/SATA SSDs or NVMe drives. It requires the UCSX-X10C-RAIDF-D front mezzanine RAID controller. Two identical SSDs are needed for a RAID group, while in JBOD mode the drives do not need to match.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise Value endurance tier suited to read-intensive and mixed workloads
- Hot-pluggable, sled-mounted 2.5-inch SAS SSD for UCS X-Series compute nodes
- Managed through the UCS X210c M7 front mezzanine RAID controller
- Available as a factory-configured drive or as a spare under UCSX-SD76TKA1XEVD=
- Part of a Kioxia PM7 Enterprise Value family with 1.9TB, 3.8TB, 7.6TB and 15.3TB capacities
- Powered from the compute node backplane, so no separate power supply is needed
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 7.6TB
- Form factor: 2.5-inch small form factor
- Interface: 24G SAS
- Drive type: SAS SSD
- Endurance class: Enterprise Value, low endurance, up to 1X DWPD
- NAND and controller family: Kioxia PM7
- Mounting: hot-pluggable, sled-mounted
- Drives per X210c M7 compute node: one to six 2.5-inch SAS/SATA SSDs or NVMe drives
- Required controller: UCSX-X10C-RAIDF-D front mezzanine RAID adapter
- RAID rule: two identical SSDs required for a RAID group, JBOD drives need not match
- Spare part number: UCSX-SD76TKA1XEVD=
FAQs
Q: Which compute node does this drive work with?
A: It is listed as a supported optional drive for the Cisco UCS X210c M7 Compute Node. The X210c M7 accepts one to six 2.5-inch SAS/SATA SSDs or NVMe drives.
Q: Which RAID controller does it need?
A: It requires the UCSX-X10C-RAIDF-D front mezzanine RAID adapter. The pass-through controller option is for NVMe drives only, so it does not suit this SAS drive.
Q: Do I need identical drives for RAID?
A: Yes. Two identical SSDs are required to form a RAID group. In JBOD mode the drives do not need to be identical.
Q: What does the Enterprise Value 1X rating mean?
A: It is a low-endurance class rated up to 1 drive write per day. It suits read-intensive and mixed workloads such as boot, virtualisation and general application storage.
Q: Does the drive need its own power supply?
A: No. It is powered from the compute node backplane through the front drive bay.
