Cisco UCSX-S9108-100GM6 | UCS X-Series Direct 9108 100G, 8x QSFP28, M6 Bundle
SKU:UCSX-S9108-100GM6
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

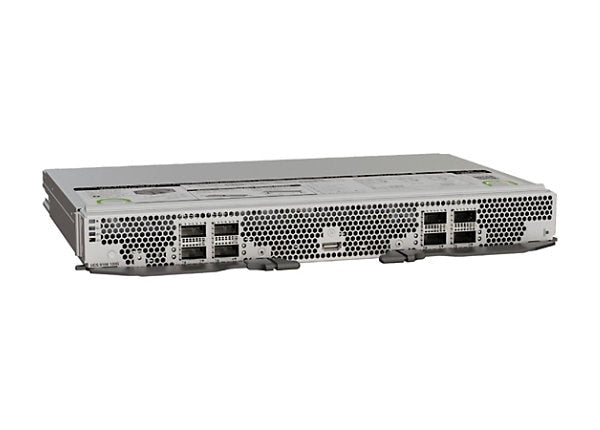

The UCS X-Series Direct Fabric Interconnect 9108 100G is a rear-loading fabric interconnect module for the UCS X9508 chassis, deployed as a pair. It suits edge, branch office and small data centre deployments, including HCI, VSI, VDI, container and data protection workloads, where a self-contained UCS X-Series domain is needed without separate external fabric interconnects. It is also a migration path for UCS Mini customers.
Each unit provides 8x QSFP28 ports supporting 1, 10, 25, 40 and 100 GbE, for 1.6 Tbps of network data path bandwidth. Two unified ports support Fibre Channel at 32/64/128G, with breakout into 4x 8/16/32G FC. With two interconnects in the chassis, each compute node receives up to 200 Gbps. This SKU is the M6 compute node bundle variant (UCSX-M6-MLB) of the 9108 100G. Latency is under 1 microsecond and power consumption is 237 W, supplied by the chassis. The perpetual software licence UCSX-S9108-SW is included with the ordering PID and activates all ports and software features.
The interconnect supports X210c M6/M7/M8, X410c M7 and X215c M8 compute nodes, UCS C220/C240 M7/M8 and C225/C245 M8 rack servers, and X440p/X580p PCIe nodes with X-Fabric 9416/9516. Compatible optics include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD and QSFP-100G-SM-SR, plus breakout and Twinax cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Connects a UCS X9508 chassis directly to top-of-rack switches without separate external fabric interconnects
- Unified fabric carrying management, Ethernet, FCoE and Fibre Channel traffic
- Lossless fabric with Priority Flow Control and systemwide bandwidth management and QoS
- Managed by Cisco Intersight (SaaS or appliance) or Cisco UCS Manager
- Expands to up to 20 compute nodes with a second X9508 chassis and up to four C-Series rack servers
- Monitors chassis fans, power supplies, environmentals and LEDs, and carries KVM, SoL and IPMI traffic
- Ports configurable as uplink, appliance, FCoE or FC unified ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8x QSFP28 (1/10/25/40/100 GbE)
- Network data path bandwidth: 1.6 Tbps (8x 100 Gbps per FI, two FIs per chassis)
- Server data path bandwidth: 1.6 Tbps for 8 compute nodes
- Per compute node: 1x 100 Gbps or 4x 25 Gbps per FI, 200 Gbps with dual FIs
- Fibre Channel connectivity: 8, 16, 32 Gbps
- Fibre Channel mode: End-host and switch mode
- Ethernet uplink ports: up to 8x 100 Gbps
- Fibre Channel uplink ports: up to 8x 32 Gbps through breakout cables
- Appliance ports: up to 8
- Unified ports: 2 (ports 1-2), 32/64/128G FC with breakout into 4x 8/16/32G FC
- CPU complex: Intel Denverton, 8 core, 2.2 GHz, 15 W
- Memory: DDR4 16 GB maximum at 2133 MHz
- Fans: 3 dual-rotor on-board fans, front-to-rear airflow
- Power supply: supplied by the UCS X9508 chassis
- Power consumption: 237 W
- Latency: less than 1 microsecond
- Dimensions (H x W x D): 4.2 x 37.9 x 29.9 cm
- Weight: 3.82 kg
- Operating temperature: 10 to 35 C
- Non-operating temperature: -40 to 70 C
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 4000 m
- Management: Cisco Intersight or UCS Manager 4.3(4b)+, IMM 4.3(4)+
FAQs
Q: Does this interconnect need a separate licence?
A: The perpetual software licence UCSX-S9108-SW is included by default with the ordering PID and activates all ports and software features. Cisco Intersight or UCS Manager is required for management, and Intersight service tier licensing is separate.
Q: How is the interconnect powered?
A: It is powered by the UCS X9508 chassis and has no separate power supply. Power consumption is 237 W, and two interconnects are required per chassis for production operation.
Q: Which compute nodes and chassis does it work with?
A: It installs in the rear of the UCS X9508 chassis and supports X210c M6/M7/M8, X410c M7 and X215c M8 compute nodes. It also supports UCS C220/C240 M7/M8 and C225/C245 M8 rack servers and X440p/X580p PCIe nodes.
Q: Which optics can I use in the QSFP28 ports?
A: Genuine Cisco options include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD and QSFP-100G-SM-SR, plus breakout and Twinax cables. Check the Cisco TMG matrix for the full list.
Q: Which management software versions are required?
A: UCS Manager 4.3(4b) or later, or Intersight Managed Mode 4.3(4) or later. Version 6.0(1b) or later is needed for a second chassis and rack servers.
