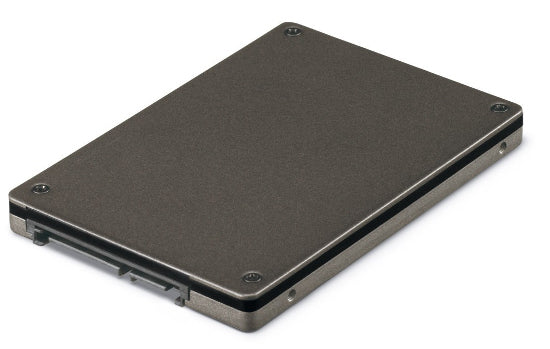

Cisco UCSX-NVMEG4M7680D | UCS X-Series 7.6TB U.3 NVMe SSD, Medium Endurance
SKU:UCSX-NVMEG4M7680D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 7.6TB hot-swappable NVMe SSD is built for Cisco UCS X-Series compute nodes. It uses a 2.5-inch, 15mm U.3 form factor and is based on the Micron 7450 PRO with 176-layer TLC NAND, tuned as a high performance, medium endurance drive for read-intensive workloads such as virtualisation, databases, analytics and general data-centre storage.
The drive connects over PCIe Gen4 x4 using NVMe 1.4. It delivers up to 6,800 MB/s sequential read and 5,600 MB/s sequential write, with up to 1,000,000 random read IOPS and 215,000 random write IOPS. Endurance is rated at 1 DWPD, or 14,000 TB written. It draws up to 12.1 W during sequential read and 16.6 W during sequential write, powered from the server drive backplane.
It works with Cisco UCS X-Series compute nodes such as the X210c M7, X210c M8 and X215c M8. NVMe drives need a front mezzanine module, either the UCSX-X10C-PT4F-D pass-through controller or the UCSX-X10C-RAIDF-D RAID controller. Up to 6 U.3 NVMe drives can be ordered with the RAID controller, and up to 2 with the front mezzanine GPU module.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable U.3 NVMe drive for UCS X-Series compute nodes
- Power loss protection to keep in-flight data safe if power is lost
- Data path protection against bit errors
- Micron Secure Execution Environment with secure boot and key-based firmware update
- PCIe Gen4 NVMe performance with sub-2ms QoS latencies
- High performance, medium endurance profile suited to read-intensive workloads
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 7.6TB (7.68TB raw)
- Form factor: 2.5-inch U.3, 15mm, hot-swappable
- Interface: PCIe Gen4 x4, NVMe 1.4
- NAND: Micron 176-layer 3D TLC
- Sequential read: up to 6,800 MB/s
- Sequential write: up to 5,600 MB/s
- Random read: up to 1,000,000 IOPS
- Random write: up to 215,000 IOPS
- 70/30 random read/write: 415,000 IOPS
- Typical latency: 80 us read, 15 us write
- Endurance: 14,000 TB written (1 DWPD)
- MTTF: 2 million device hours
- UBER: less than 1 sector per 10^17 bits read
- Power, sequential read: 12.1 W maximum average RMS
- Power, sequential write: 16.6 W maximum average RMS
- Operating temperature: 0 to 70 C
FAQs
Q: Which UCS X-Series compute nodes does this drive work with?
A: It is designed for Cisco UCS X-Series compute nodes such as the X210c M7, X210c M8 and X215c M8.
Q: Does it need a specific front mezzanine module?
A: Yes. NVMe drives need a front mezzanine module, either the UCSX-X10C-PT4F-D pass-through controller or the UCSX-X10C-RAIDF-D RAID controller.
Q: How many of these drives can be fitted to one node?
A: A maximum of 6 U.3 NVMe drives can be ordered with the RAID controller, and a maximum of 2 NVMe drives with the front mezzanine GPU module.
Q: What does medium endurance mean for this drive?
A: It is rated at 1 DWPD, or 14,000 TB written, which suits read-intensive and mixed workloads rather than heavy write-focused use.
Q: Does it need a separate power supply?
A: No. It is powered from the server drive backplane and draws up to 12.1 W during sequential read and 16.6 W during sequential write.
