Cisco

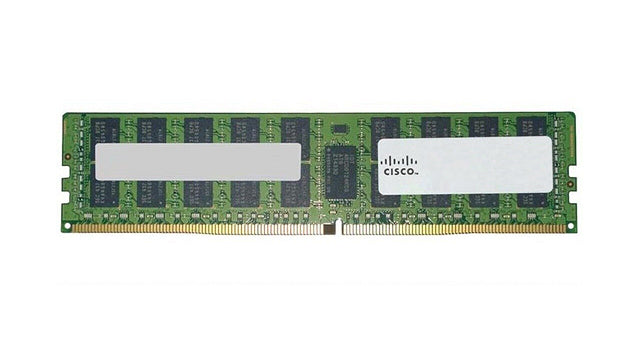

Cisco UCSX-MRX64G2RE1S | UCS X-Series 64GB DDR5-4800 RDIMM Module, 2Rx4

SKU:UCSX-MRX64G2RE1S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 64GB DDR5-4800 registered DIMM is built for Cisco UCS X-Series M7 compute nodes, specifically the X210c M7 and X410c M7 running 4th Gen Intel Xeon Scalable processors. It suits virtualisation hosts, database servers and general data-centre workloads, and works as a like-for-like spare or expansion DIMM for servers already populated with DDR5-4800.

The module is dual-rank x4 (2Rx4) using 16Gb DRAM, with on-die ECC and 1.1V operation in a 288-pin RDIMM format. Maximum speed depends on the CPU and population: with Platinum 8 and Gold 6 processors it runs at 4800 MT/s at 1DPC and 4400 MT/s at 2DPC, while Gold 5 processors run it at 4400 MT/s and Silver 4 or Bronze 3 processors at 4000 MT/s. Each CPU provides 8 memory channels with up to 2 DIMMs per channel.

The 64GB module can be mixed only with 32GB RDIMMs, and DDR5-4800 and DDR5-5600 DIMMs cannot be combined in a 4th Gen CPU server. Cisco lists UCSX-MRX64G2RE3S (64GB DDR5-5600) as the migration part for this DIMM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DDR5 registered DIMM with on-die ECC
- 1.1V low-voltage operation
- Dual-rank x4 organisation supports SDDC and ADDDC RAS features
- Qualified for Cisco UCS X-Series M7 compute nodes
- Can be mixed with 32GB RDIMMs in a balanced configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 64GB
- Type: DDR5 RDIMM (registered, on-die ECC)
- Speed: DDR5-4800 MT/s (PC5-38400)
- Organisation: 2Rx4 (dual rank, x4)
- DRAM density: 16Gb
- Voltage: 1.1V
- Form factor: 288-pin
- Platform: Cisco UCS X210c M7 and X410c M7 compute nodes
- Supported CPUs: 4th Gen Intel Xeon Scalable (Sapphire Rapids)
- Max speed with Platinum 8 / Gold 6 CPUs: 4800 MT/s at 1DPC, 4400 MT/s at 2DPC
- Max speed with Gold 5 CPUs: 4400 MT/s at 1DPC and 2DPC
- Max speed with Silver 4 / Bronze 3 CPUs: 4000 MT/s at 1DPC and 2DPC
- Memory channels: 8 per CPU, up to 2 DIMMs per channel
- Max DIMMs per server: 32 (2-socket), 64 (4-socket X410c M7)

FAQs

Q: Which servers is this DIMM compatible with?
A: It is qualified for Cisco UCS X210c M7 and X410c M7 compute nodes fitted with 4th Gen Intel Xeon Scalable processors.

Q: Can I mix it with DDR5-5600 memory?
A: No. DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in a 4th Gen CPU server. For expansion of a server already fitted with DDR5-4800, use DDR5-4800 spares.

Q: What speed will it run at?
A: It runs at up to 4800 MT/s at 1DPC and 4400 MT/s at 2DPC with Platinum 8 and Gold 6 CPUs. Gold 5 CPUs run it at 4400 MT/s, and Silver 4 or Bronze 3 CPUs at 4000 MT/s.

Q: Can it be mixed with other DIMM capacities?
A: The 64GB RDIMM can be mixed only with 32GB RDIMMs, in a balanced configuration.

Q: What is the migration part for this DIMM?
A: Cisco lists UCSX-MRX64G2RE3S, a 64GB DDR5-5600 RDIMM 2Rx4 (16Gb), as the migration part.
