Cisco

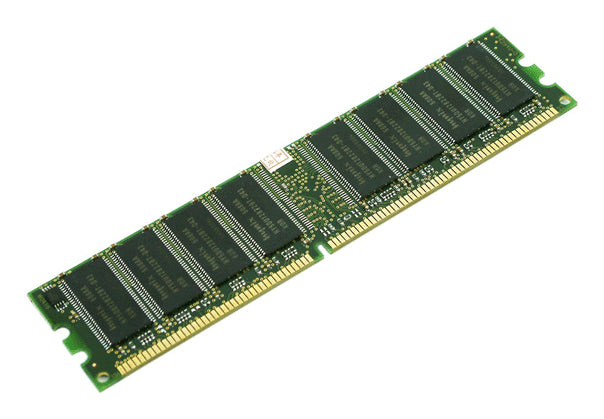

Cisco UCSX-MRX32G1RE3 | UCS X210c M7 32GB DDR5-5600 RDIMM Memory, 1Rx4

SKU:UCSX-MRX32G1RE3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR5-5600 registered DIMM is the option part for Cisco UCS X-Series memory, built for UCS X210c M7 compute nodes. It suits virtualisation, data centre and general enterprise compute workloads where you are adding memory capacity or building out a new configuration.

The module is a single rank x4 design (1Rx4) using 16Gb DRAM, running at 1.1 V with on-die ECC. It is rated at 5600 MT/s, with actual speed set by the installed CPU. With Intel Xeon 5th Gen Platinum 8 series processors it runs up to 5600 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel. With 4th Gen Xeon CPUs it runs at the processor's maximum memory speed, between 4000 and 4800 MT/s. The x4 organisation supports SDDC and ADDDC RAS features.

Each CPU provides 8 memory channels with up to 2 DIMMs per channel, for a maximum of 32 DIMMs in a two-socket server. Populate the blue slot 1 first and configure all CPU sockets identically. This 32GB 1Rx4 DIMM can share a channel only with 64GB 2Rx4 DIMMs, and should not be mixed with DDR5-4800 DIMMs on 4th Gen CPUs or DDR5-6400 DIMMs on 5th Gen CPUs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DDR5 registered memory with on-die ECC
- Low-voltage 1.1 V operation
- Qualified for UCS X210c M7 compute nodes with Intel Xeon 4th and 5th Gen Scalable CPUs
- x4 DRAM organisation supports SDDC and ADDDC RAS features
- Single rank 16Gb DRAM design for capacity-focused memory configurations
- Runs at the maximum speed the installed CPU supports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSX-MRX32G1RE3
- Description: 32GB DDR5-5600 RDIMM 1Rx4 (16Gb)
- Capacity: 32GB
- DIMM type: RDIMM (registered DDR5 DIMM with on-die ECC)
- Rated speed: 5600 MT/s
- Organisation: 1Rx4 (single rank, x4)
- DRAM density: 16Gb
- Operating voltage: 1.1 V
- Memory channels: 8 per CPU, up to 2 DIMMs per channel
- Maximum DIMMs per server: 32 (2-socket)
- Speed with Intel Xeon 5th Gen Platinum 8 series: up to 5600 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Speed with Intel Xeon 5th Gen Gold 6: 5200 MT/s at 1DPC
- Speed with Intel Xeon 5th Gen Gold 5: 4800 MT/s at 1DPC
- Speed with Intel Xeon 5th Gen Silver 4 and Bronze 3: 4400 MT/s at 1DPC
- Speed with Intel Xeon 4th Gen CPUs: CPU maximum memory speed, 4000 to 4800 MT/s
- Supported platform: UCS X210c M7 compute node

FAQs

Q: Which servers does this memory module work in?
A: It is the option part for the Cisco UCS X210c M7 compute node, used with Intel Xeon 4th Gen (Sapphire Rapids) and 5th Gen (Emerald Rapids) CPUs. It is not supported on the X410c M7 with 5th Gen CPUs, and DDR3 or DDR4 memory from earlier generations is not supported.

Q: What speed will it actually run at?
A: It is rated at 5600 MT/s, but the CPU sets the final speed. With 5th Gen Platinum 8 series CPUs it runs up to 5600 MT/s at one DIMM per channel and up to 4400 MT/s at two. With 4th Gen CPUs it runs at the processor's maximum memory speed, 4000 to 4800 MT/s.

Q: Can I mix it with other DIMMs?
A: A 32GB 1Rx4 DIMM can share a channel only with 64GB 2Rx4 DIMMs, with all 8 channels per CPU populated. Do not mix it with DDR5-4800 DIMMs on 4th Gen CPUs or DDR5-6400 DIMMs on 5th Gen CPUs.

Q: How should I populate the memory slots?
A: Configure all CPU sockets identically and populate the blue slot 1 of each channel first. Each CPU supports 8 channels with up to 2 DIMMs per channel, for 32 DIMMs in a two-socket server.

Q: Does it need a licence or separate power?
A: No. It needs no licence and no separate power connection. It runs at 1.1 V, powered directly from the server memory slot.
