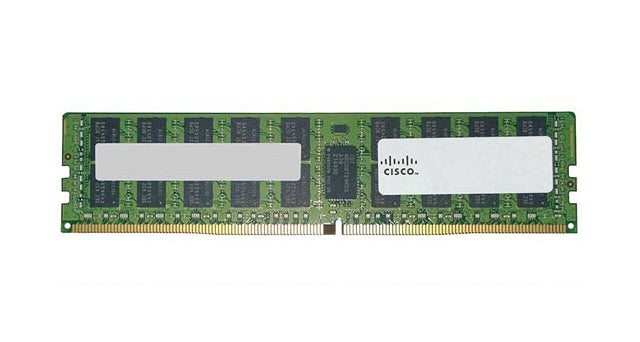

Cisco UCSX-MRX32G1RE1M | UCS X-Series M7 32GB DDR5-4800 RDIMM 1Rx4 Memory

SKU:UCSX-MRX32G1RE1M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR5-4800 registered DIMM is server memory for Cisco UCS X-Series M7 compute nodes such as the X210c M7. It suits memory expansion or replacement in nodes running virtualisation, database and general data-centre workloads.

The module is a single rank, x4 organisation (1Rx4) RDIMM built on 16Gb DRAM density and rated at PC5-38400. It runs at 1.1V, uses a 288-pin registered design and includes on-die ECC. This PID is the 'M' sourcing variant of the base UCSX-MRX32G1RE1 part, so it is the one to specify when you need this exact catalogue code.

With 4th Gen Intel Xeon CPUs the memory clock runs up to 4800 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel. Each CPU has eight memory channels with up to two DIMMs per channel, giving up to 32 DIMMs in a two-socket server. DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in one server with 4th Gen Intel Xeon CPUs, so use DDR5-4800 spares when expanding an existing configuration.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- On-die ECC on registered DDR5 DRAM
- 1.1V operation for lower power than DDR4
- Cisco-qualified memory for UCS X-Series compute nodes
- Single rank x4 design with 16Gb DRAM density
- Population guidance: fill blue slot 1 in each channel first and populate both CPUs identically
- Successor DDR5-5600 DIMMs are electrically compatible and run at the maximum speed a 4th Gen CPU supports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 32GB
- DIMM type: RDIMM (registered DDR5 with on-die ECC)
- Speed grade: DDR5-4800 (PC5-38400)
- Rank and organisation: 1Rx4
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Pin count: 288-pin
- Memory clock with 4th Gen Intel Xeon CPUs: up to 4800 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Memory channels: eight per CPU, up to 2 DIMMs per channel
- Maximum DIMMs per server: 32 (2-socket)
- Supported platform: Cisco UCS X210c M7 compute node
- Successor PID: UCSX-MRX32G1RE3M (32GB DDR5-5600 RDIMM 1Rx4)

FAQs

Q: Which Cisco servers does this memory suit?
A: It is intended for Cisco UCS X-Series M7 compute nodes such as the X210c M7. Check the Cisco M7 Memory Guide before ordering to confirm the configuration you plan to build.

Q: Can I mix it with DDR5-5600 DIMMs?
A: Not with 4th Gen Intel Xeon CPUs. DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in one server on those CPUs, so use DDR5-4800 modules when expanding.

Q: What speed will it run at?
A: With 4th Gen Intel Xeon CPUs it runs up to 4800 MT/s with one DIMM per channel and up to 4400 MT/s with two DIMMs per channel.

Q: How should the DIMMs be populated?
A: Fill the blue slot 1 in each memory channel first, and populate both CPUs identically. Each CPU supports eight channels with up to two DIMMs per channel.

Q: What is the 'M' in the part number?
A: It marks a sourcing variant of the base UCSX-MRX32G1RE1 part. The electrical specification is the same: 32GB DDR5-4800 RDIMM, 1Rx4, 16Gb.
