Cisco UCSX-MRX16G1RE5 | UCS X-Series 16GB DDR5-6400 RDIMM, 1Rx8, 16Gb DRAM
SKU:UCSX-MRX16G1RE5
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

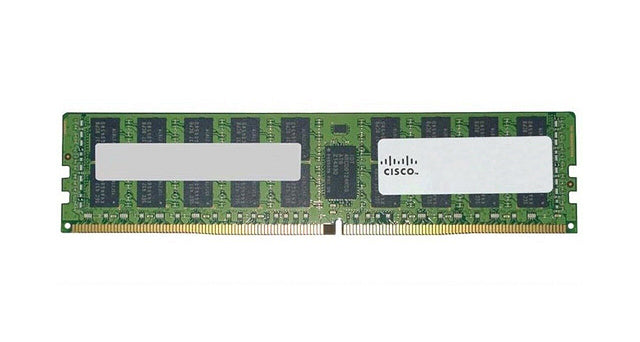

This 16GB DDR5-6400 registered DIMM is a memory module for the Cisco UCS X-Series modular compute range. It is a single-rank, x8 organisation RDIMM built on 16Gb DRAM, suited to base memory configurations or memory expansion in data centre virtualisation, hyperconverged and general enterprise workloads.
The module is rated at DDR5-6400 MT/s (PC5-51200) and operates at 1.1V in a 288-pin ECC registered format. On the UCS X215c M8 compute node, effective speed is set by the CPU memory controller: up to 4800 MT/s with 4th Gen AMD EPYC and up to 6000 MT/s with 5th Gen AMD EPYC at one DIMM per channel. DIMMs run at the lowest common denominator of CPU and DIMM clock speed.
The X215c M8 provides 12 memory channels per CPU with one DIMM per channel, for up to 24 DIMMs in a two-socket node. Memory must be configured identically on every CPU socket, and empty slots should be filled with UCSX-DIMM-BLK blanks for correct airflow. This part is listed in the Cisco UCS X215c M8 specification and the Cisco M7 and M8 memory guides.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- DDR5-6400 registered memory for UCS X-Series compute nodes
- Entry-capacity 16GB single-rank module
- Supported with both 4th and 5th Gen AMD EPYC CPUs in the X215c M8
- ECC registered design for data integrity in server workloads
- Runs at the CPU memory controller's maximum supported speed when the CPU is slower than 6400 MT/s
- Listed in Cisco's M7 and M8 memory guides
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 16GB
- Memory type: DDR5 RDIMM (registered, ECC)
- Rated speed: DDR5-6400 MT/s (PC5-51200)
- Ranks per DIMM: 1 (1Rx8)
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Pin count: 288-pin
- Effective speed on X215c M8 with 4th Gen AMD EPYC: up to 4800 MT/s (1DPC)
- Effective speed on X215c M8 with 5th Gen AMD EPYC: up to 6000 MT/s (1DPC)
- DIMM slots per X215c M8: 12 channels per CPU, 1 DIMM per channel, up to 24 DIMMs (2-socket)
- Population rule: identical memory configuration on every CPU socket
- Empty slots: populate with UCSX-DIMM-BLK blanks
FAQs
Q: Which compute nodes does this DIMM work with?
A: It is listed in the Cisco UCS X215c M8 compute node specification for both 4th Gen and 5th Gen AMD EPYC CPUs. It also appears in the UCS X210c M8 HCI vSAN DIMM list.
Q: What speed will it actually run at?
A: The DIMM is rated at 6400 MT/s but runs at the lowest common speed of the CPU and DIMM. On the X215c M8 that is up to 4800 MT/s with 4th Gen AMD EPYC and up to 6000 MT/s with 5th Gen AMD EPYC at one DIMM per channel.
Q: Can I mix this with other DIMM capacities or speeds?
A: Memory on every CPU socket must be configured identically, and unbalanced populations are unsupported. Pair it with Cisco DDR5-6400 PIDs when using 5th Gen AMD EPYC, and check the Cisco memory guide for exact population rules.
Q: Do I need to fill unused DIMM slots?
A: Yes. Empty DIMM slots should be populated with UCSX-DIMM-BLK blanks to maintain correct airflow in the compute node.
Q: How is this 16GB module different from other UCS X-Series DDR5 DIMMs?
A: This is the single-rank 1Rx8 module built on 16Gb DRAM, rated at DDR5-6400. Other capacities and rank configurations use different PIDs, so match the part number to your configuration.
