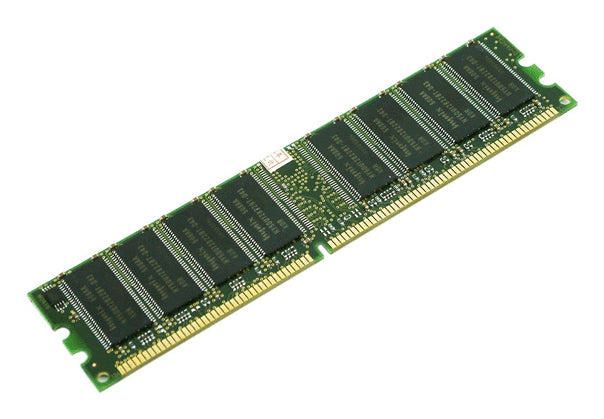

Cisco UCSX-MRX16G1RE3 | UCS X-Series 16GB DDR5-5600 RDIMM, 1Rx8 (16Gb)

SKU:UCSX-MRX16G1RE3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16GB DDR5-5600 registered DIMM is server memory for the Cisco UCS X-Series. It is the X-Series PID counterpart of UCS-MRX16G1RE3, which is used in C220 and C240 M7 rack servers. It suits memory expansion or replacement in UCS X210c M7 compute nodes running virtualisation, database and general data-centre workloads.

The module is a single-rank, x8 (1Rx8) RDIMM built on 16Gb DRAM, rated at DDR5-5600 MT/s (PC5-44800) and operating at 1.1V with on-die ECC. With Intel Xeon 5th Gen processors it runs at up to 5600 MT/s at 1 DIMM per channel and up to 4400 MT/s at 2 DIMMs per channel. With Intel Xeon 4th Gen processors it runs at the CPU memory controller maximum of 4000 to 4800 MT/s.

Each CPU supports 8 memory channels with up to 2 DIMMs per channel, and memory on every CPU socket must be configured identically. DDR5-4800 and DDR5-5600 PIDs cannot be mixed on Intel 4th Gen CPUs, and DDR5-5600 and DDR5-6400 PIDs cannot be mixed on Intel 5th Gen CPUs. It is not compatible with DDR3 or DDR4 memory.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DDR5 registered memory with on-die ECC for server reliability
- Low 1.1V operating voltage
- Up to 5600 MT/s at 1 DIMM per channel on Intel Xeon 5th Gen processors
- Operates on Intel Xeon 4th Gen CPUs at the CPU's maximum supported memory speed
- Single-rank 1Rx8 module built on 16Gb DRAM
- Cisco-qualified memory for UCS X-Series with Intersight Managed Mode support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSX-MRX16G1RE3
- Capacity: 16GB
- DIMM type: RDIMM (registered DDR5 with on-die ECC)
- Rated speed: DDR5-5600 MT/s (PC5-44800)
- Organisation / rank: 1Rx8 (single rank, x8 DRAM)
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Max speed with Intel 5th Gen Xeon CPUs: up to 5600 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Max speed with Intel 4th Gen Xeon CPUs: runs at the CPU memory controller maximum (4000 to 4800 MT/s)
- Supported compute node: UCS X210c M7
- DIMM slots: 8 channels per CPU, up to 2 DIMMs per channel (16 slots per CPU)
- RAS limitation: SDDC and ADDDC RAS features are unsupported with x8 DIMMs

FAQs

Q: Which servers does this memory work with?
A: It is the X-Series PID for the Cisco UCS X210c M7 compute node. The same 16GB DDR5-5600 module is sold as UCS-MRX16G1RE3 for C220 M7 and C240 M7 rack servers.

Q: What speed will it run at?
A: With Intel Xeon 5th Gen CPUs it runs at up to 5600 MT/s at 1 DIMM per channel and up to 4400 MT/s at 2 DIMMs per channel. With Intel Xeon 4th Gen CPUs it runs at the CPU's maximum memory speed of 4000 to 4800 MT/s.

Q: Can I mix it with other DDR5 DIMMs?
A: Not with a different speed PID. DDR5-4800 and DDR5-5600 PIDs cannot be mixed on Intel 4th Gen CPUs, and DDR5-5600 and DDR5-6400 PIDs cannot be mixed on Intel 5th Gen CPUs. Memory on every CPU socket must be configured identically.

Q: Does it support SDDC or ADDDC RAS features?
A: No. SDDC and ADDDC are unsupported with x8 DIMMs, which includes this 16GB 1Rx8 module.

Q: Is it compatible with DDR4 platforms?
A: No. This is a DDR5 module and is not compatible with DDR3 or DDR4 memory from earlier server generations.
