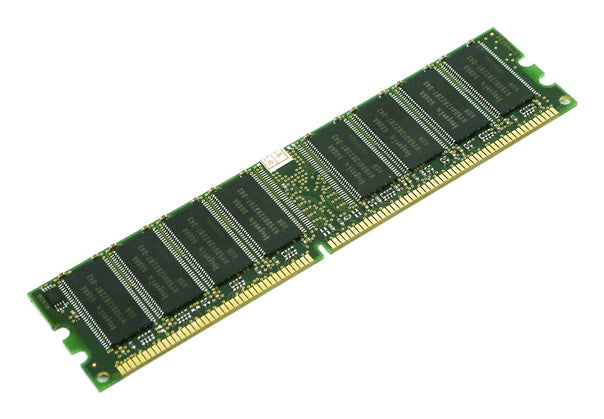

Cisco UCSX-MR256G8RE1 | UCS X-Series 256GB DDR5-4800 RDIMM Memory, 8Rx4
SKU:UCSX-MR256G8RE1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSX-MR256G8RE1 is a 256GB DDR5-4800 registered ECC memory module for the Cisco UCS X-Series. It is listed as a memory option for UCS X210c M7 compute nodes running 4th Gen Intel Xeon Scalable processors, and suits very high-capacity workloads such as in-memory databases, virtualisation and other large-memory deployments.
The module is an RDIMM in an 8Rx4 organisation, using 16Gb TSV DRAM and operating at 1.1V with on-die ECC on a 288-pin form factor. It is rated at 4800 MT/s. The effective speed depends on the installed CPU and the DIMMs per channel. At one DIMM per channel it runs at 4800 MT/s with Platinum 8 and Gold 6 series CPUs, 4400 MT/s with Gold 5 series and 4000 MT/s with Silver 4 and Bronze 3 series. At two DIMMs per channel it runs at 4400 MT/s on Platinum and Gold CPUs and 4000 MT/s on Silver and Bronze.
Each CPU provides eight memory channels with up to two DIMMs per channel, so a 2-socket X210c M7 takes up to 32 DIMMs. Populated entirely with 256GB modules, that gives a maximum of 8TB of system memory. For 4th Gen servers, use a single speed grade throughout, either DDR5-4800 or DDR5-5600, as mixing speed grades within a server is not supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- DDR5 registered DIMM with on-die ECC
- Low 1.1V operating voltage
- Highest-density DIMM option for Cisco UCS M7 servers
- Up to 8TB of memory on a 2-socket server with 32 x 256GB
- Listed in the Cisco UCS M7 Memory Guide for X210c M7 compute nodes
- 16Gb TSV DRAM in an 8Rx4 organisation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco PID (UCS X-Series): UCSX-MR256G8RE1
- Cisco PID (UCS C-Series): UCS-MR256G8RE1
- Description: 256GB DDR5-4800 RDIMM 8Rx4 (16Gb)
- Capacity: 256 GB
- Memory type: DDR5 RDIMM (registered, with on-die ECC)
- Rank organisation: 8Rx4 (octal-rank, x4)
- DRAM density: 16Gb (TSV)
- Rated speed: DDR5-4800 MT/s
- Operating voltage: 1.1 V
- Pin count: 288-pin
- Max speed at 1DPC: 4800 MT/s (Platinum 8 and Gold 6), 4400 MT/s (Gold 5), 4000 MT/s (Silver 4 and Bronze 3)
- Max speed at 2DPC: 4400 MT/s (Platinum 8, Gold 6, Gold 5), 4000 MT/s (Silver 4 and Bronze 3)
- Memory channels: eight per CPU, up to 2 DIMMs per channel
- Max DIMMs per server: 32 (2-socket X210c M7)
- Max system capacity: 8TB (32 x 256GB) on 2-socket servers
FAQs
Q: Which servers is this memory listed for?
A: It is listed for Cisco UCS X210c M7 compute nodes with 4th Gen Intel Xeon Scalable processors. The UCSX- part number identifies the UCS X-Series version of this module.
Q: What speed will it run at?
A: It is rated at DDR5-4800, but the effective speed is capped by the CPU memory controller. At one DIMM per channel it runs at 4800 MT/s on Platinum 8 and Gold 6 CPUs, and slower on lower CPU tiers.
Q: How much memory can a server hold with these modules?
A: A 2-socket X210c M7 has 32 DIMM slots, so populating every slot gives a maximum of 8TB.
Q: Can I mix it with DDR5-5600 memory?
A: No. For 4th Gen servers, use a single speed grade throughout the server, either DDR5-4800 or DDR5-5600, as mixing is not supported.
Q: Does it need a separate power supply or licence?
A: No. It operates at 1.1V from the server's DIMM slot and has no licensing requirement.
