Cisco

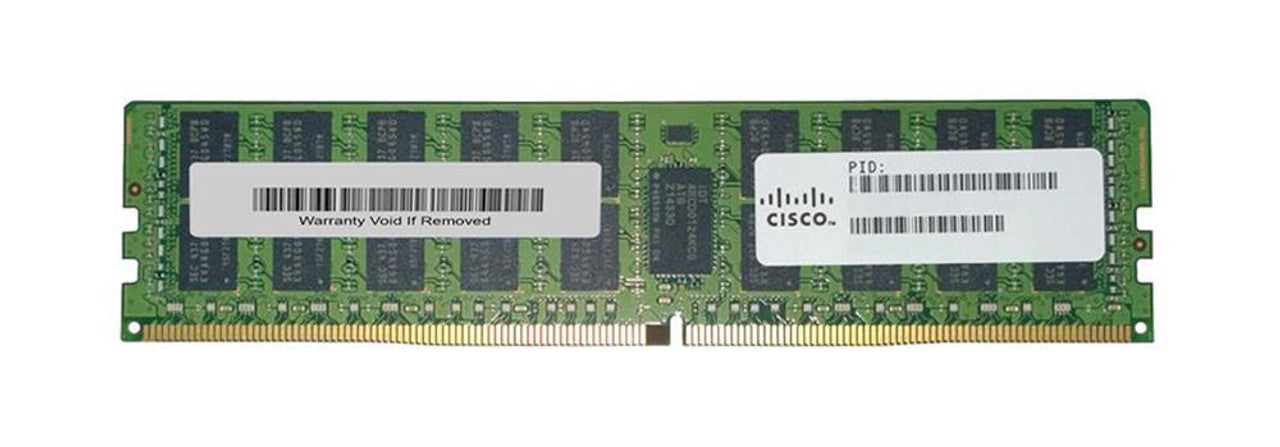

Cisco UCSX-MR128G4RE1 | UCS X-Series M7 128GB DDR5-4800 RDIMM, 4Rx4, 16Gb

SKU:UCSX-MR128G4RE1

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 128GB DDR5-4800 registered ECC DIMM is a memory option for the Cisco UCS X-Series M7 range. It is built for the X210c M7 and X410c M7 compute nodes and suits virtualisation, in-memory databases, AI and analytics, and other memory-intensive workloads on modular UCS X-Series systems.

The module is a quad-rank, x4 organisation (4Rx4) built on 16Gb DRAM density, running at DDR5-4800 MT/s (PC5-38400) at 1.1V. As a registered DIMM it includes on-die ECC for server-class reliability. UCSX in the part number marks the X-Series option part, MR denotes an RDIMM, and 128G is the capacity.

Each CPU supports 8 memory channels with up to 2 DIMMs per channel. These compute nodes are built around 4th Gen Intel Xeon Scalable processors. The suggested replacement part is UCSX-MR128G2RG3, a 128GB DDR5-5600 RDIMM in 2Rx4 with 32Gb DRAM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered DDR5 DIMM with on-die ECC for server reliability
- Quad-rank 128GB density for high-capacity memory configurations
- Qualified by Cisco for UCS X-Series M7 compute nodes
- Included in the Cisco Intersight supported memory lists
- Runs at 1.1V, with power drawn from the compute node and no separate supply needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 128GB
- DIMM type: RDIMM (registered DDR5 DIMM with on-die ECC)
- Speed: DDR5-4800 MT/s (PC5-38400)
- Rank and organisation: 4Rx4 (quad-rank, x4)
- DRAM density: 16Gb
- Voltage: 1.1V
- Pin count: 288-pin
- Supported platforms: Cisco UCS X210c M7 and X410c M7 compute nodes
- DIMM channels: 8 per CPU, up to 2 DIMMs per channel
- Maximum DIMMs per server: 32 (2-socket), 64 (4-socket)
- Part number naming: UCSX = X-Series, MR = RDIMM, 128G = capacity, 4R = quad-rank, E = DDR5 16Gb, 1 = 4800 MT/s
- Suggested replacement: UCSX-MR128G2RG3 (128GB DDR5-5600 RDIMM 2Rx4, 32Gb)

FAQs

Q: Which Cisco servers does this memory work with?
A: It is qualified for the Cisco UCS X210c M7 and X410c M7 compute nodes, which use 4th Gen Intel Xeon Scalable processors with DDR5-4800 memory.

Q: How many of these DIMMs can a server take?
A: Each CPU has 8 memory channels with up to 2 DIMMs per channel. That allows up to 32 DIMMs in a 2-socket server and 64 DIMMs in a 4-socket server.

Q: Can I mix this DIMM with DDR5-5600 modules?
A: The Cisco M7 Memory Guide sets the rules for mixing DDR5-4800 and DDR5-5600 DIMMs in 4th Gen Xeon servers. Check that guide before combining speeds in one system.

Q: Is there a newer equivalent of this DIMM?
A: Yes. UCSX-MR128G2RG3 is the 128GB DDR5-5600 RDIMM in 2Rx4 with 32Gb DRAM, and Cisco lists it as the replacement for this part.

Q: Does this memory need extra power or a licence?
A: No. It is a 1.1V DDR5 DIMM powered by the compute node and needs no separate power supply or licence.
