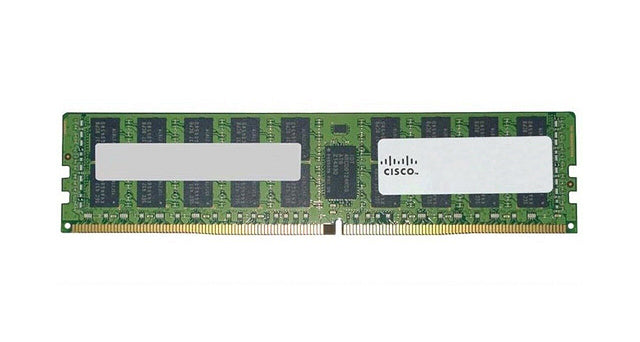

Cisco UCSX-MR128G2RG5 | UCS X-Series 128GB DDR5-6400 RDIMM, 2Rx4, 32Gb
SKU:UCSX-MR128G2RG5
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a 128GB DDR5-6400 registered ECC DIMM from the Cisco UCS X-Series memory range, supplied under the UCSX- PID prefix for X-Series compute nodes. It is the 128GB option in Cisco's M8 DDR5 memory lineup and suits memory-intensive workloads such as virtualisation, databases, AI and analytics, where high per-socket capacity matters.
The module is a dual-rank x4 (2Rx4) RDIMM built on 32Gb DRAM and runs at 1.1V. The x4 organisation supports the SDDC and ADDDC RAS features. On Intel Xeon 6 platforms it runs at up to 6400 MT/s with one DIMM per channel and up to 5200 MT/s with two DIMMs per channel. The UCSX- prefix is the X-Series variant, while the UCS- equivalent is used in C-Series rack servers.
It is listed for Intel M8 servers including the UCS C220 M8, C240 M8, X210c M8 and X410c M8, and for the AMD-based UCS X215c M8. It also appears on the UCS X210c M7 specification sheet. Populate DIMMs identically per CPU, filling the blue slots first. 32Gb DRAM-based DIMMs cannot be mixed with 16Gb or 24Gb DRAM-based DIMMs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Registered DDR5 DIMM with ECC for server workloads
- High-density 128GB module based on 32Gb DRAM
- x4 organisation supports SDDC and ADDDC RAS features
- UCSX- PID variant for Cisco UCS X-Series compute nodes
- Listed for Intel M8 and AMD M8 server platforms
- Replaces the earlier DDR5-5600 128GB DIMM with a faster DDR5-6400 module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco PID: UCSX-MR128G2RG5
- PID description: 128GB DDR5-6400 RDIMM 2Rx4 (32Gb)
- DIMM type: RDIMM (registered, ECC)
- Capacity: 128GB
- Rank and organisation: 2Rx4 (dual-rank, x4)
- DRAM density: 32Gb (DDR5)
- Rated speed: 6400 MT/s
- Operating voltage: 1.1V
- Intel Xeon 6 speed: up to 6400 MT/s at 1 DIMM per channel, up to 5200 MT/s at 2 DIMMs per channel
- Intel M8 platforms: 8 memory channels per CPU, up to 2 DIMMs per channel
- Allowed DIMM count (Intel M8): 8 or 16 per CPU
- Population order: 8 DIMMs per CPU in blue slots (A1-H1), 16 per CPU fills blue then black slots (A2-H2)
- AMD EPYC 4th Gen speed: up to 4800 MT/s at 1DPC
- AMD EPYC 5th Gen speed: up to 6000 MT/s at 1DPC
- Mixing: 32Gb DRAM DIMMs cannot be mixed with 16Gb or 24Gb DRAM-based DIMMs
- Mixing within a channel: 128GB 2Rx4 pairs only with another 128GB 2Rx4
FAQs
Q: Which Cisco servers is this DIMM listed for?
A: It is listed for the Intel M8 servers UCS C220 M8, C240 M8, X210c M8 and X410c M8, and for the AMD-based UCS X215c M8. It also appears on the UCS X210c M7 specification sheet.
Q: Can it be mixed with other DIMM types?
A: 32Gb DRAM-based DIMMs cannot be mixed with 16Gb or 24Gb DRAM-based DIMMs. Within a channel, a 128GB 2Rx4 DIMM can only be paired with another 128GB 2Rx4 DIMM.
Q: What speed does it run at?
A: It is rated at 6400 MT/s. On Intel Xeon 6 platforms it runs at up to 6400 MT/s with one DIMM per channel and up to 5200 MT/s with two DIMMs per channel.
Q: How should the DIMMs be populated?
A: Populate identically for each CPU. Eight DIMMs per CPU go in the blue slots (A1-H1), and sixteen per CPU fill the blue slots and then the black slots (A2-H2).
Q: What is the difference between the UCSX- and UCS- versions?
A: The UCSX- PID is the variant for UCS X-Series compute nodes, while the UCS-MR128G2RG5 PID is the equivalent for C-Series rack servers.
