Cisco

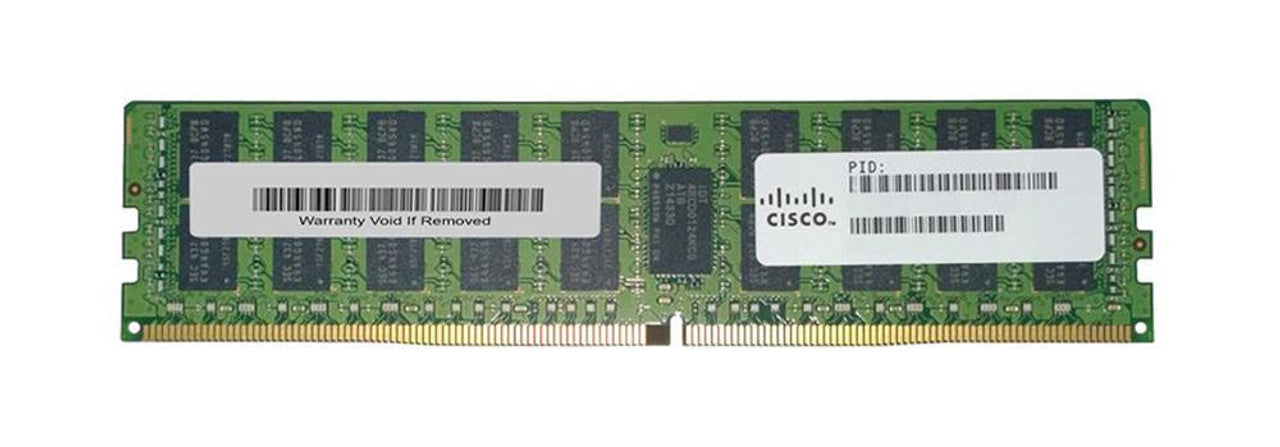

Cisco UCSX-MR-X32G1RW | UCS X210c M6 32GB DDR4-3200 RDIMM, SRx4, 16Gb

SKU:UCSX-MR-X32G1RW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR4-3200 registered ECC DIMM is a memory option for the Cisco UCS X-Series modular system, listed for the UCS X210c M6 compute node. It suits memory capacity upgrades and factory configuration in virtualisation, database and general data-centre workloads.

The module is a single-rank x4 design (SRx4) built from 16Gb DRAM, running at 3200 MHz and 1.2 V. It works with Advanced ECC and the optional memory mirroring configuration. The X210c M6 provides 32 DIMM slots in total, 16 per CPU across 8 channels per CPU with up to 2 DIMMs per channel, and supports up to 8 TB of memory when fitted with 256 GB DIMMs.

On the X210c M6, populate 1, 2, 4, 6, 8, 12 or 16 DIMMs per CPU, and configure DIMMs identically across CPUs. Any empty DIMM slot needs a DIMM blank (UCS-DIMM-BLK). This DIMM can be mixed with Intel Optane Persistent Memory in the designated slots on the X210c M6.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered ECC DDR4 operating at 3200 MHz and 1.2 V
- Single-rank x4 design using 16Gb DRAM
- Works with Advanced ECC
- Supports the optional memory mirroring configuration (N01-MMIRROR)
- Supported on 3rd Gen Intel Xeon Scalable (Ice Lake) UCS X210c M6 compute nodes
- Can be mixed with Intel Optane Persistent Memory in designated slots on the X210c M6

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-MR-X32G1RW
- Description: 32GB RDIMM SRx4 3200 (16Gb)
- Module type: Registered ECC DDR4 DIMM (RDIMM)
- Capacity: 32 GB
- Speed: 3200 MHz
- Voltage: 1.2 V
- Ranks per DIMM: 1 (SRx4)
- DRAM density: 16Gb
- Spare part PID: UCSX-MR-X32G1RW=
- Host platform (X210c M6): 32 DIMM slots in total, 16 per CPU
- Host platform (X210c M6): 8 memory channels per CPU, up to 2 DIMMs per channel
- Host platform maximum memory (X210c M6): up to 8 TB with 256 GB DIMMs
- Population rule (X210c M6): 1, 2, 4, 6, 8, 12 or 16 DIMMs per CPU
- Empty slots: populate with DIMM blank UCS-DIMM-BLK

FAQs

Q: Which compute node does this DIMM work with?
A: It is listed as an orderable DIMM for the Cisco UCS X210c M6 compute node, which uses 3rd Gen Intel Xeon Scalable (Ice Lake) processors.

Q: How many DIMMs can I install per CPU?
A: On the X210c M6, populate 1, 2, 4, 6, 8, 12 or 16 DIMMs per CPU. DIMMs must be configured identically across both CPUs.

Q: Do empty DIMM slots need anything fitted?
A: Yes. Any empty DIMM slot must be populated with a DIMM blank, part number UCS-DIMM-BLK.

Q: Can it be used with Intel Optane Persistent Memory?
A: Yes, on the X210c M6 this DIMM can be mixed with Intel Optane Persistent Memory (UCSX-MP-128GS-B0, UCSX-MP-256GS-B0 or UCSX-MP-512GS-B0), but PMem is supported only in the designated slots.

Q: Does it support memory mirroring?
A: The X210c M6 supports Advanced ECC and memory mirroring through the optional N01-MMIRROR configuration option.
