Cisco

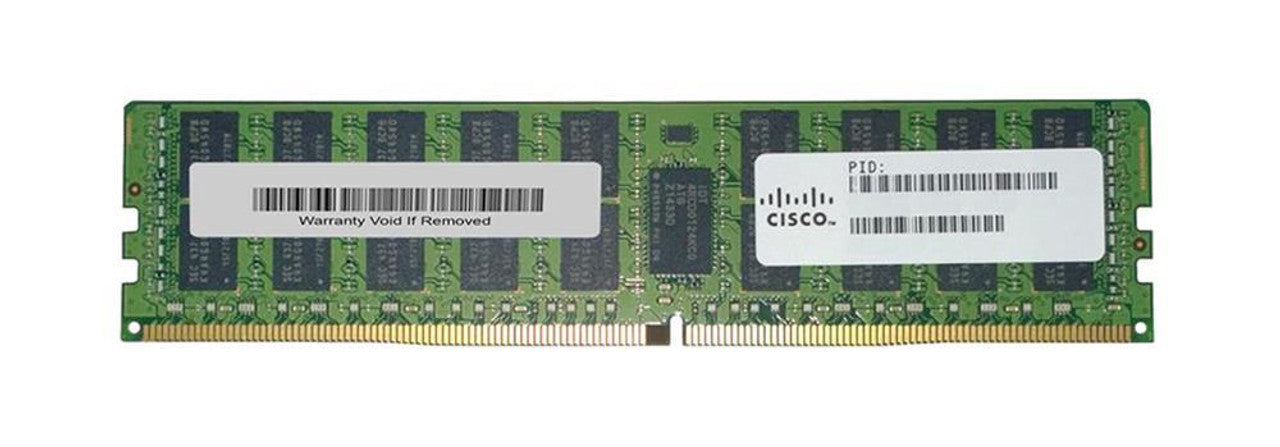

Cisco UCSX-MR-X16G1RW | UCS X-Series 16GB DDR4-3200 RDIMM ECC, 1Rx8

SKU:UCSX-MR-X16G1RW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16GB registered ECC DDR4-3200 DIMM is a memory option for the Cisco UCS X210c M6 Compute Node in the UCS X-Series modular system. It suits virtualisation, database and general enterprise workloads where a UCS X9508 chassis needs additional or replacement server memory.

The module is a single rank 1Rx8 (SRx4) RDIMM built from 8Gb DRAM and operates at 1.2 V. It runs at the speed of the installed 3rd Gen Intel Xeon Scalable (Ice Lake) processor, 3200, 2933 or 2666 MHz, with no speed reduction at two DIMMs per channel. No licence or subscription is required.

Each X210c M6 node has 32 DIMM slots, 16 per CPU. With one CPU the allowed DIMM counts are 1, 2, 4, 6, 8, 12 or 16, and with two CPUs they are 2, 4, 8, 12, 16, 24 or 32. 16, 32 and 64GB RDIMMs can be mixed when quantities are equal and balanced, but RDIMMs cannot be mixed with LRDIMMs. Any empty slot needs a DIMM blank (UCS-DIMM-BLK).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered ECC DDR4 memory for enterprise servers
- Supports Advanced ECC and optional memory mirroring on the UCS X210c M6
- Runs at the speed of the installed Ice Lake CPU (3200, 2933 or 2666 MHz) with no 2DPC speed penalty
- Can be mixed with other 16, 32 and 64 GB RDIMMs in balanced configurations
- Single rank design built from 8Gb DRAM
- Orderable as a factory-installed option or as a spare (UCSX-MR-X16G1RW=)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-MR-X16G1RW (spare: UCSX-MR-X16G1RW=)
- PID description: 16 GB RDIMM SRx4 3200 (8Gb)
- Capacity: 16 GB
- Memory type: DDR4 registered ECC DIMM (RDIMM)
- Clock speed: 3200 MHz
- Voltage: 1.2 V
- Ranks per DIMM: 1 (single rank, x4 organisation, 8Gb DRAM density)
- Speed with Ice Lake CPU at 3200 MHz: 3200 MHz at 1DPC and 2DPC
- Speed with Ice Lake CPU at 2933 MHz: 2933 MHz at 1DPC and 2DPC
- Speed with Ice Lake CPU at 2666 MHz: 2666 MHz at 1DPC and 2DPC
- Host platform: Cisco UCS X210c M6 Compute Node (UCS X9508 chassis)
- DIMM slots per X210c M6 node: 32 total (16 per CPU, 8 channels per CPU, 2 DIMMs per channel)
- Allowed DIMM count, 1 CPU: 1, 2, 4, 6, 8, 12 or 16
- Allowed DIMM count, 2 CPUs: 2, 4, 8, 12, 16, 24 or 32
- Blank slots: empty DIMM slots must be filled with a DIMM blank (UCS-DIMM-BLK)
- Memory mirroring: optional, ordered with N01-MMIRROR

FAQs

Q: Does this memory module need a licence?
A: No. It is a standard memory module and requires no licence or subscription.

Q: Which Cisco server does it work with?
A: It is listed as a memory option for the Cisco UCS X210c M6 Compute Node, which uses 3rd Gen Intel Xeon Scalable (Ice Lake) processors in the UCS X9508 chassis.

Q: Can I mix it with other DIMM sizes or types?
A: 16, 32 and 64 GB RDIMMs can be mixed if the quantities are equal and balanced across the CPUs. RDIMMs cannot be mixed with LRDIMMs in the same server.

Q: What speed will the memory run at?
A: It runs at the speed of the installed Ice Lake CPU, 3200, 2933 or 2666 MHz, at both one and two DIMMs per channel.

Q: How many DIMMs can I install?
A: With one CPU you can install 1, 2, 4, 6, 8, 12 or 16 DIMMs. With two CPUs the allowed counts are 2, 4, 8, 12, 16, 24 or 32. Any empty slot needs a DIMM blank (UCS-DIMM-BLK).
