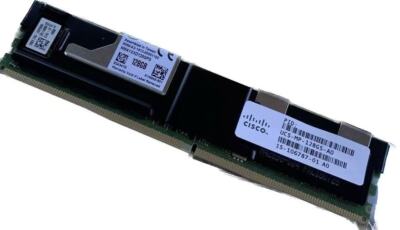

Cisco UCSX-MP-128GS-B0 | UCS X-Series 128GB 3200 MHz Optane Persistent Memory

SKU:UCSX-MP-128GS-B0

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS X-Series 128GB Intel Optane Persistent Memory module is a DIMM-format persistent memory option for Cisco UCS X-Series compute nodes. It is orderable on the UCS X210c M6 Compute Node and suits memory-intensive workloads such as in-memory databases, analytics and virtualisation, where large memory capacity per socket is needed on a modular system.

This module provides 128GB of capacity at 3200 MHz. It can run in App Direct mode, where it behaves as a persistent, storage-like device, or in Memory Mode, the factory default, where it acts as large-capacity volatile main memory with DRAM as a cache. The operating mode is selected at order time with the UCS-DCPMM-AD (App Direct) or UCS-DCPMM-MM (Memory Mode) option PIDs. No licence is required for the module itself.

It requires 3rd Gen Intel Xeon Scalable (Ice Lake) processors. All Ice Lake CPUs support persistent memory except the 4309Y, 4310, 4310T and 4316. Persistent memory is supported only in designated DIMM slots, and any empty DIMM slot needs a UCS-DIMM-BLK blank.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-volatile persistent memory in a DIMM form factor for in-memory databases and analytics
- App Direct Mode: persistent memory acts as a solid-state-disk-like storage device
- Memory Mode: persistent memory acts as large-capacity volatile main memory with DRAM as a cache
- Increases per-socket memory capacity beyond DRAM-only configurations
- Cisco-qualified module for UCS X-Series compute nodes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-MP-128GS-B0
- Description: Intel Optane Persistent Memory, 128GB, 3200 MHz
- Capacity per module: 128 GB
- Speed: 3200 MHz
- Module type: Intel Optane Persistent Memory (PMem)
- Operating modes: App Direct Mode (UCS-DCPMM-AD) and Memory Mode (UCS-DCPMM-MM, factory default)
- Supported CPUs: 3rd Gen Intel Xeon Scalable (Ice Lake), except 4309Y, 4310, 4310T and 4316
- Available PMem capacities on this platform: 128 GB, 256 GB, 512 GB
- Supported DRAM/PMem configurations per CPU socket: 4 DRAM + 4 PMem, 8 DRAM + 4 PMem, 8 DRAM + 1 PMem, 8 DRAM + 8 PMem
- Recommended DRAM to PMem ratio in Memory Mode: 1:4, 1:8 or 1:16
- DIMM sockets per CPU: 16 (8 memory channels, up to 2 DIMMs per channel)
- Maximum with 512 GB PMem on X210c M6: up to 6 TB per CPU (8 x 256 GB DRAM + 8 x 512 GB PMem)
- Memory mirroring: not supported when PMem is installed in mixed configurations
- Blank for empty DIMM slots: UCS-DIMM-BLK

FAQs

Q: Does this module need a licence?
A: No licence is required for the module itself. The operating mode is chosen at order time with the UCS-DCPMM-AD (App Direct) or UCS-DCPMM-MM (Memory Mode) option PIDs.

Q: Which compute node and CPUs does it work with?
A: It is listed for the Cisco UCS X210c M6 Compute Node, which uses 3rd Gen Intel Xeon Scalable (Ice Lake) CPUs. All Ice Lake CPUs support persistent memory except the 4309Y, 4310, 4310T and 4316.

Q: What is the difference between App Direct and Memory Mode?
A: In App Direct Mode the module acts as a persistent, storage-like device. In Memory Mode, the factory default, it acts as large-capacity volatile main memory with DRAM used as a cache.

Q: Can I install it in any DIMM slot?
A: No. Persistent memory is supported only in designated DIMM slots, and any empty DIMM slot needs a UCS-DIMM-BLK blank. Follow the UCS X210c M6 memory population rules.

Q: Can it be used with memory mirroring?
A: No. Memory mirroring is not allowed when persistent memory is installed in mixed DRAM and PMem configurations.
