Cisco UCSX-ML-V5Q50G | UCS VIC 15420 4x25G mLOM Adapter, Secure Boot, X210c M6
SKU:UCSX-ML-V5Q50G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

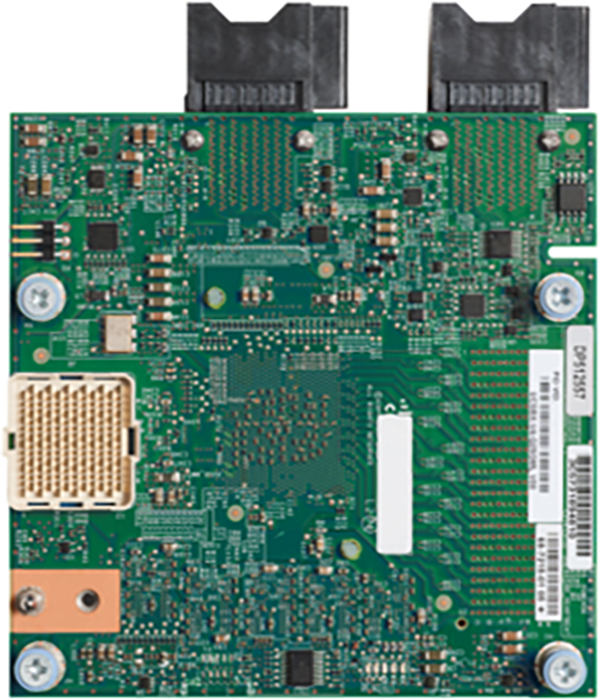

The Cisco UCS VIC 15420 is a 4x25-Gbps Ethernet and FCoE modular LAN-on-motherboard (mLOM) virtual interface card from the UCS VIC 15000 Series. It is built for Cisco UCS X-Series compute nodes, and this SKU is the version for the UCS X210c M6 compute node. It presents PCIe-compliant NICs and HBAs to the host, configured dynamically by policy, which suits virtualised, HPC, big data, high-bandwidth storage and NVMe over Fabrics workloads.
The card provides four 25G-KR connections to the X-Series intelligent fabric modules and a PCIe Gen4 x16 host interface. It supports up to 512 virtual adapters and interfaces, SR-IOV, RoCEv2, NVMe/RoCEv2, NVMe/FC and NVMe/TCP, plus VXLAN, NVGRE and GENEVE offloads. VIC secure boot uses a silicon root of trust to verify the card hardware and firmware at server boot. This 4x25G mLOM variant for the X210c M6 differs from UCSX-ML-V5Q50G-D, which covers the X210c M7, X410c M7 and X215c M8.
It works with FI 6536, FI 64108 and FI 6454 fabric interconnects and the X9108-IFM-25G and X9108-IFM-100G modules through the UCS X9508 chassis. It can be paired with the VIC 15422 mezzanine card using the UCSX-V5-BRIDGE connector, and is managed through Cisco Intersight or UCS Manager.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Stateless and agile: NIC/HBA personality, MAC/WWN, QoS and failover set by service profile at boot
- Network interface virtualisation: each PCIe interface is associated with an interface on the fabric interconnect
- Hardware classification engine with VXLAN, NVGRE and GENEVE stateless offloads
- Low-latency kernel bypass through usNIC and DPDK
- VIC secure boot verifies the integrity of VIC hardware and firmware at server boot
- Hardware-based fabric failover for a redundant path to the fabric interconnect
- Lossless Ethernet using Priority Flow Control
- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network
- RoCEv2 support, including NVMe/RoCEv2 on RHEL and ESXi and SMB Direct on Windows Server
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCSX-ML-V5Q50G
- Description: UCS VIC 15420 4x25G mLOM for Cisco UCS X210c-M6 Compute Node
- Form factor: mLOM (PCIe 4.0 x16 form factor)
- Ports and speed: 4 x 25-Gbps Ethernet/FCoE (25G per port with X9108-IFM-25G and X9108-IFM-100G)
- Host interface: PCIe Gen4 x16 towards CPU1
- Fabric connectivity: up to 50Gbps (2 x 25Gbps) to each chassis IFM, 100Gbps per VIC
- Components: Cisco UCS custom ASIC
- Virtual interfaces: 512 virtual adapters and interfaces
- Standards: IEEE 802.3x, 802.1Q, 802.1p, 802.1Qaz, 802.1Qbb, 802.3by, T11 FCoE, prestandard 802.1BR
- Jumbo frames: up to 9KB
- Offloads: VXLAN, NVGRE, GENEVE; usNIC, DPDK, SR-IOV, NetQueue, VMQ/VMMQ
- Storage protocols: FCoE, iSCSI/iSCSI boot, NVMe/RoCEv2, NVMe/FC, NVMe/TCP
- Performance: over 900,000 IOPS; usNIC latency as low as 1 microsecond back-to-back
- Security: VIC secure boot (from release 4.3(1)), silicon root-of-trust FPGA, ACT2 anti-counterfeit
- Management: Cisco Intersight (IMM) or UCS Manager; IMM release 4.3(1) or later recommended
- Supported fabric interconnects and IFMs: FI 6536, FI 64108, FI 6454, UCSX-I-9108-25G, UCSX-I-9108-100G
- Mezzanine pairing: UCSX-V5-BRIDGE connects the 15420 mLOM to the VIC 15422 mezzanine in an X210c M6
FAQs
Q: Which compute node does UCSX-ML-V5Q50G fit?
A: It fits the mLOM slot of the Cisco UCS X210c M6 compute node. The UCSX-ML-V5Q50G-D variant covers the X210c M7, X410c M7 and X215c M8.
Q: Does the VIC 15420 need a licence?
A: No licence is listed for the adapter itself. Management through Cisco Intersight or UCS Manager is licensed separately.
Q: How is the card powered?
A: It is powered from the mLOM slot of the X210c compute node and needs no separate power supply.
Q: What fabric hardware does it work with?
A: It works with FI 6536, FI 64108 and FI 6454 fabric interconnects and the X9108-IFM-25G and X9108-IFM-100G intelligent fabric modules through the UCS X9508 chassis.
Q: Can it be paired with a mezzanine card?
A: Yes. The UCSX-V5-BRIDGE connector links the VIC 15420 mLOM to the VIC 15422 mezzanine (UCSX-ME-V5Q50G) in an X210c M6.
Q: Which optics are supported with the VIC 15000 series?
A: Supported SFP+ and SFP28 optics include the Cisco SFP-25G-SR-S and SFP-10G-SR.
