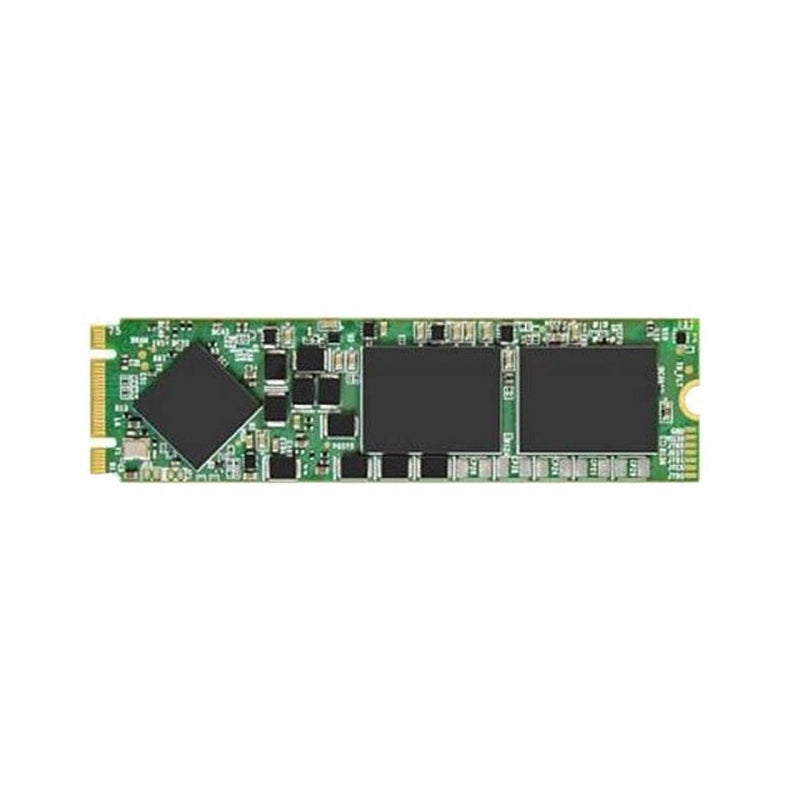

Cisco UCSX-M2240OA1V | UCS X-Series 240GB M.2 SATA SSD, Solidigm S4520
SKU:UCSX-M2240OA1V
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 240GB enterprise-class M.2 SATA SSD is built on the Solidigm S4520 and is designed as a boot drive for Cisco UCS X-Series modular compute nodes. It is intended for operating system or hypervisor boot duty, usually installed as a mirrored pair, and is recommended for boot-only use so the OS stays separate from front-loaded data drives.
The drive uses the SATA protocol (6Gb/s) in the M.2 form factor, with a capacity of 240GB. Up to two matching M.2 drives are installed on the front-panel boot-optimised M.2 RAID controller (UCSX-M2I-HWRD-FPS), which supports RAID 1 and JBOD. Boot is UEFI only, and legacy boot is not supported. Within the range, the 480GB sibling is UCSX-M2480OA1V.
It is listed in the Cisco UCS X210c M8 and X215c M8 compute node specifications and is managed and monitored through Cisco Intersight Managed Mode. It is not used with the M.2 NVMe pass-through module (UCSX-M2-PT-FPN), which replaces the RAID controller. Hot-plug replacement is not supported, so the compute node must be powered off before changing drives.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise-grade Solidigm S4520-based M.2 SATA boot SSD
- Supports hardware RAID 1 mirroring across two matching M.2 SATA drives via the boot-optimised RAID controller
- Managed and monitored through Cisco Intersight Managed Mode
- Recommended for boot-only duty, keeping the OS separate from front-loaded data drives
- Designed for Cisco UCS X-Series modular compute nodes
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-M2240OA1V
- Description: 240GB M.2 Boot Solidigm S4520 SATA 1X SSD
- Capacity: 240 GB
- Form factor: M.2
- Protocol: SATA (6Gb/s)
- Controller base: Solidigm S4520 (1X)
- Drives per boot-optimised RAID controller: up to 2 matching M.2 drives
- Supported RAID modes (UCSX-M2I-HWRD-FPS): RAID 1 and JBOD
- Boot mode: UEFI only, legacy boot not supported
- Hot-plug replacement: not supported, compute node must be powered off
- Management: Cisco Intersight Managed Mode
FAQs
Q: Which compute nodes does it work with?
A: It is listed in the Cisco UCS X210c M8 and UCS X215c M8 compute node specifications. It installs on the front-panel boot-optimised M.2 RAID controller UCSX-M2I-HWRD-FPS.
Q: Can it be used with the M.2 NVMe pass-through module?
A: No. The NVMe pass-through module (UCSX-M2-PT-FPN) replaces the RAID controller. This SATA drive is used with the boot-optimised RAID controller.
Q: Do I need to install two drives?
A: The controller takes up to two matching M.2 drives. Two matching drives are required to mirror them in RAID 1.
Q: Does it support legacy BIOS boot?
A: No. Boot is UEFI only and legacy boot is not supported.
Q: Can I replace the drive while the node is running?
A: No. Hot-plug replacement is not supported, so the compute node must be powered off before the drive is changed.
Q: How does it differ from UCSX-M2480OA1V?
A: Both use the Solidigm S4520 in the M.2 SATA format. This SKU is 240GB and UCSX-M2480OA1V is 480GB.
