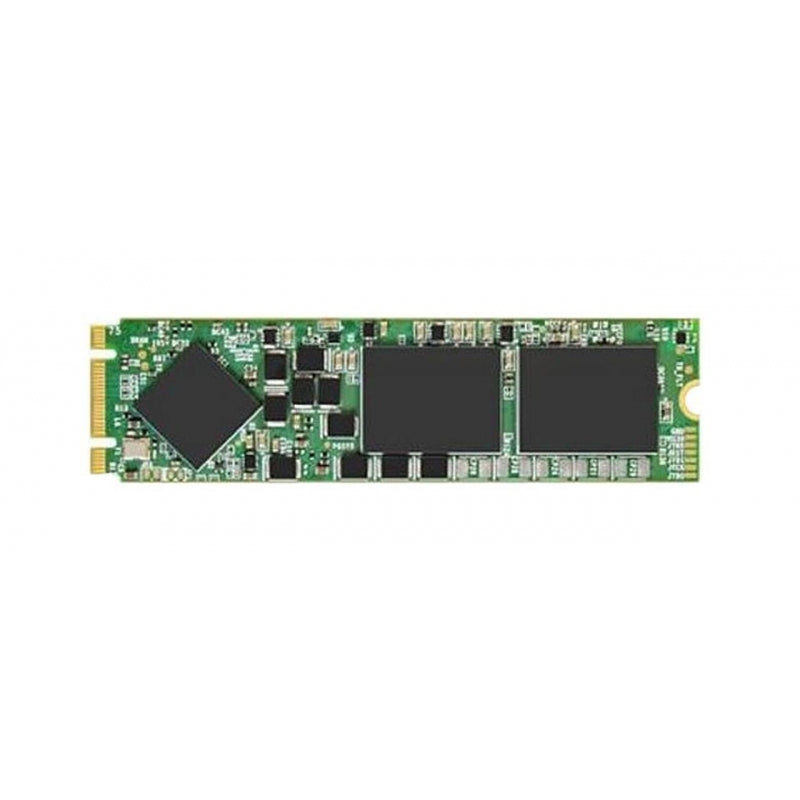

Cisco UCSX-M2-PT-FPN | UCS X-Series Front Panel, M.2 NVMe Pass-Through
SKU:UCSX-M2-PT-FPN
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This front panel module for the Cisco UCS X-Series modular system adds an M.2 NVMe pass-through controller to a compute node. It suits NVMe-based boot or local storage on UCS X-Series nodes in the X9508 modular chassis, where the faster NVMe M.2 interface is preferred over SATA M.2 with hardware RAID.
The controller is a pass-through design with no RAID layer and supports up to two 80 mm M.2 NVMe modules. It installs in the compute node front mezzanine slot and draws power from the host node. It is documented in the UCS X210c M7 compute node specification. The supported modules are UCSX-NVM2-400GB (400GB) and UCSX-NVM2-960GB (960GB).
The alternative for SATA M.2 boot is the UCSX-M2-HWRD-FPS boot-optimised hardware RAID controller. This part is the NVMe pass-through option for builds that want direct access to the drives.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Direct NVMe pass-through of M.2 boot or local storage drives, without a RAID layer
- Supports two M.2 NVMe modules for flexible boot and local storage
- Optional alternative to the SATA boot-optimised M.2 RAID controller UCSX-M2-HWRD-FPS
- Fits the UCS X-Series modular compute node front mezzanine slot
- Powered from the host compute node, no separate power supply needed
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-M2-PT-FPN
- Description: UCSX Front Panel w/M.2 Pass Through Controller for NVMe Drives
- Controller type: M.2 pass-through (NVMe), no RAID
- Storage supported: up to 2 x 80 mm M.2 NVMe modules
- Compatible modules: UCSX-NVM2-400GB (400GB) and UCSX-NVM2-960GB (960GB)
- Host slot: front mezzanine slot of the compute node
- Documented for: Cisco UCS X210c M7 compute node (NVMe Boot option)
- Power: supplied by the host compute node
- SATA M.2 alternative: UCSX-M2-HWRD-FPS (boot-optimised hardware RAID)
FAQs
Q: Does this controller provide RAID?
A: No. It is a pass-through controller, so each M.2 NVMe module is presented directly to the host. For hardware RAID on SATA M.2 modules, use UCSX-M2-HWRD-FPS.
Q: Which M.2 modules does it work with?
A: It works with the Cisco M.2 NVMe modules UCSX-NVM2-400GB (400GB) and UCSX-NVM2-960GB (960GB), with up to two 80 mm modules supported.
Q: How does it differ from UCSX-M2-HWRD-FPS?
A: UCSX-M2-PT-FPN is an NVMe pass-through controller with no RAID. UCSX-M2-HWRD-FPS is the SATA M.2 boot-optimised hardware RAID controller.
Q: Which compute node is it documented for?
A: It is listed in the Cisco UCS X210c M7 compute node specification as the optional NVMe Boot item, and installs in the front mezzanine slot.
Q: Does it need its own power supply?
A: No. It is powered from the host compute node.
