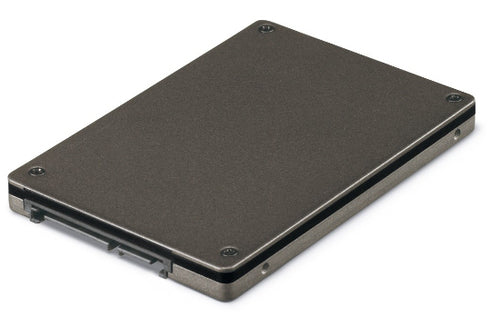

Cisco UCSX-M2-I240GB-D | UCS X-Series 240GB M.2 SATA Boot SSD, Intel
SKU:UCSX-M2-I240GB-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 240GB Intel M.2 SATA boot SSD is built for Cisco UCS X-Series compute nodes, including the X210c and X215c. It is intended as a boot and operating system drive, and is typically deployed as a mirrored pair on the Boot-Optimized M.2 RAID controller.
The drive uses the M.2 2280 form factor with a SATA 6Gb/s interface. The boot-optimized controller accepts one or two matching M.2 SATA SSDs and supports RAID 1 mirroring and JBOD. It is powered from the compute node through the controller, so no separate power supply is needed. This is the 240GB Intel variant, distinct from the Micron 240GB model and the 480GB and 960GB siblings.
It works with the Boot-Optimized M.2 RAID controller, UCSX-M2-HWRD-FPS on the X215c M8 and UCS-M2-HWRAID on the X210c M6. The controller runs in UEFI boot mode only, supports VMware, Windows and Linux, and can be configured and monitored through Cisco Intersight Managed Mode.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise M.2 SATA boot storage for UCS X-Series compute nodes
- Hardware RAID 1 mirroring when paired with a second matching M.2 SSD on the boot-optimized controller
- JBOD mode supported on the boot-optimized controller
- Volume configuration and monitoring through Cisco Intersight Managed Mode
- Supported with VMware, Windows and Linux operating systems
- Compact M.2 2280 form factor that frees up front drive bays
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-M2-I240GB-D
- Description: 240GB M.2 Boot SATA Intel SSD
- Capacity: 240 GB
- Form factor: M.2 2280
- Interface: SATA 6Gb/s
- Drives per boot-optimized controller: up to 2 matching M.2 SATA SSDs
- RAID support: RAID 1 and JBOD via the boot-optimized RAID controller
- Supported operating systems: VMware, Windows, Linux
- Boot mode: UEFI only (Legacy boot not supported)
- Hot-plug: not supported, compute node must be powered off to replace
- Recommended use: boot-only device
- Management: Cisco Intersight Managed Mode (IMM)
- Power: supplied by the compute node via the RAID controller
FAQs
Q: Which compute nodes does this SSD work with?
A: It is used with Cisco UCS X-Series compute nodes such as the X210c and X215c, installed on the Boot-Optimized M.2 RAID controller.
Q: Which RAID controller does it plug into?
A: It fits the Boot-Optimized M.2 RAID controller, UCSX-M2-HWRD-FPS on the X215c M8 and UCS-M2-HWRAID on the X210c M6.
Q: Can I mirror two of these drives?
A: Yes. The controller supports one or two matching M.2 SATA SSDs, and a matching pair can be configured as RAID 1.
Q: Is this drive hot-pluggable?
A: No. The compute node must be powered off before the M.2 SSD is replaced.
Q: Does it support Legacy boot?
A: No. The boot-optimized RAID controller supports UEFI boot mode only.
Q: How does it differ from the other M.2 boot SSD options?
A: This is the 240GB Intel SSD variant. Related options include UCSX-M2-240G-D (Micron), UCSX-M2-480G-D (480GB) and UCSX-M2-960G-D (960GB).
