Cisco UCSX-M2-I240GB | UCS X-Series 240GB M.2 SATA Boot SSD, Intel
SKU:UCSX-M2-I240GB
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

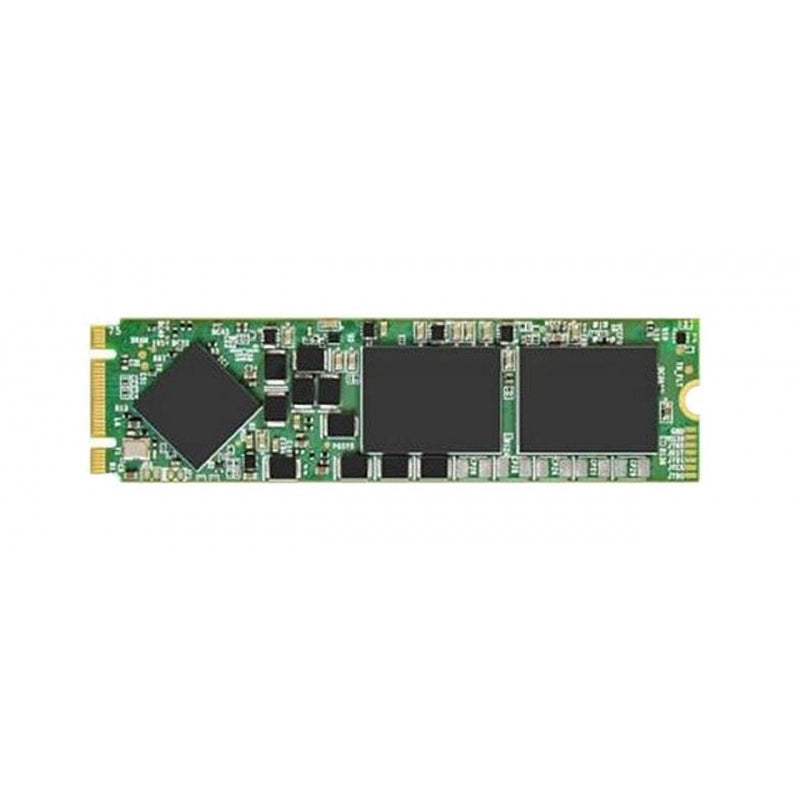

The UCSX-M2-I240GB is a 240GB Intel M.2 SATA SSD supplied by Cisco as a storage module for UCS X-Series compute nodes. It is intended as a dedicated boot or operating system drive, leaving the front drive bays free for data. It suits hypervisor and OS installs such as VMware, Windows and Linux on the X210c M6 Compute Node.
The drive uses a SATA 6Gb/s interface in the M.2 2280 form factor (80 mm) and plugs into the Cisco Boot-Optimized M.2 RAID controller, UCS-M2-HWRAID. Through that controller two drives can run in RAID 1 mirroring or in JBOD mode. Each compute node takes two M.2 SATA cards. The drive is powered through the controller, so no separate power connection is needed. Boot mode is UEFI only, and volume configuration and monitoring are available through Cisco IMM and Intersight.
The UCSX-M2-I240GB is listed as an M.2 SATA storage module for the Cisco UCS X210c M6 Compute Node. For RAID 1, pair it with a second identical SSD. The compute node must be powered off before the drive is replaced, as hot-plug is not supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dedicated boot or OS drive that leaves the front drive bays free for data
- Hardware RAID 1 mirroring when two identical M.2 SSDs are paired on the UCS-M2-HWRAID controller
- JBOD mode, where the two drives need not be identical
- Supports VMware, Windows and Linux operating systems through the Boot-Optimized RAID controller
- Volume configuration and monitoring through Cisco IMM and Intersight
- Powered through the compute node, with no separate power connection
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-M2-I240GB
- Description: 240GB M.2 Boot SATA Intel SSD
- Drive type: SATA
- Capacity: 240 GB
- Form factor: M.2, 2280 (80 mm)
- Interface speed: SATA 6Gb/s (SATA 3.0)
- Host controller: Cisco Boot-Optimized M.2 RAID controller (UCS-M2-HWRAID)
- RAID support via controller: RAID 1 and JBOD
- Boot mode: UEFI only, Legacy boot not supported
- Hot-plug: Not supported, compute node must be powered off to replace
- Management: Cisco IMM and Intersight for volume configuration and monitoring
- Capacity per node: dual M.2 SATA cards per compute node
- Spare part PID: UCSX-M2-I240GB=
FAQs
Q: Which compute node does this M.2 SSD work with?
A: It is listed as an M.2 SATA storage module for the Cisco UCS X210c M6 Compute Node, plugging into the UCS-M2-HWRAID Boot-Optimized M.2 RAID controller.
Q: Can I run two of these drives in RAID 1?
A: Yes. Pair two identical SSDs on the UCS-M2-HWRAID controller for hardware RAID 1 mirroring. JBOD mode is also supported, and in that mode the drives do not need to match.
Q: Does it need a licence?
A: The drive itself needs no licence. Volume management through Cisco Intersight and IMM follows the Intersight licensing tier in use.
Q: Can it be replaced while the server is running?
A: No. Hot-plug is not supported, so the compute node must be powered off before the drive is replaced.
Q: Does it support Legacy boot?
A: No. Boot from this drive is UEFI only, and Legacy boot is not supported.
