Cisco UCSX-M2-960GB-D | UCS X-Series 960GB M.2 SATA SSD, Micron G1
SKU:UCSX-M2-960GB-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

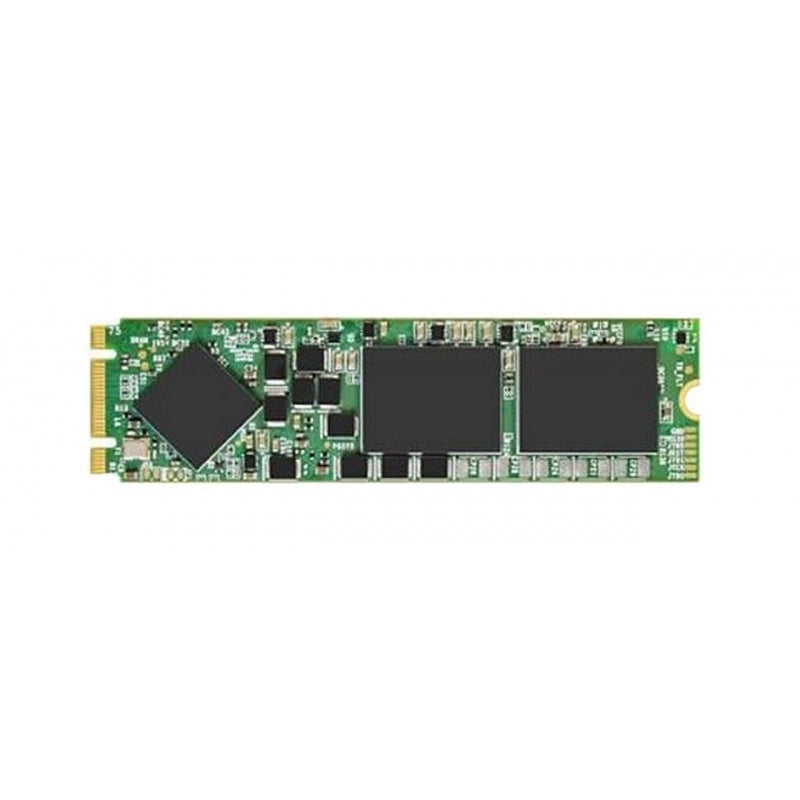

This 960GB M.2 SATA solid state drive uses Micron G1 flash and is designed as boot media for Cisco UCS X-Series compute nodes. It is intended as a boot-only device, either as a single drive or as a mirrored pair, rather than as general-purpose data storage.
The drive offers 960GB of capacity over a 6Gb/s SATA interface in an M.2 form factor. It fits the Cisco UCS M.2 boot-optimized RAID controller (UCS-M2-HWRAID), which provides hardware RAID 1 mirroring or JBOD. For RAID 1, two identical drives are required. Boot is UEFI only, and the drive is not hot-pluggable, so the compute node must be powered off before it is replaced.
The controller is documented for Cisco UCS X210c-series compute nodes and supports VMware, Windows and Linux. RAID volumes can be configured and monitored through Cisco Intersight Managed Mode. The drive draws its power from the compute node through the RAID controller, so no separate power supply is needed.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Boot-optimised M.2 SATA storage for Cisco UCS X-Series compute nodes
- Pairs of identical drives can be mirrored in RAID 1 through the UCS-M2-HWRAID controller
- JBOD mode available through the boot-optimized RAID controller
- RAID volumes and drives can be configured and monitored through Cisco Intersight Managed Mode
- Supported by the boot-optimized RAID controller on VMware, Windows and Linux
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 960 GB
- Drive type: SATA M.2
- Interface speed: SATA 6 Gb/s
- SSD: Micron G1
- Controller: Cisco Boot-Optimized M.2 RAID Controller (UCS-M2-HWRAID)
- RAID support (via UCS-M2-HWRAID): RAID 1 and JBOD
- Boot mode: UEFI only
- Hot-plug: Not supported, compute node must be powered off to replace
- Recommended use: Boot-only device
- Power: Supplied by the compute node via the M.2 RAID controller
FAQs
Q: Which controller does this SSD work with?
A: It plugs into the Cisco UCS-M2-HWRAID boot-optimized M.2 RAID controller, which supports 240GB, 480GB and 960GB M.2 SATA SSDs.
Q: Can I mirror two of these drives in RAID 1?
A: Yes. The UCS-M2-HWRAID controller supports RAID 1 and JBOD, and RAID 1 requires two identical drives.
Q: Which compute nodes is it used in?
A: It is documented for Cisco UCS X210c-series compute nodes, such as the X210c M6, through the UCS-M2-HWRAID controller.
Q: Can I replace the drive while the server is running?
A: No. The drive is not hot-pluggable, so the compute node must be powered off before it is replaced.
Q: Does it support legacy BIOS boot?
A: No. The boot-optimized RAID controller supports UEFI boot only.
Q: Can I use it for general data storage?
A: It is intended as a boot-only device and is not recommended as general-purpose data storage.
