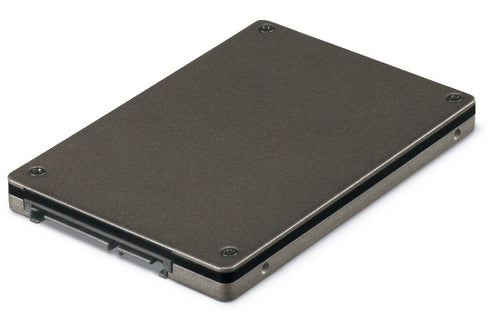

Cisco UCSX-M2-240GB-D | UCS X-Series 240GB M.2 SATA SSD, Micron G1
SKU:UCSX-M2-240GB-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSX-M2-240GB-D is a 240GB M.2 SATA solid state drive from Micron (G1), supplied by Cisco as a boot and operating system drive for UCS X-Series compute nodes. It is a SATA device rather than NVMe, and is intended for boot duties rather than bulk data storage.
This 240GB module uses the SATA 6Gb/s interface in the M.2 form factor. It installs into the Boot-Optimized M.2 RAID controller (UCS-M2-HWRAID) on the compute node motherboard, with up to two M.2 SATA modules per node. The controller supports RAID 1 and JBOD, so two identical modules can be mirrored in hardware RAID 1 for a resilient boot volume. Booting is UEFI only, and the compute node must be powered off to replace a module.
It works with VMware, Windows and Linux on the RAID controller. Cisco IMM can configure volumes and monitor the controller and the installed SATA M.2 drives.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Intended as a boot-only device for UCS X-Series compute nodes
- Two identical modules can be mirrored in hardware RAID 1 on the Boot-Optimized M.2 controller
- Cisco IMM can configure volumes and monitor the controller and installed SATA M.2 drives
- SATA M.2 drives use the Boot-Optimized RAID controller rather than front drive bays
- Micron G1 SSD in the M.2 form factor with a SATA 6Gb/s interface
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-M2-240GB-D
- Description: 240GB 2.5in M.2 SATA Micron G1 SSD
- Capacity: 240 GB
- Drive type: M.2
- Interface: SATA 6Gb/s
- NVMe: No
- Installs into: Boot-Optimized M.2 RAID controller (UCS-M2-HWRAID) on the compute node motherboard
- RAID support (via UCS-M2-HWRAID): RAID 1 and JBOD
- Boot mode: UEFI only (legacy boot not supported)
- Hot-plug: Not supported, the compute node must be powered off to replace
- Supported OS (on the RAID controller): VMware, Windows, Linux
- Maximum per node: Up to two M.2 SATA modules
FAQs
Q: Is this an NVMe drive?
A: No. The UCSX-M2-240GB-D is an M.2 SATA drive using the SATA 6Gb/s interface, not NVMe.
Q: What does it install into?
A: It installs into the Boot-Optimized M.2 RAID controller (UCS-M2-HWRAID) on the UCS X-Series compute node motherboard. Up to two M.2 SATA modules are supported per node.
Q: Which RAID modes are supported?
A: The UCS-M2-HWRAID controller supports RAID 1 and JBOD. Two identical modules can be mirrored in RAID 1 for a redundant boot volume.
Q: Can I hot-swap it?
A: No. Hot-plug is not supported, so the compute node must be powered off before the module is replaced.
Q: Does it support legacy BIOS boot?
A: No. Boot mode is UEFI only. Legacy boot is not supported.
