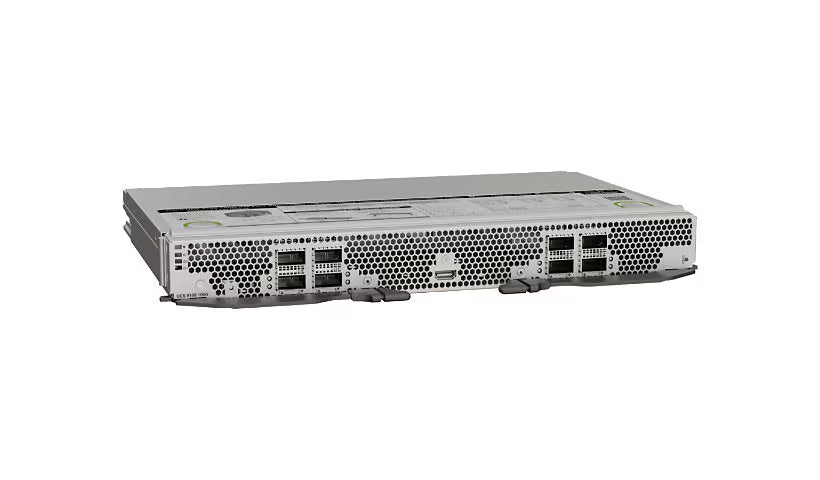

Cisco UCSX-I9108-100G-D | UCS 9108 100G IFM Fabric Module, 8x QSFP28
SKU:UCSX-I9108-100G-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 9108 100G Intelligent Fabric Module (IFM) is part of the Cisco UCS X-Series Modular System. It plugs into the rear of a UCS X9508 chassis and links the compute nodes to a UCS 6500 or 6600 series Fabric Interconnect. It works as a fabric extender, so the chassis needs no switching of its own. It also manages the chassis fans, power supplies and blades together with the Fabric Interconnect. It suits data centre, virtualised and high-density workload deployments that need a lossless, converged LAN and SAN fabric.
This 100G variant has 8 fixed 100GbE QSFP28 uplinks to the Fabric Interconnect, giving 800 Gb/s of network data path bandwidth per module and up to 3.2 Tbps of total chassis I/O. Internally it provides 8 x 100G or 32 x 25G connections, or a mix, depending on the VIC 15000 or 14000 series card in each compute node. Latency is under 1 microsecond. Each module draws 237 W from the chassis, and IFMs are installed in redundant pairs.
Supported 100G optics include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD, QSFP-100G-SM-SR, QSFP-100G-SL4, QSFP-100G-DR-S, QSFP-100G-FR-S and QSFP-100G-SR1.2. QSFP-100G-CU1M to CU5M copper cables and QSFP-100G-AOC1M to AOC30M active optical cables are also supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Brings the unified fabric into the blade enclosure, simplifying cabling, diagnostics and management
- Fabric extender architecture with no switching in the chassis, so UCS scales across many chassis without extra switches
- Manages the chassis environment (power supplies, fans, blades) with the Fabric Interconnect, so no separate chassis management module is needed
- Lossless, deterministic converged fabric carrying LAN and SAN (FCoE) traffic
- Priority Flow Control (PFC) and systemwide QoS bandwidth management
- Carries compute node KVM, Serial over LAN and IPMI data for monitoring and management
- Installed in redundant pairs for failover
- Managed through Cisco Intersight as a single, highly available management domain
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-I9108-100G-D
- Uplinks: 8 x 100GbE QSFP28 to Fabric Interconnect
- Network data path bandwidth: 800 Gb/s (8 x 100 Gb/s)
- Total chassis I/O per IFM: 3.2 Tbps
- Internal connectivity: 8 x 100G or 32 x 25G, or a mix, depending on the VIC 15000/14000 series in the compute node
- Server data path bandwidth: 800 Gb/s for 8 compute nodes
- Per compute node: 1 x 100 Gb/s or 4 x 25 Gb/s lanes
- Connectivity per chassis: 1600G per X9508 chassis (2 IFMs)
- Latency: less than 1 microsecond
- Fibre Channel: FCoE supported
- CPU complex: Intel Denverton, 4 core, 2.2 GHz, 15W
- Memory: DDR4, 8GB max at 2133 MHz
- Storage: one M.2 mini storage module slot
- Fans: three dual-rotor on-board fans, front-to-rear airflow
- Power consumption: 237 W, supplied by chassis
- Management: Cisco Intersight, as an extension of the Fabric Interconnect
- Dimensions (H x W x D): 4.2 x 37.9 x 29.9 cm
- Weight: 3.82 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 4000 m
FAQs
Q: Does this module need a licence?
A: No licence is listed for the IFM. It is managed as an extension of the Fabric Interconnect through Cisco Intersight.
Q: Which Fabric Interconnects does it connect to?
A: It works with Cisco UCS 6500 and 6600 series Fabric Interconnects, using its 8 x 100G QSFP28 uplinks.
Q: Which chassis does it fit?
A: It is designed for the UCS X9508 chassis, which uses two identical IFMs. It cannot be mixed with an integrated Fabric Interconnect in the same chassis.
Q: How much power does it draw?
A: Each IFM is powered by the X9508 chassis and consumes 237 W. Its on-board fans run from 54VDC/48VDC.
Q: Which 100G optics and cables work with the uplinks?
A: Supported options include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD, QSFP-100G-SM-SR, QSFP-100G-SL4, QSFP-100G-DR-S, QSFP-100G-FR-S and QSFP-100G-SR1.2. QSFP-100G-CU1M to CU5M and QSFP-100G-AOC1M to AOC30M cables are also supported.
Q: How does the -D suffix SKU differ from UCSX-I-9108-100G?
A: The -D suffix SKU has the same specification as UCSX-I-9108-100G: 8 x QSFP28 uplinks and 3.2 Tbps of chassis I/O.
