Cisco UCSX-I-9108-25G | UCS X-Series 9108 25G IFM Module, 8x 25G SFP28, M6
SKU:UCSX-I-9108-25G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

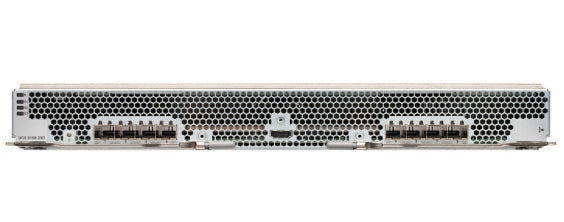

The UCS 9108 25G Intelligent Fabric Module is the I/O module that connects a Cisco UCS X9508 chassis to the UCS fabric interconnects. Part of the UCS X-Series Modular System, it carries a lossless, converged Ethernet and FCoE fabric between the compute nodes and the fabric interconnects, which suits environments that scale to many chassis under a single management domain. This is the M6 version of the module.
It provides 8 x 25G SFP28 uplinks to the fabric interconnect and 32 internal 25 GbE/FCoE ports, giving each of the 8 compute nodes 4 x 25G lanes. Network data path bandwidth is 200 Gbps and server data path bandwidth is 800 Gbps, with latency under 1 microsecond. The module works as a fabric extender with no local switching and is managed from the fabric interconnects through Cisco Intersight. It draws 237 W from the chassis and installs at the rear of the X9508, normally in a redundant pair.
It connects to UCS 6400, 6500 and 6600 series and UCS 64108 Fabric Interconnects at 25 Gbps only, and works with UCS X210c compute nodes. Supported optics and cables include SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S and SFP-25G-SL, SFP-H25G-CU1M to CU5M and SFP-25G-AOC1M to AOC10M cables, and QSFP-4SFP25G-CU1M to CU5M splitter cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Fabric extender architecture with no switching in the chassis, which lowers complexity and TCO
- Manages chassis power supplies, fans and blades together with the fabric interconnect, so no separate chassis management module is needed
- Lossless, deterministic converged Ethernet and FCoE fabric
- Priority Flow Control (PFC) and system-wide bandwidth management for QoS
- Latency under 1 microsecond, with about 50% lower end-to-end system latency
- SFP28 uplinks bound to a port-channel to the fabric interconnect, with 1 to 8 links active
- Orthogonal direct connectors to the compute node mLOM, carrying KVM, SoL and IPMI traffic
- Managed through Cisco Intersight in a single, highly available management domain
- Deployed in redundant pairs for failover
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-I-9108-25G
- Uplink ports: 8 x 25 Gbps SFP28 to fabric interconnect
- Internal ports: 32 x 25 GbE/FCoE (4 x 25 Gbps per compute node, 8 compute nodes)
- Network data path bandwidth: 200 Gbps
- Server data path bandwidth: 800 Gbps
- Total chassis I/O per IFM: 2 Tbps
- CPU complex: Intel Atom C3558 (4 core, 2.1 GHz, 15 W)
- Memory: DDR4, 8 GB max at 2133 MHz
- Fibre Channel: FCoE
- Latency: less than 1 microsecond
- Fans: 3 dual-rotor on-board fans, front-to-rear airflow, powered from 54 VDC/48 VDC
- Power supply: supplied by chassis
- Power consumption: 237 W
- Dimensions (H x W x D): 4.2 cm x 37.9 cm x 29.9 cm
- Weight: 3.82 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 4000 m
- Installation: rear of UCS X9508 chassis, up to two per chassis
- Spare fan part: UCSX-RSFAN= UCS 9508 Rear Slot Fan Spare (IFM and FEM)
FAQs
Q: Does this module need a separate licence?
A: No licence is stated for the IFM itself. It is managed as an extension of the fabric interconnects, with Cisco Intersight as the management platform.
Q: Does it need its own power supply?
A: No. It is powered by the UCS X9508 chassis and has no separate power input. Power consumption is 237 W.
Q: Which fabric interconnects does it connect to?
A: It connects to UCS 6400, 6500 and 6600 series and UCS 64108 Fabric Interconnects, at 25 Gbps only.
Q: Which optics and cables work with the 8 SFP28 uplinks?
A: Supported parts are SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S, SFP-25G-SL, SFP-H25G-CU1M to CU5M, SFP-25G-AOC1M to AOC10M, and QSFP-4SFP25G-CU1M to CU5M splitter cables.
Q: How does UCSX-I-9108-25G differ from UCSX-I-9108-25G-D?
A: UCSX-I-9108-25G is the M6 version of the 8 x 25G SFP28 module. UCSX-I-9108-25G-D is the M7 version.
