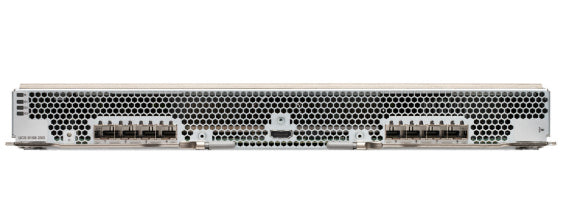

Cisco UCSX-I-9108-25G-D | UCS X-Series 9108 25G IFM, 8x 25G SFP28, M7

SKU:UCSX-I-9108-25G-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 9108 25G Intelligent Fabric Module is the I/O module for the Cisco UCS X-Series Modular System. It plugs into the rear of the UCS X9508 chassis and links the compute nodes, such as the UCS X210c, to a UCS Fabric Interconnect. It does no switching itself and acts as an extension of the Fabric Interconnect, which suits converged LAN and SAN data centre deployments. IFMs are installed in pairs for redundancy.

This M7 generation module (-D suffix) provides 8 x 25G SFP28 external uplinks, giving 200 Gb/s of network data path bandwidth to the Fabric Interconnect. Internally it provides 32 x 25GbE/FCoE ports, four 25 Gb/s lanes per compute node, for 800 Gb/s of server data path bandwidth across 8 compute nodes. Total chassis I/O is 2 Tbps per IFM, with latency under 1 microsecond. It is powered by the chassis, draws 237 W and is managed through Cisco Intersight.

It works with UCS 6400, 6500 and 6600 series and UCS 64108 Fabric Interconnects at 25 Gbps only. Supported optics and cables include SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S, SFP-25G-SL, SFP-H25G-CU1M to CU5M, SFP-25G-AOC1M to AOC10M and QSFP-4SFP25G-CU splitter cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Brings the unified fabric into the blade enclosure, simplifying cabling, diagnostics and management
- Lossless, deterministic converged fabric for LAN and SAN traffic using FCoE
- Works like a distributed line card with no switching in the chassis, reducing infrastructure complexity and TCO
- Manages chassis power supplies, fans and compute nodes together with the Fabric Interconnect, so no separate chassis management module is needed
- Priority Flow Control and systemwide bandwidth management and QoS
- Supports 1 to 8 active links in a port-channel between the IFM and the Fabric Interconnect
- Managed through Cisco Intersight as part of a single, highly available management domain
- Paired deployment in the chassis for failover

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-I-9108-25G-D (M7 generation)
- External uplinks: 8 x 25Gbps SFP28 to Fabric Interconnect
- Internal ports: 32 x 25GbE/FCoE to compute nodes
- Per compute node: 4 x 25Gbps lanes, 100 Gb/s
- Server data path bandwidth: 800 Gb/s for 8 compute nodes
- Network data path bandwidth: 200 Gb/s (8 x 25 Gb/s)
- Total chassis I/O per IFM: 2 Tbps
- Latency: less than 1 microsecond
- CPU complex: Intel Atom C3558, 4 core, 2.1 GHz, 15 W
- Memory: DDR4, 8 GB maximum at 2133 MHz
- Fibre Channel: FCoE supported
- Fans: 3 dual-rotor on-board fans, front-to-rear airflow
- Power supply: supplied by chassis (fans run from 54VDC/48VDC)
- Power consumption: 237 W
- Management: Cisco Intersight, as an extension of the Fabric Interconnect
- Dimensions (H x W x D): 4.2 x 37.9 x 29.9 cm (1.67 x 14.93 x 11.76 in)
- Weight: 3.82 kg (8.42 lb)
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 4000 m

FAQs

Q: Does this module need a licence?
A: No licence is stated for the IFM itself. It is managed through the connected Fabric Interconnect and Cisco Intersight.

Q: Which Fabric Interconnects does it connect to?
A: It works with UCS 6400, 6500 and 6600 series and UCS 64108 Fabric Interconnects. The uplinks run at 25 Gbps only.

Q: Which optics and cables are supported on the SFP28 ports?
A: Supported parts include SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S, SFP-25G-SL, SFP-H25G-CU1M to CU5M, SFP-25G-AOC1M to AOC10M, and QSFP-4SFP25G-CU1M/2M/3M/5M splitter cables.

Q: How does the -D model differ from UCSX-I-9108-25G?
A: UCSX-I-9108-25G-D is the M7 generation module. The M6 variant is UCSX-I-9108-25G. Both provide 8 x 25G SFP28 uplinks.

Q: Does it need to be installed in pairs?
A: Yes. IFMs are installed in pairs in the UCS X9508 chassis to provide redundancy and failover.
