Cisco UCSX-FI-6536-U | UCS 6536 36-Port 100G Fabric Interconnect, IMM
SKU:UCSX-FI-6536-U
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

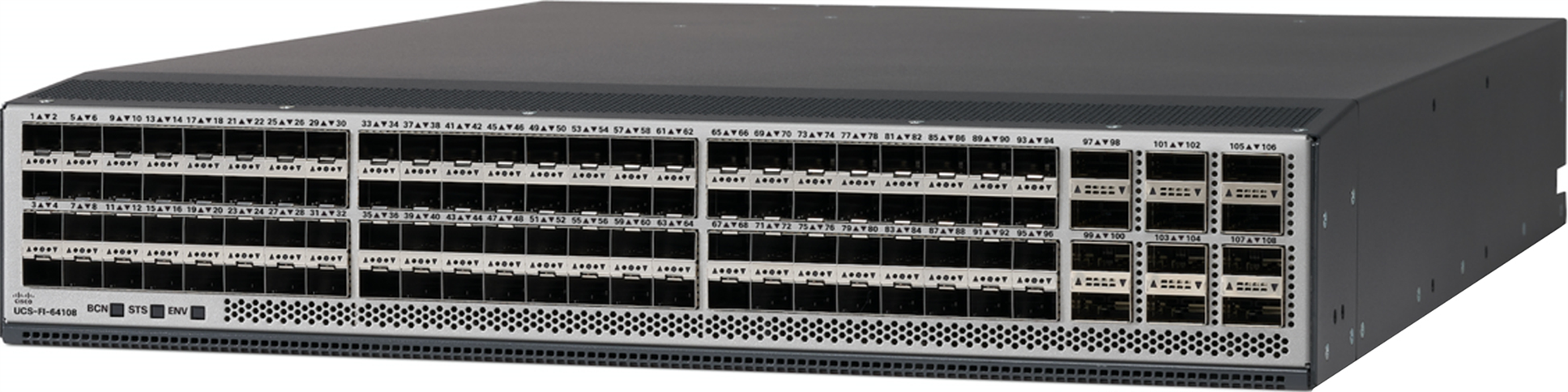

The Cisco UCS 6536 is a 1RU fabric interconnect in the UCS 6500 Series, built as the core fabric for UCS X-Series, B-Series and C-Series deployments in the data centre. This SKU is the Intersight Managed Mode (IMM) version, so the whole domain is managed through Cisco Intersight with unified LAN and SAN connectivity and a single, highly available management domain.
It provides 36 QSFP28 ports running at 40/100G, and every port supports breakout to 4x10/25G for up to 144 10/25G ports. Ports 33 to 36 are unified ports that can be configured as 8/16/32G Fibre Channel, for up to 16 FC ports after breakout. Switching throughput is 7.42 Tbps with a forwarding rate of 2.4 billion packets per second, using a cut-through design with latency under 1 microsecond. It uses six hot-swappable dual-rotor fan modules and takes up to two UCS-PSU-6536-AC 1100W AC power supplies for 1+1 redundancy. Typical power draw is 348W, with a maximum of 800W.
The unit ships with a perpetual licence that enables all ports and software features, with no licence management required. Intersight licensing is separate. It works with the UCSX-9508 and UCSB-5108 chassis, UCSX-9108-25G and UCSX-9108-100G IFMs, and VIC 1300, 1400 and 15000 series adapters. IMM support requires UCS release 4.2(2) or later.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 10/25/40/100G Ethernet, Fibre Channel, NVMe over Fabric and FCoE
- Cut-through architecture with latency under 1 microsecond
- Unified fabric consolidating LAN and SAN traffic
- Intersight Managed Mode for full management of UCS elements through Cisco Intersight
- Breakout on all 36 ports, plus QSA and QSA28 support for 1G, 10G and 25G without breakout cables
- Hot-swappable 1+1 redundant power supplies and dual-rotor fan modules
- 1600Gbps bandwidth per X9508 chassis with X9108-IFM-100G
- Priority-based Flow Control (802.1Qbb), ETS (802.1Qaz) and DCBX
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Ports: 36 x 40/100G QSFP28
- Breakout: all 36 ports support 4x10/25G, up to 144 x 10/25G ports
- Unified ports: 4 (ports 33-36), 8/16/32G Fibre Channel, up to 16 FC ports after breakout
- 1G Ethernet: 2 ports (ports 9, 10) via QSA
- Supported speeds: 1/10/25/40/100G Ethernet and FCoE, 8/16/32G Fibre Channel
- Throughput: 7.42 Tbps (14.84 Tbps per unified fabric domain)
- Forwarding rate: 2.4 billion packets per second
- MAC address table entries: 32,000
- Jumbo frames: up to 9216 bytes
- CPU: 4 cores
- System memory: 32 GB
- Management ports: L1, L2, RJ-45 management, RS-232 serial
- USB ports: 1
- Power supplies: up to 2 x 1100W AC (UCS-PSU-6536-AC)
- Typical power: 348 W
- Maximum power: 800 W
- Input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Fans: 6 hot-swappable (UCS-FAN-6536)
- Airflow: front (PSU/fan side) to back (port side exhaust)
- Dimensions (H x W x D): 4.4 x 43.9 x 62.7 cm
- Weight: 11.6 kg with two power supplies and six fans installed
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
FAQs
Q: Does this fabric interconnect need a licence?
A: It ships with a perpetual licence that activates all ports and software features, so no licence management is needed. This SKU is managed through Cisco Intersight in IMM, and Intersight licensing is separate.
Q: What power supplies does the UCS 6536 use?
A: It takes up to two UCS-PSU-6536-AC 1100W platinum AC supplies (100 to 240 VAC) for 1+1 redundancy. The fan module is UCS-FAN-6536. Typical draw is 348W and maximum is 800W.
Q: What is the difference between UCSX-FI-6536-U and UCS-FI-6536-U?
A: UCSX-FI-6536-U is the Intersight Managed Mode version, managed through Cisco Intersight. UCS-FI-6536-U is the version managed through UCS Manager.
Q: Which chassis and servers does it work with?
A: It works with the UCSX-9508 and UCSB-5108 chassis, using UCSX-9108-25G or UCSX-9108-100G IFMs. Supported servers include X-Series M6/M7, B-Series M5/M6 and C-Series M5/M6/M7. IMM support requires UCS release 4.2(2) or later.
Q: Can the ports be used for Fibre Channel?
A: Yes. Ports 33 to 36 are unified ports that can be configured as 8/16/32G Fibre Channel, giving up to 16 FC ports after breakout.
