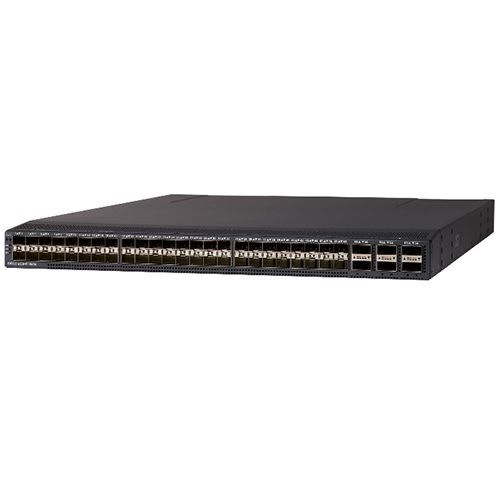

Cisco UCSX-FI-6454-D-U | UCS 6454 54-Port Fabric Interconnect, 10/25G SFP28
SKU:UCSX-FI-6454-D-U
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6454 is a 1RU fixed-port fabric interconnect from the Cisco UCS 6400 Series. It carries LAN, SAN and management traffic over a single unified fabric, and is built for Cisco UCS blade and rack server domains that need one highly available management point.
The UCS Manager managed model provides 54 fixed ports: 28 x 10/25G SFP28 Ethernet ports, 4 x 1/10/25G Ethernet ports and 6 x 40/100G QSFP28 Ethernet uplinks. Sixteen of the ports are unified ports that can run 10/25G Ethernet or 8/16/32G Fibre Channel, and FCoE is supported on all Ethernet ports. Power is provided by two power supplies, in AC or DC options.
Cisco UCS Manager places every connected element in a single management domain, typically deployed as a clustered active/passive pair. The fabric extender architecture scales to 20 blade chassis without dedicated chassis management or blade switches, and both out-of-band and in-band management are supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Unified fabric reduces the number of NICs, HBAs, switches and cables required
- Fibre Channel packets are encapsulated transparently into Ethernet
- Cisco UCS Manager provides a single, highly available management domain
- UCS Manager is typically deployed as a clustered active/passive pair
- Fabric extender architecture scales to 20 blade chassis without dedicated chassis management or blade switches
- Supports out-of-band and in-band management
- Sixteen unified ports can be configured for Ethernet or Fibre Channel
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Fixed ports: 54
- 10/25-Gbps Ethernet ports: 28
- 1/10/25-Gbps Ethernet ports: 4
- 40/100-Gbps Ethernet uplink ports: 6
- Unified ports (10/25-Gbps Ethernet or 8/16/32-Gbps Fibre Channel): 16
- FCoE: supported on all Ethernet ports
- Power supply: two power supplies (AC or DC options)
- Management: Cisco UCS Manager, dedicated 10/100/1000-Mbps out-of-band Ethernet management port and in-band management
- Scalability: up to 20 blade chassis via fabric extender architecture
FAQs
Q: What manages this fabric interconnect?
A: It is managed by Cisco UCS Manager, which brings all connected elements into a single management domain. Out-of-band and in-band management are both supported.
Q: Can it carry Fibre Channel traffic?
A: Yes. Sixteen unified ports can run 8/16/32G Fibre Channel or 10/25G Ethernet, and FCoE is supported on all Ethernet ports.
Q: What speeds do the uplink ports support?
A: The 6 uplink ports support 40/100G Ethernet over QSFP28, while the 10/25G SFP28 ports connect servers and chassis.
Q: How many blade chassis can it connect to?
A: The fabric extender architecture scales to 20 blade chassis without dedicated chassis management or blade switches.
Q: What power options are available?
A: It uses two power supplies, available in AC or DC options.
