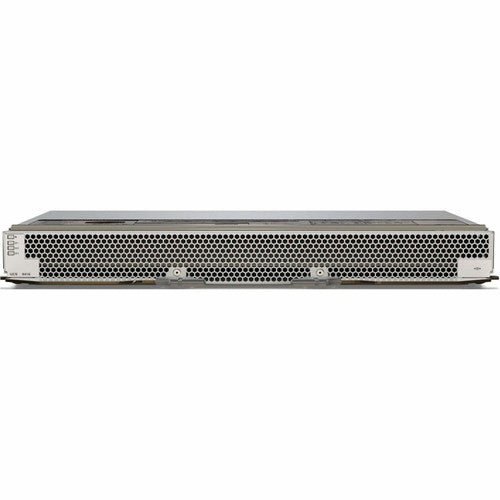

Cisco UCSX-F-9416-D | UCS X9416 PCIe Gen4 X-Fabric Module for X9508
SKU:UCSX-F-9416-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS X9416 X-Fabric Module is a rear-mounted PCIe fabric module for the UCS X9508 chassis in the UCS X-Series Modular System. It gives compute nodes native PCIe Gen4 connectivity to PCIe and GPU resource nodes such as the X440p, and suits GPU and PCIe expansion for AI/ML and VDI acceleration or disaggregated PCIe resource pooling.
This is the PCIe Gen4 X9416 module, UCSX-F-9416-D, and not the Gen5 X9516 (UCSX-FS-9516). It provides PCIe Gen4 x16 links from each X-Fabric Module slot to each compute node and installs in the two rear X-Fabric Module slots (XFM1 and XFM2) at the bottom of the chassis. Two modules are used per chassis, giving PCIe connectivity to all eight front module slots. Integrated hot-swappable active fans keep the module cooled, and the midplane-free design avoids PCIe-to-Ethernet translation. There is no separate licence for the module itself, and the system is managed through Cisco Intersight or UCS Manager.
It works with UCS X210c, X215c and X410c compute nodes and X440p PCIe nodes. The compute nodes need a UCS VIC 14425 or VIC 15230 mLOM with a mezzanine VIC, or the UCS PCIe Mezz card for X-Fabric.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Native PCIe connectivity between compute nodes and GPU or PCIe resource nodes
- Hot-swappable active fans for cooling inside the module
- Midplane-free design lets the fabric be upgraded with future modules
- Avoids PCIe-to-Ethernet translation, reducing cost, power and latency
- Provides PCIe Gen4 x16 links to each compute node slot
- Managed through Cisco Intersight
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-F-9416-D
- Module type: Cisco X-Fabric Module (XFM)
- Host interface: Native PCIe Gen4 x16 to each compute node slot, per module
- Chassis slots: 2 rear X-Fabric Module slots (XFM1, XFM2) at the bottom of the chassis rear
- Slot coverage: Each module provides PCIe connectivity to chassis module slots 1 through 8
- Modules per chassis: 2
- Cooling: Integrated hot-swappable active fans
- Indicators: Module status LED and fan status LEDs 1 to 3
- Controls: Left and right module ejector handles
- Compatible compute nodes: UCS X210c, X215c, X410c
- Compatible PCIe nodes: UCS X440p (UCSX-440P, UCSX-440P-D)
- Required node adapters: UCS VIC 14425 or VIC 15230 mLOM with mezzanine VIC, or UCS PCIe Mezz card for X-Fabric
- Management: Cisco Intersight and UCS Manager
- Chassis operating temperature (X9508): 10 to 35 C
- Chassis operating humidity (X9508): 10% to 90% non-condensing
FAQs
Q: Does this module need a separate licence?
A: No. The module itself carries no separate licence. The system is managed through Cisco Intersight or UCS Manager, which have their own licensing.
Q: Which compute and PCIe nodes does it work with?
A: It works with UCS X210c, X215c and X410c compute nodes and X440p PCIe nodes (UCSX-440P and UCSX-440P-D) in a UCS X9508 chassis.
Q: What adapters do the compute nodes need?
A: Compute nodes need a UCS VIC 14425 or VIC 15230 mLOM with a mezzanine VIC, or the UCS PCIe Mezz card for X-Fabric.
Q: How does it differ from the X9516 module?
A: The X9416 (UCSX-F-9416-D) provides PCIe Gen4 connectivity. The Gen5 X580p node requires the X9516 fabric module (UCSX-FS-9516) instead.
Q: How many modules are needed per chassis?
A: Two X-Fabric Modules are used per chassis, installed in the rear XFM1 and XFM2 slots.
