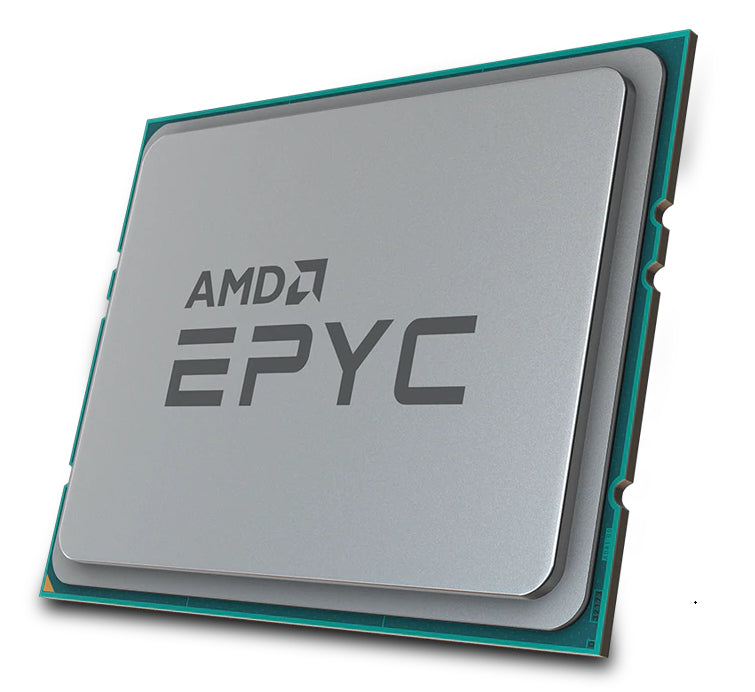

Cisco UCSX-CPU-A9684X | UCS X-Series EPYC 9684X 96-Core CPU, 2.55GHz, 400W
SKU:UCSX-CPU-A9684X
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSX-CPU-A9684X is a 4th Gen AMD EPYC 9684X processor with 3D V-Cache technology, built as a CPU option for the Cisco UCS X215c M8 compute node in the UCS X-Series modular system. It suits HPC, technical computing and other cache-intensive or high-core-count workloads.
The processor provides 96 cores with a 2.55 GHz base frequency and a 3.70 GHz boost frequency, and carries 1,152 MB of cache. Default TDP is 400 W per CPU. Each CPU supports 12 DDR5 memory channels with one DIMM per channel, and memory runs at up to 4800 MT/s with this processor. It is a 2-socket capable part and is not restricted to single-CPU systems.
It is supported on the Cisco UCS X215c M8 Compute Node in one-CPU or two-CPU configurations, with identical CPUs required in a two-CPU build. Memory must be Cisco DDR5-5600 or DDR5-6400 RDIMMs. Front and rear heatsinks (UCSX-M8A-HS-F= and UCSX-M8A-HS-R=) are listed CPU accessories, and a rear heatsink is required when upgrading a single-CPU server to two CPUs. The host server is managed through Cisco Intersight.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Largest L3 cache of the X215c M8 CPU options at 1,152 MB with 3D V-Cache
- 96 cores for compute-intensive, cache-sensitive workloads
- 12-channel DDR5 memory per CPU
- Supported in one-CPU or two-CPU configurations on the X215c M8, with identical CPUs required in a two-CPU build
- Managed through Cisco Intersight with the UCS X-Series platform
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-CPU-A9684X
- Processor: AMD EPYC 9684X, 4th Gen EPYC 9004 Series with 3D V-Cache
- Cores: 96
- Base frequency: 2.55 GHz
- Boost frequency: 3.70 GHz
- Default TDP: 400 W
- Cache size: 1,152 MB
- Memory type: DDR5, up to 4800 MT/s
- Memory channels: 12 DDR5 channels per CPU, 1 DIMM per channel
- Maximum sockets: 2S
- Required memory: Cisco DDR5-5600 or DDR5-6400 PIDs, running at up to 4800 MT/s with this CPU
- Supported host: Cisco UCS X215c M8 Compute Node (UCS X9508 chassis)
FAQs
Q: Does this CPU need a licence?
A: No licence is needed for the CPU itself. The host server is managed through Cisco Intersight.
Q: Which server does it work with?
A: It is supported on the Cisco UCS X215c M8 Compute Node, which mounts in a Cisco UCS X9508 chassis. It can be used in one or two CPUs per node.
Q: What memory does it require?
A: It requires Cisco DDR5-5600 or DDR5-6400 RDIMMs, which operate at up to 4800 MT/s with this CPU.
Q: What power and cooling does it need?
A: Default TDP is 400 W per CPU. Front and rear heatsinks (UCSX-M8A-HS-F= and UCSX-M8A-HS-R=) are listed accessories, and a rear heatsink is required when upgrading a single-CPU server to two CPUs.
Q: Can I run it in a two-CPU configuration?
A: Yes. This PID is not restricted to single-CPU systems, but both CPUs in a two-CPU build must be identical.
