Cisco

Cisco UCSX-9508-ACPEM | UCS X9508 Rear AC Power Entry Module, 3x IEC C20

SKU:UCSX-9508-ACPEM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This rear AC power entry module (PEM) is a field-replaceable component for the Cisco UCS X9508 chassis, part of the UCS X-Series modular system. It brings AC mains power into the chassis rear and distributes it to the power supplies, making it relevant to data centre compute deployments built on UCS X-Series.

Each PEM groups three IEC 320 C20 inlets, one for each power supply in its bank. The top PEM (PEM1) feeds power supplies 1 to 3 and the bottom PEM (PEM2) feeds power supplies 4 to 6, so two PEMs are used per chassis. It is designed for the 2800 W Titanium power supply (N20-PAC5-2800W), which accepts 100-127 VAC or 200-240 VAC at 50 to 60 Hz. The PEM is passive AC distribution and draws no power of its own. When paired with 2800 W power supplies the chassis supports non-redundant, N+1, N+2 and grid (N+N) power redundancy, and each power supply can be connected to a different phase.

It works with the Cisco UCS X9508 chassis (UCSX-9508) and uses supported Cisco power cords with an IEC C19 plug at the chassis end, such as CAB-AC-16A-AUS for Australia and New Zealand.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Three C20 inlets per PEM give one inlet per power supply in its bank
- Hot-serviceable field-replaceable unit at the chassis rear
- Supports non-redundant, N+1, N+2 and grid (N+N) redundancy with 2800 W power supplies
- Each power supply can be connected to a different phase
- Passive AC distribution with no power draw of its own
- Optional C19/C20 jumper power cords for in-rack use

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number (spare): UCSX-9508-ACPEM=
- Description: UCS 9508 Chassis Rear AC Power Expansion Module
- AC inlets per PEM: 3 x IEC 320 C20
- PEMs per chassis: 2 (PEM1 serves PSU 1, 2, 3; PEM2 serves PSU 4, 5, 6)

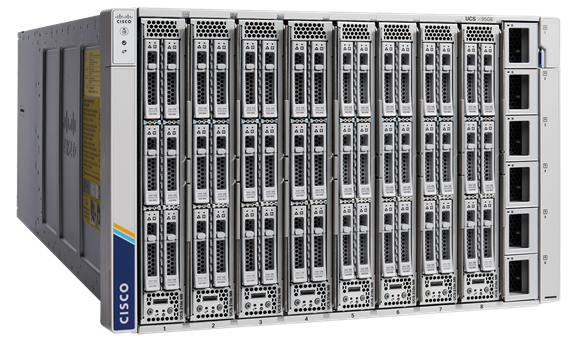

- Host chassis: Cisco UCS X9508 (7 RU, 8 node slots, 6 PSU bays)
- Compatible PSU: N20-PAC5-2800W, 2800 W, 80+ Titanium
- PSU AC input voltage: 100-127 VAC, 200-240 VAC nominal
- PSU AC input frequency: 50 to 60 Hz nominal (range 47 to 63 Hz)
- PSU maximum AC input current: 18 A at 90 VAC and 180 VAC
- PSU maximum input VA: 3200 VA at 230 VAC
- PSU maximum output power: 2800 W at 200-240 VAC, 1400 W at 100-127 VAC
- Power redundancy (chassis): Nonredundant, N+1, N+2 and Grid (N+N)
- Power cord: IEC C19 plug at the PEM/PSU end, up to 6 cords per chassis
- Operating temperature (chassis): 10 to 35 C up to 3,000 m
- Non-operating temperature (chassis): -40 to 65 C
- Operating humidity (chassis): 10-90% non-condensing

FAQs

Q: How many power supplies does one PEM feed?
A: Each PEM has three C20 inlets and feeds three of the chassis' six power supplies. PEM1 serves power supplies 1 to 3 and PEM2 serves power supplies 4 to 6.

Q: Which power supply does it support?
A: It supports the 2800 W Titanium AC power supply (N20-PAC5-2800W) used in the Cisco UCS X9508 chassis.

Q: Which power cord should I use in Australia?
A: Cisco lists CAB-AC-16A-AUS, a 16A 250 VAC cord for Australia and New Zealand, with an IEC C19 plug at the chassis end.

Q: Does it support grid (N+N) redundancy?
A: Yes. With 2800 W power supplies the chassis supports non-redundant, N+1, N+2 and grid (N+N) power redundancy, and each power supply can be connected to a different phase.

Q: How many PEMs does a UCS X9508 chassis use?
A: Two PEMs are used per chassis, one for the top bank of power supplies and one for the bottom bank.
