Cisco UCSC-SAS9460-8I | UCS C-Series 12G SAS RAID Controller, 2GB Cache, 8-Port
SKU:UCSC-SAS9460-8I
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

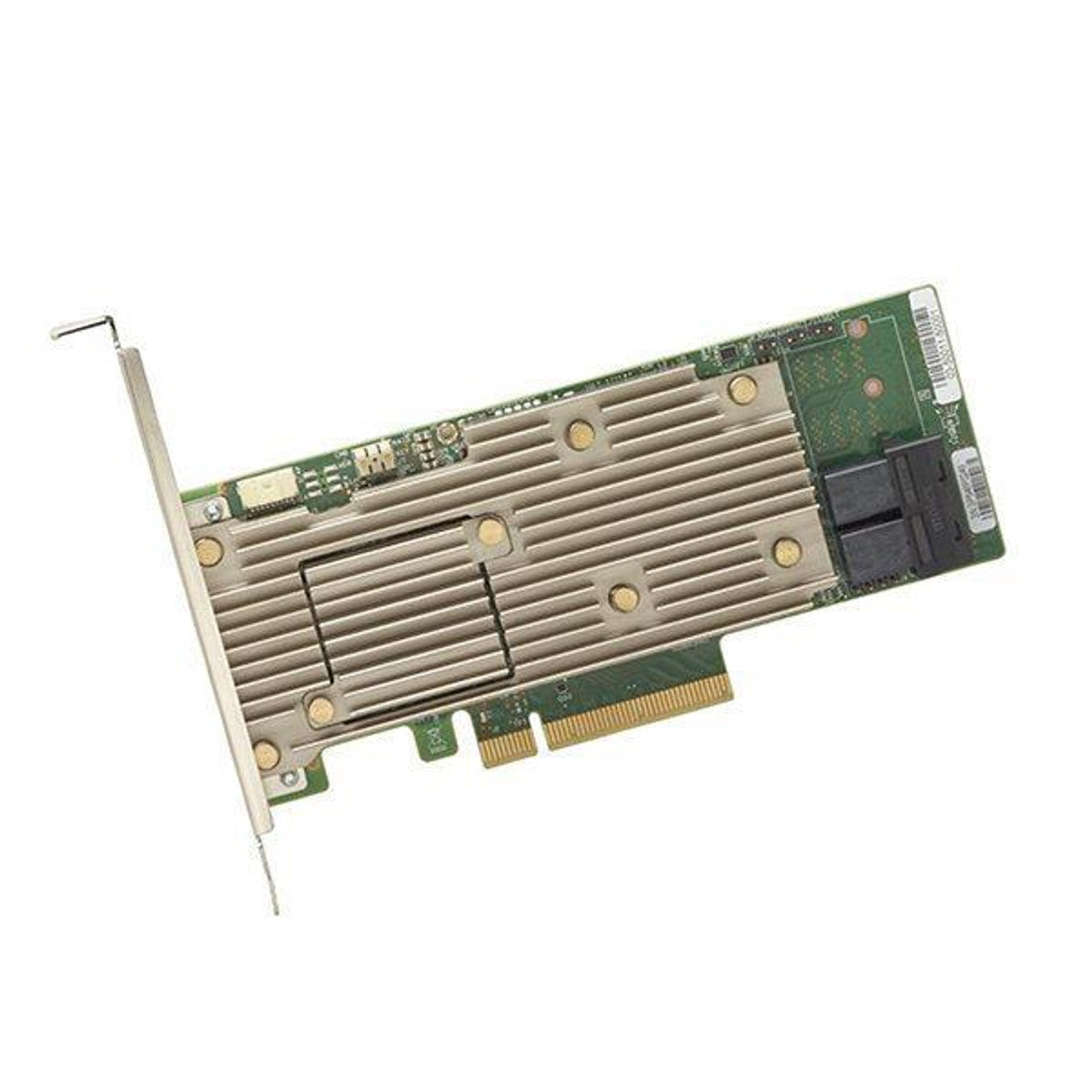

The UCSC-SAS9460-8I is a PCIe plug-in 12Gb/s SAS/SATA RAID controller for Cisco UCS C-Series rack servers, built on the MegaRAID 9460-8i design. It suits servers that need hardware RAID for SAS or SATA drives, such as the rear auxiliary drive module of the UCS C480 M5.
The card connects to the server over a PCIe 3.0 x8 host interface and drives up to 8 SAS or SATA drives through two internal SFF-8643 connectors (8 lanes). It carries 2GB of cache, protected by a supercap power module (SCPM) instead of a battery, so cached data is preserved if power is lost. RAID levels 0, 1, 5, 6, 10, 50 and 60 are supported. The 2GB cache and 8-port internal connector layout are what set this SKU apart from other UCS RAID controller variants.
In the UCS C480 M5 it manages the 8 SAS/SATA drives in the rear auxiliary drive module and is used when the front drive cages are UCSC-C480-8HDD. It is not required for an all-NVMe configuration.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware RAID for SAS/SATA drives in UCS C-Series rack servers
- 2GB write cache protected by a supercap power module
- 12Gb/s SAS throughput
- Supports RAID 0, 1, 5, 6, 10, 50 and 60
- Two internal SFF-8643 connectors for 8 drive lanes
- PCIe 3.0 x8 host interface
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: PCIe plug-in RAID controller card
- Host interface: PCIe 3.0 x8
- Drive interface: 12Gb/s SAS/SATA
- Internal connectors: 2 x SFF-8643 (8 lanes)
- Drives supported: up to 8 SAS or SATA drives
- Cache: 2GB
- Cache backup: supercap power module (SCPM)
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- Controller design: MegaRAID 9460-8i based
- Form: plug-in PCIe card (not modular/mLOM)
FAQs
Q: What provides the cache backup on this controller?
A: Cache backup is provided by a supercap power module (SCPM) rather than a battery. The supercap needs to be fitted for the 2GB cache to be protected.
Q: How many drives can it control?
A: It controls up to 8 SAS or SATA drives through its two internal SFF-8643 connectors, which provide 8 lanes.
Q: Where is it used in the UCS C480 M5?
A: It controls the 8 SAS/SATA drives in the rear auxiliary drive module. It is used when the front drive cages are UCSC-C480-8HDD.
Q: Is it needed for an all-NVMe server?
A: No. It is not required for an all-NVMe system, as it manages SAS and SATA drives only.
Q: Which RAID levels does it support?
A: It supports RAID 0, 1, 5, 6, 10, 50 and 60.
