Cisco

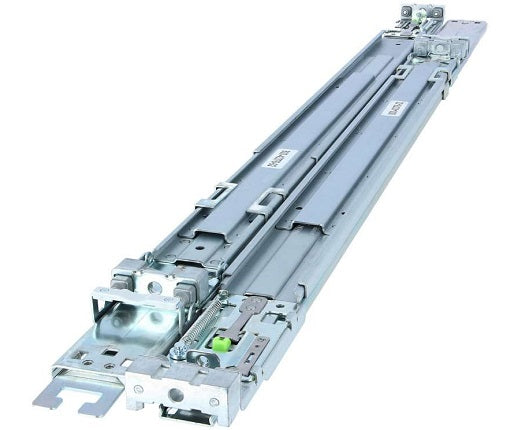

Cisco UCSC-RAIL-4U-M5 | UCS C480 M5 4U Sliding Rail Kit, Tool-less

SKU:UCSC-RAIL-4U-M5

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This tool-less ball-bearing sliding rail kit mounts the Cisco UCS C480 M5 4RU rack server in a standard 19-inch four-post EIA rack. The slide rails allow the server to be extended from the rack for servicing and install without tools. An optional cable management arm (UCSC-CMA-4U-M5) attaches to the rails for tidy rear cabling in data centre and server room deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tool-less installation with sliding rails
- Ball-bearing slide mechanism for smooth server extension
- Compatible with optional reversible cable management arm UCSC-CMA-4U-M5
- Suits standard 19-inch four-post EIA racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco part number: UCSC-RAIL-4U-M5
- Type: ball-bearing slide rail kit
- Compatible server: Cisco UCS C480 M5 (4RU) rack server
- Rack type: standard 19-inch (48.3 cm) four-post EIA rack
- Rack standard: ANSI/EIA-310-D-1992 universal hole spacing
- Rack post holes: square 0.38 in (9.6 mm), round 0.28 in (7.1 mm), #12-24 UNC or #10-32 UNC
- Minimum vertical rack space per server: 4 RU (7.0 in / 177.8 mm)
- Optional cable management arm adds 5.4 in (137.4 mm) to the distance from the rear of the server

FAQs

Q: Which Cisco servers does the UCSC-RAIL-4U-M5 rail kit suit?
A: It is designed for the Cisco UCS C480 M5 4RU rack server and is also listed as an orderable option for the C480 ML M5.

Q: Does installation require tools?
A: No. The ball-bearing slide rail kit is designed for tool-less installation in a four-post rack.

Q: What rack types are supported?
A: Standard 19-inch (48.3 cm) four-post EIA racks following ANSI/EIA-310-D-1992 universal hole spacing, with square, round, #12-24 UNC or #10-32 UNC post holes.

Q: Can a cable management arm be used with these rails?
A: Yes. The optional reversible cable management arm UCSC-CMA-4U-M5 attaches to the rails and adds 5.4 in (137.4 mm) to the distance from the rear of the server.

Q: How much rack space does the server need?
A: Each C480 M5 requires a minimum of 4 RU of vertical rack space, which is 7.0 in (177.8 mm).
