Cisco

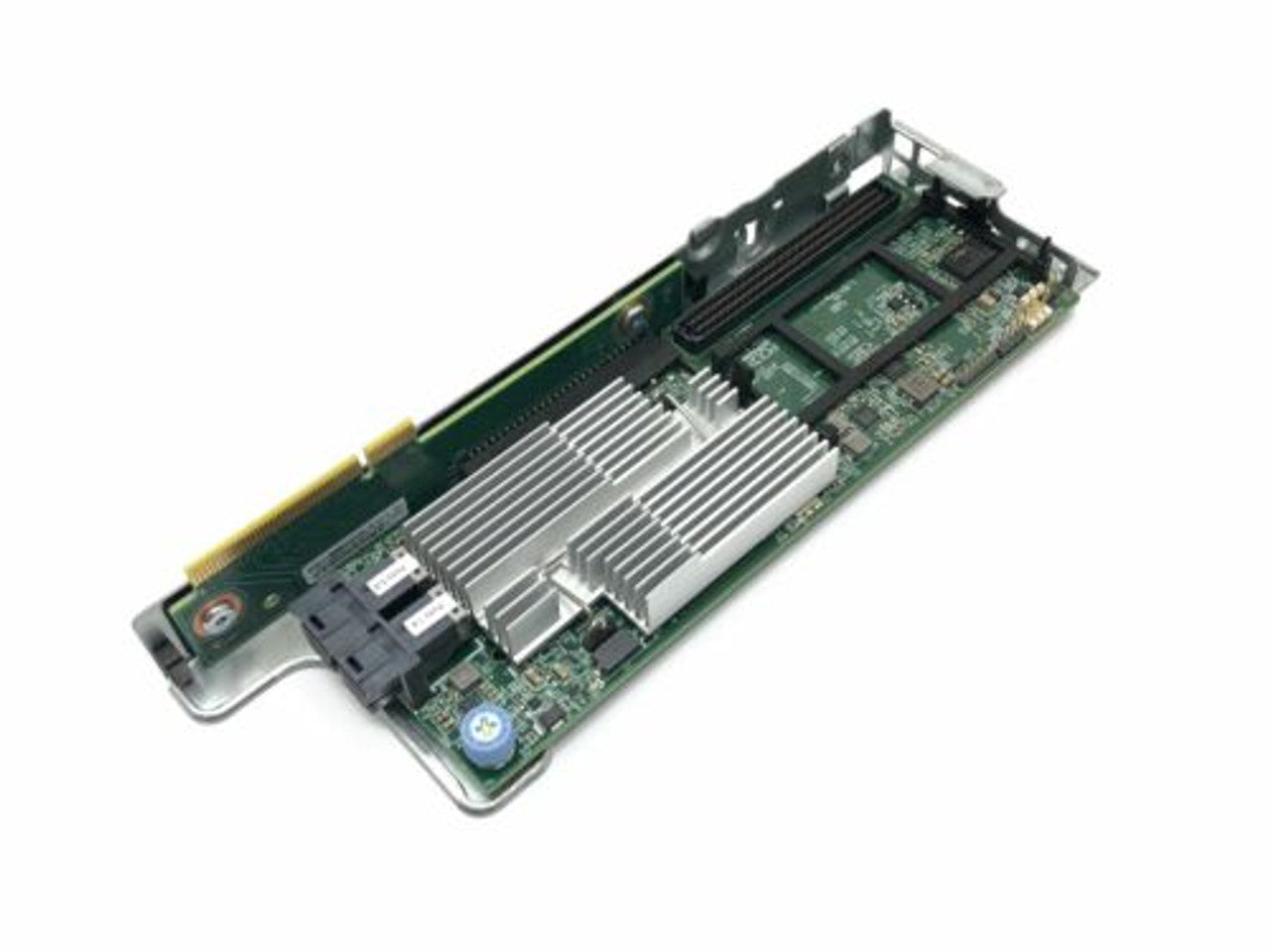

Cisco UCSC-RAID-T-D | UCS C-Series M7 12G SAS RAID Controller, 4GB FBWC

SKU:UCSC-RAID-T-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 12Gb/s SAS RAID controller is built for Cisco UCS C-Series M7 rack servers. It plugs into a dedicated internal controller slot, so it does not use a PCIe riser slot, and it is aimed at virtualisation, database and general data-centre workloads that need hardware RAID for SAS and SATA drives.

It supports 3, 6 and 12 Gbps drive speeds with SAS HDDs and SAS/SATA SSDs, and provides a 4GB flash-back write cache protected by a SuperCap. RAID levels 0, 1, 5, 6, 10, 50 and 60 are available alongside JBOD, and mixed RAID and JBOD operation is supported. It is a 16-drive controller, with up to 10 drives on the C220 M7 and up to 14 per controller on the C240 M7. Each controller handles 240 virtual drives, with up to 64 virtual drives per disk group. Self-encrypting drives are supported with local key management, and the controller is managed through Cisco IMC or UCS Manager. Each RAID volume should use a single media type: all SAS HDDs, all SAS SSDs or all SATA SSDs.

It is intended for the Cisco UCS C220 M7 and C240 M7 SFF rack servers. It is not for the NVMe-only M7SN and M7N models, where drives are controlled directly from the CPU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Flash-back write cache protected by a SuperCap for data protection on power loss
- Hardware RAID 0, 1, 5, 6, 10, 50 and 60 plus JBOD pass-through
- Supports mixed RAID and JBOD operation on the same controller
- Supports self-encrypting drives with local key management
- Managed through Cisco IMC and UCS Manager
- Plugs directly into a dedicated slot, so no PCIe riser slot is used

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Controller type: 12Gb/s SAS RAID controller
- Drive interface speeds: 3Gbps, 6Gbps and 12Gbps
- Supported drives: SAS HDDs and SAS/SATA SSDs
- Write cache: 4GB flash-back write cache (FBWC) with SuperCap
- RAID levels: RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
- Mixed RAID and JBOD mode: Supported
- Drive capacity: 16-drive controller
- Maximum drives on C220 M7 (1U): Up to 10 SAS HDDs or SAS/SATA SSDs
- Maximum drives on C240 M7 (2U): Up to 14 SAS/SATA drives per controller
- Virtual drives: 240 per controller, up to 64 per disk group
- Installation: Dedicated internal controller slot
- Self-encrypting drives: Supported, local key management via CIMC/UCSM
- Management: Cisco IMC / UCS Manager
- Compatible servers: Cisco UCS C220 M7 and C240 M7 (SFF)

FAQs

Q: Does this RAID controller need a separate licence?
A: No separate licence is stated for this controller. It is managed through Cisco IMC and UCS Manager.

Q: Which servers is it compatible with?
A: It is designed for the Cisco UCS C220 M7 (SFF) and C240 M7 (SFF) rack servers. It is not for the NVMe-only M7SN and M7N models, where drives are controlled directly from the CPU.

Q: Which drive types and RAID levels does it support?
A: It supports SAS HDDs and SAS/SATA SSDs, with RAID 0, 1, 5, 6, 10, 50, 60 and JBOD. NVMe drives are not supported, and each RAID volume should use one media type only.

Q: How does it differ from the UCSC-SAS-T-D and UCSC-RAID-SD-D?
A: The UCSC-SAS-T-D is an HBA without hardware RAID, while this controller adds RAID with a 4GB flash-back write cache. The UCSC-RAID-SD-D is a RAID controller for up to 28 drives, whereas this one covers 16 drives.

Q: How is the write cache protected during a power loss?
A: The 4GB flash-back write cache is backed by a SuperCap, which protects cached data if power is lost.
