Cisco UCSC-RAID-220M6 | UCS C-Series M6 12G SAS RAID Controller, 4GB FBWC

SKU:UCSC-RAID-220M6

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

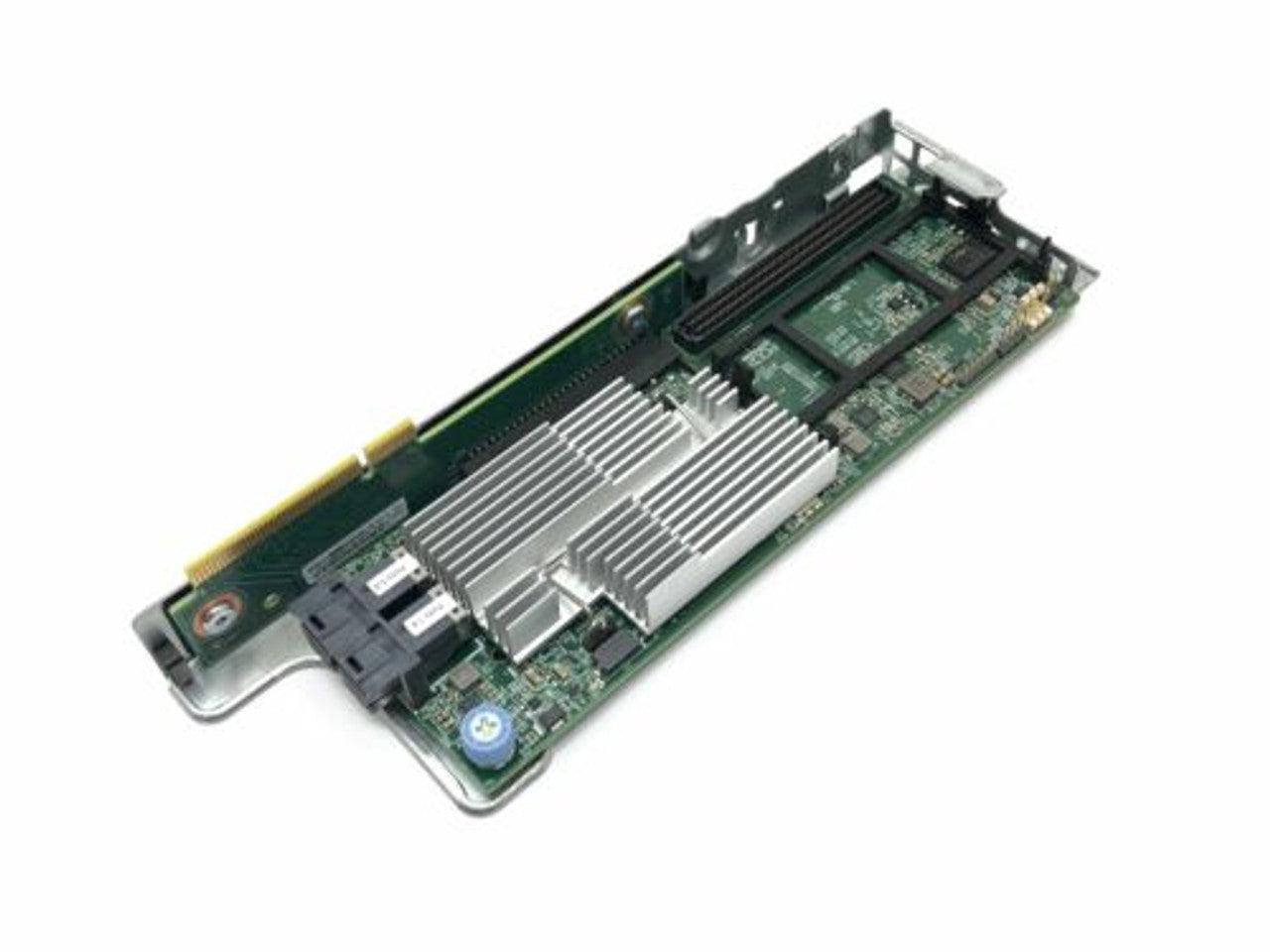

This 12G SAS modular RAID controller is built for Cisco UCS C220 M6 and C225 M6 rack servers in the UCS C-Series M6 range. It provides hardware RAID for internal SAS and SATA drives and suits virtualisation, collaboration and bare-metal workloads running in compact 1U, 2-socket servers.

The controller carries 4GB of flash-backed write cache (FBWC) protected by a SuperCap, which preserves cached data during a power loss. It runs 12Gb/s SAS and also supports 6Gbps and 3Gbps drive speeds, with SAS HDDs and SAS/SATA SSDs supported. It manages up to 16 drives, with 10 x 2.5-inch SFF front-loading drives in the UCS C220 M6. It uses the modular RAID (mRAID) form factor with a 1U bracket and installs in a dedicated mRAID riser slot, which leaves standard PCIe slots free.

This part is the same component as UCSC-RAID-M6T, so either PID can be used for replacement. It is also used in the Cisco Business Edition 6000 M6 as BE6K-RAIDCTRLR-M6. Only one storage controller type can be used at a time in these servers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware RAID for internal SAS and SATA drives in UCS C-Series M6 rack servers
- 4GB flash-backed write cache with SuperCap protects cached data during power loss
- 12Gbps SAS with backward compatibility for 6Gbps and 3Gbps drives
- Installs in a dedicated mRAID riser slot, leaving PCIe slots free
- Supports SAS HDDs and SAS/SATA SSDs
- Same component as UCSC-RAID-M6T, so either PID works for replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSC-RAID-220M6
- Equivalent PID: UCSC-RAID-M6T
- Interface: 12G SAS
- Drive speeds supported: 3 Gbps, 6 Gbps, 12 Gbps
- Drive types supported: SAS HDD, SAS/SATA SSD
- Cache size: 4GB flash-backed write cache (FBWC)
- Cache protection: SuperCap
- Maximum drives (controller): 16
- Maximum drives (UCS C220 M6 SFF): 10 x 2.5-inch front-loading drives, slots 1-10
- Maximum drives (UCS C225 M6): up to 10 internal SAS HDDs and SAS/SATA SSDs
- RAID type: Hardware RAID
- Form factor: Modular RAID (mRAID) card with 1U bracket
- Installation: dedicated mRAID riser slot (Riser 3 in C220 M6)
- Supported servers: UCS C220 M6 (UCSC-C220-M6S), UCS C225 M6 (UCSC-C225-M6S)

FAQs

Q: Which servers does this RAID controller work with?
A: It is designed for Cisco UCS C220 M6 (UCSC-C220-M6S) and UCS C225 M6 (UCSC-C225-M6S) rack servers. It is also used in the Cisco Business Edition 6000 M6 as BE6K-RAIDCTRLR-M6.

Q: What protects the write cache if power is lost?
A: A SuperCap module provides power backup for the 4GB flash-backed write cache so cached data is preserved during a power loss. The card itself is powered from the server's mRAID riser.

Q: What drive types and speeds does it support?
A: It supports SAS HDDs and SAS/SATA SSDs at 12Gbps, 6Gbps and 3Gbps. The controller manages up to 16 drives, with 10 front-loading 2.5-inch SFF drives in the UCS C220 M6.

Q: How does UCSC-RAID-220M6 differ from UCSC-RAID-M6T?
A: They are the same component, so either PID can be used for replacement. This SKU is the 4GB FBWC controller with SuperCap and 1U bracket.

Q: Can I run it alongside another storage controller?
A: No. Only one storage controller type can be used at a time in these servers, whether a SATA interposer, a 12G RAID controller or a 12G SAS HBA.
