Cisco UCSC-PSUV2-1050DC | UCS C-Series 1050W -48V DC Hot-Swap Power Supply
SKU:UCSC-PSUV2-1050DC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

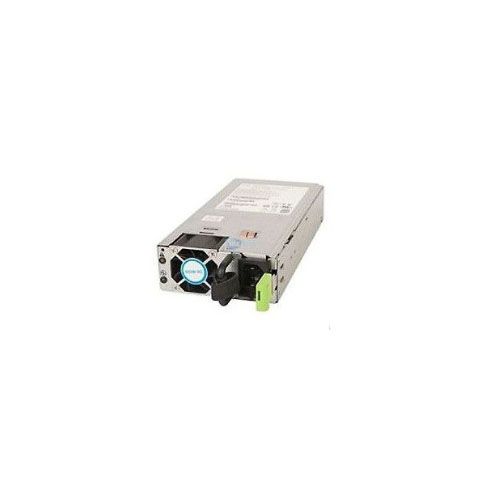

This hot-swappable 1050W DC power supply is designed for Cisco UCS C-Series rack servers installed in DC-powered environments such as telecom central offices and DC-plant data centres. It uses the RSP2 form factor and allows a failed unit to be replaced in the field when the server is configured with redundant power supplies.
The unit accepts a -48 to -60 VDC nominal input (-40 to -72 VDC range) with a maximum input current of 32A at -40 VDC and a maximum input of 1234W. Output is 1050W on the 12 VDC main rail plus 36W on the 12 VDC standby rail, with efficiency of at least 92% at 50% load. Hold-up time is 5 ms at 100% load. Power is connected through a fixed 3-wire terminal block, so no AC power cord is used.
This part number is documented in the specification sections of the UCS C220 M4 and UCS C245 M6 installation guides, and the same RSP2 power supply is listed across several UCS C-Series generations. No licence is required. Confirm support for your specific server model before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable power supply for redundant power configurations
- DC-input option for telecom central-office and DC-powered data centre environments
- 12 VDC main output plus 12 VDC standby output
- RSP2 form factor shared with other UCS C-Series M4, M5 and M6 power supplies
- High efficiency of 92% or better at 50% load
- Fixed 3-wire terminal block input for direct DC plant connection
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 1050W on 12 VDC main
- Standby output: 36W on 12 VDC
- Output voltage: 12 VDC
- Standby voltage: 12 VDC
- DC input voltage: -48 to -60 VDC nominal (-40 to -72 VDC range)
- Maximum DC input current: 32A at -40 VDC
- Maximum input wattage: 1234W
- Maximum inrush current: 35A (sub-cycle duration)
- Maximum hold-up time: 5 ms at 100% load
- Efficiency: 92% or higher at 50% load
- Form factor: RSP2, hot-swap
- Input connector: fixed 3-wire block
FAQs
Q: Does this power supply need a licence or subscription?
A: No. It is a hardware power supply and requires no licence.
Q: What input power does the UCSC-PSUV2-1050DC need?
A: It runs from a DC feed of -48 to -60 VDC nominal, with an accepted range of -40 to -72 VDC. It draws up to 32A at -40 VDC and connects through a fixed 3-wire terminal block, so it does not use an AC power cord.
Q: Which servers does it work with?
A: This part number is documented for the UCS C220 M4 and UCS C245 M6, and the RSP2 form factor is shared across multiple UCS C-Series generations. Check your specific server's specification sheet to confirm support before ordering.
Q: Can it be replaced while the server is running?
A: Yes. It is a hot-swap unit intended for redundant power configurations, so a failed supply can be replaced without shutting the server down, provided the remaining supply can carry the load.
Q: How does this differ from the AC power supply versions?
A: This model takes a -48 to -60 VDC input for DC-powered sites, whereas AC versions take mains input through a power cord. Output is 1050W at 12 VDC main plus 36W standby.
