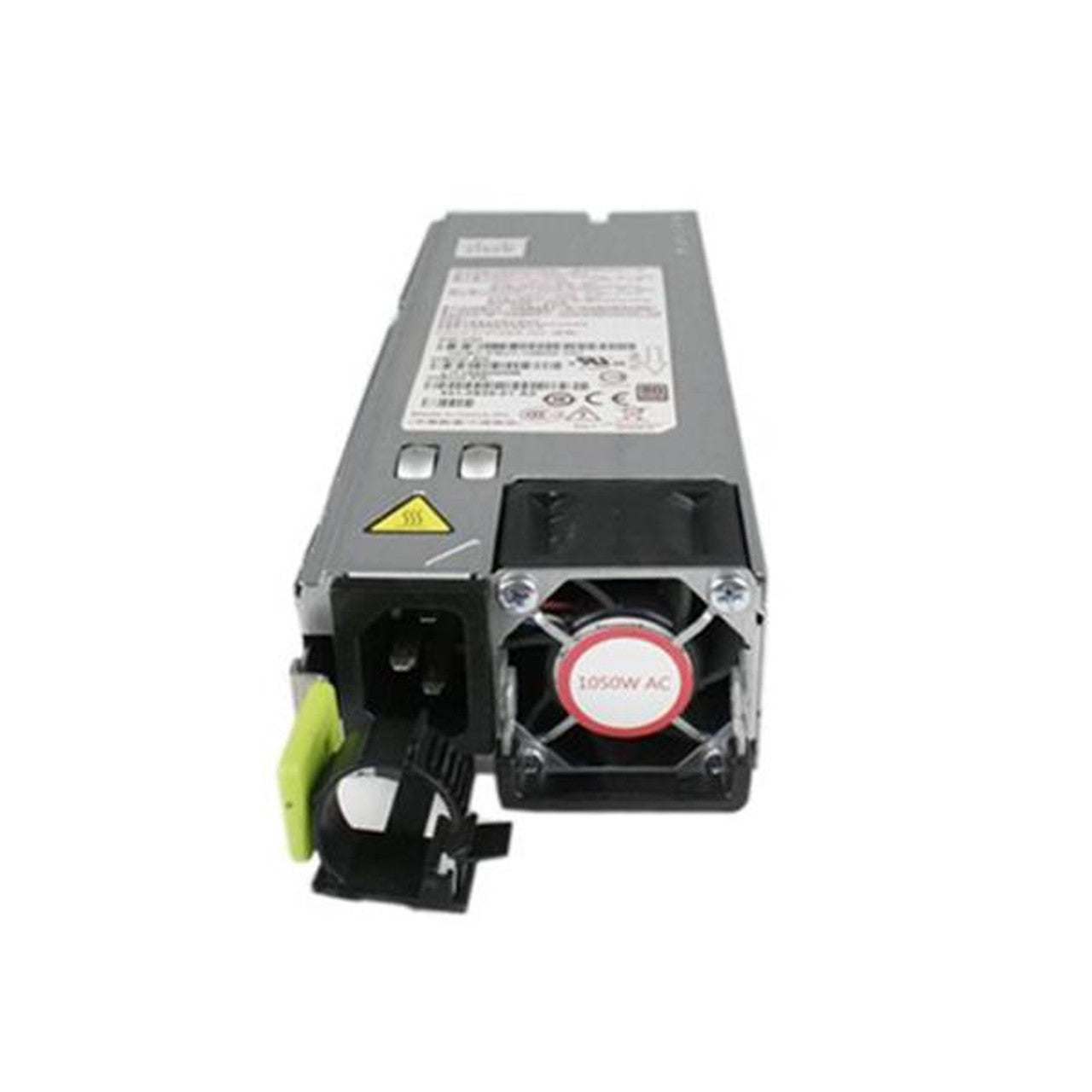

Cisco UCSC-PSUF-1050W | UCS C-Series 1050W AC Power Supply, 80Plus Platinum
SKU:UCSC-PSUF-1050W
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This hot-swappable 1050 W AC power supply module is designed for Cisco UCS C-Series rack servers and is documented in the UCS C240 SD M5 installation guide. It suits data centre deployments that need primary power or 1+1 redundant AC power for a rack server.
The RSP2 form factor unit delivers up to 1050 W at 200-240 VAC and 800 W at 100-120 VAC, so it accepts both low-line and high-line AC input at 50-60 Hz. Output is 12 VDC with a 12 VDC standby rail, and the IEC320 input connector takes standard Cisco AC power cords. It is 80Plus Platinum certified, matching Climate Savers Platinum efficiency, which helps keep running costs down in dense racks.
It is listed for the UCS C240 SD M5. Other UCS C-Series M5 models use different 1050 W PSU part numbers, so check the spec sheet for your server model before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable power supply for redundant configurations
- Supports low-line 100-120 VAC and high-line 200-240 VAC input
- 80Plus Platinum certified efficiency
- Delivers 1050 W at high-line input for demanding rack server loads
- 12 VDC main output with 12 VDC standby rail
- Can be sized using the Cisco UCS Power Calculator
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output power: 1050 W at 200-240 VAC
- Output power at low line: 800 W at 100-120 VAC
- Output voltage: 12 VDC
- Standby voltage: 12 VDC
- AC input voltage: Nominal 100-120 VAC and 200-240 VAC (range 90-132 VAC, 180-264 VAC)
- AC input frequency: 50 to 60 Hz nominal (range 47-63 Hz)
- Maximum input current: 12.5 A at 100 VAC, 6.0 A at 208 VAC
- Maximum input volt-amperes: 1250 VA at 100 VAC
- Maximum inrush current: 15 A (sub-cycle duration)
- Maximum hold-up time: 12 ms at 1050 W
- Efficiency: 80Plus Platinum, Climate Savers Platinum
- Form factor: RSP2
- Input connector: IEC320
- Hot-swap: Yes
FAQs
Q: Which servers is this power supply listed for?
A: It is documented in the Cisco UCS C240 SD M5 Server Installation and Service Guide. Other UCS C-Series M5 models use different 1050 W PSU part numbers such as UCSC-PSU1-1050W, so confirm compatibility in your server's spec sheet.
Q: How much power does it deliver on low-line input?
A: It delivers up to 800 W at 100-120 VAC. Full 1050 W output requires 200-240 VAC input.
Q: Can it be replaced while the server is running?
A: Yes. It is a hot-swap module, so in a redundant 1+1 configuration it can be replaced without taking the server offline.
Q: What power cord does it use?
A: It has an IEC320 input connector and uses Cisco AC power cords with IEC C13/C14 connectors.
Q: How do I size power for my server build?
A: Use the Cisco UCS Power Calculator at ucspowercalc.cisco.com to estimate the load for your configuration.
