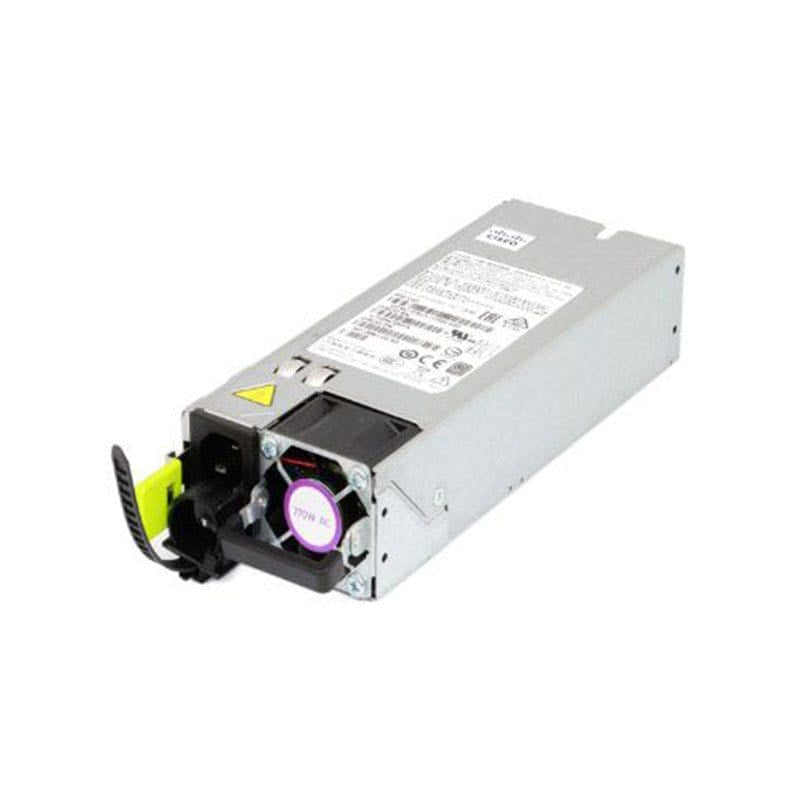

Cisco UCSC-PSU1-770W-D | UCS C-Series 770W AC Platinum PSU, Not Lot 9
SKU:UCSC-PSU1-770W-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a hot-swappable 770W AC power supply for Cisco UCS C-Series rack servers, including the C220 M7. It is the -D variant, rated 80 Plus Platinum, and is intended for data centre and enterprise deployments outside regions governed by EU/UK Lot 9.
The unit delivers up to 770W at 12 VDC with a 12 VDC standby rail. It accepts both low-line input at 100-120 VAC and high-line input at 200-240 VAC, at 50-60 Hz, through an IEC320 C14 inlet. Maximum input current is 9.5A at 100 VAC and 4.5A at 208 VAC, with a maximum hold-up time of 12 ms at 770W and a maximum inrush current of 15A. It uses the RSP2 form factor and carries Climate Savers Platinum efficiency.
One power supply is required in a supported server, and a second can be added for 1+1 redundancy. This variant is not Lot 9 compliant, so deployments in EU, EEA, UK and Switzerland shipments require Titanium-rated units such as UCSC-PSU1-1200W-D.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable design for 1+1 redundancy in supported C-Series servers
- 80 Plus Platinum efficiency rating
- Supports both low-line (100-120 VAC) and high-line (200-240 VAC) input
- Listed as the high-line 210 VAC PSU option for the C220 M7
- One PSU is mandatory per server and a second can be added for redundancy
- Not EU/UK Lot 9 compliant, Titanium-rated PSUs are required for Lot 9 regions
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco part number: UCSC-PSU1-770W-D
- Maximum output power per PSU: 770W
- Output voltage: 12 VDC
- Standby voltage: 12 VDC
- AC input voltage: 100-120 VAC and 200-240 VAC nominal (90-132 VAC and 180-264 VAC range)
- AC input frequency: 50-60 Hz nominal (47-63 Hz range)
- Maximum AC input current: 9.5A at 100 VAC, 4.5A at 208 VAC
- Maximum input volt-amperes: 950 VA at 100 VAC
- Maximum inrush current: 15A (sub-cycle duration)
- Maximum hold-up time: 12 ms at 770W
- Efficiency rating: 80 Plus Platinum, Climate Savers Platinum
- Form factor: RSP2
- Input connector: IEC320 C14
- EU/UK Lot 9: not compliant
FAQs
Q: Is this power supply compliant with EU/UK Lot 9?
A: No. UCSC-PSU1-770W-D is not Lot 9 compliant. For Lot 9 regions such as the EU, EEA, UK and Switzerland, Titanium-rated units such as UCSC-PSU1-1200W-D are required.
Q: Which servers does it work with?
A: It is used in Cisco UCS C-Series M7 rack servers, for example the C220 M7. Up to two power supplies can be fitted per server for 1+1 redundancy.
Q: What input voltage does it accept?
A: It accepts 100-120 VAC and 200-240 VAC nominal input at 50-60 Hz through an IEC320 C14 inlet.
Q: How much power does it deliver?
A: It delivers up to 770W at 12 VDC, with a 12 VDC standby output.
Q: Does it support redundant power?
A: Yes. One power supply is mandatory, and a second can be added in supported C-Series servers for 1+1 redundancy.
