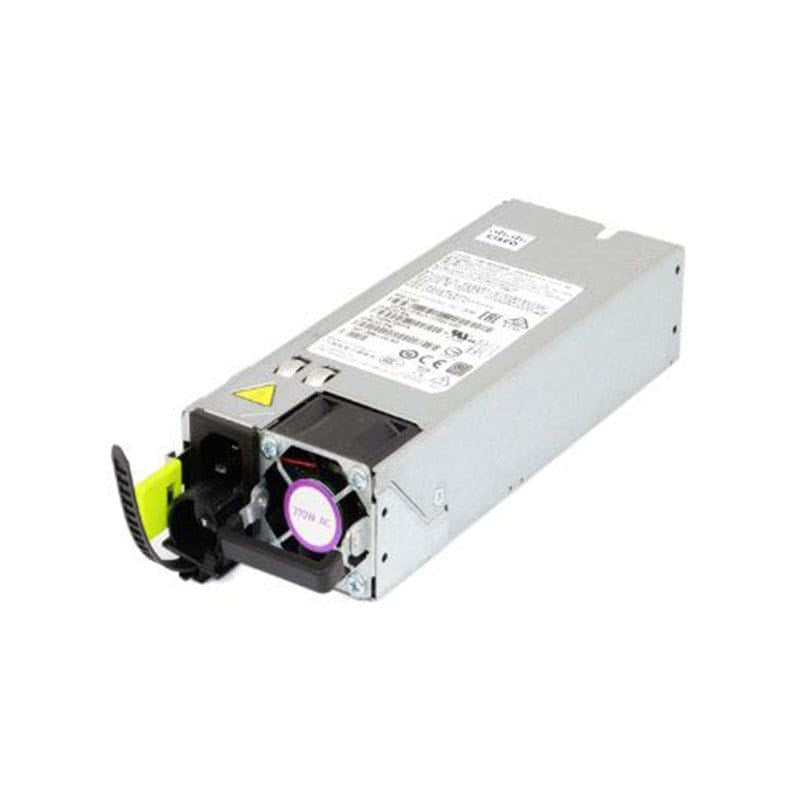

Cisco UCSC-PSU1-770W | UCS C-Series 770W AC Power Supply, Hot-Swappable
SKU:UCSC-PSU1-770W
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 770W AC power supply module is built for Cisco UCS C-Series rack servers, giving 1U and 2U servers in enterprise data centres a primary or redundant AC power source. It is the variant that is not EU/UK Lot 9 compliant, so it suits deployments where that compliance is not required.
The module delivers up to 770W at 12 VDC main plus a 12 VDC standby output. It accepts nominal 100-120 VAC and 200-240 VAC at 50-60 Hz, with a maximum input current of 9.5 A at 100 VAC and 4.5 A at 208 VAC. Maximum input is 950 VA at 100 VAC, inrush current is 15 A for a sub-cycle duration, and hold-up time is 12 ms at 770W. The unit is hot-swappable and supports 1+1 redundancy when two power supplies are installed.
Cisco lists this part number in the installation guides for UCS C-Series servers including the C220 M4, C220 M5, C245 M6 and the NEBS-certified C220 M4 NEBS. The Cisco CSP 2100 and CMX 3375 appliances also use it.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable power supply module
- 1+1 redundancy when two power supplies are installed
- Wide-range AC input for 100-120 V and 200-240 V environments
- Provides both 12 V main and 12 V standby outputs
- Status LED shows AC input and 12 V main/standby state
- Used in the NEBS-certified (Level 1) Cisco UCS C220 M4 NEBS server
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output power per PSU: 770W
- Output voltage: 12 VDC main
- Standby voltage: 12 VDC
- AC input voltage: nominal 100-120 VAC and 200-240 VAC (range 90-132 VAC, 180-264 VAC)
- AC input frequency: 50-60 Hz nominal (range 47-63 Hz)
- Maximum AC input current: 9.5 A at 100 VAC, 4.5 A at 208 VAC
- Maximum input volt-amperes: 950 VA at 100 VAC
- Maximum inrush current: 15 A (sub-cycle duration)
- Maximum hold-up time: 12 ms at 770W
- Redundancy: hot-swappable, 1+1 with two power supplies installed
- Variant: not EU/UK Lot 9 compliant
FAQs
Q: Which servers does this power supply work with?
A: Cisco lists this part number for UCS C-Series rack servers including the C220 M4, C220 M5, C245 M6 and C220 M4 NEBS. It is also listed for the Cisco CSP 2100 and CMX 3375 appliances.
Q: Can I run two of these for redundancy?
A: Yes. The module is hot-swappable and supports 1+1 redundancy when two power supplies are installed in the server.
Q: What AC input voltage does it accept?
A: It accepts nominal 100-120 VAC and 200-240 VAC at 50-60 Hz. Maximum input current is 9.5 A at 100 VAC and 4.5 A at 208 VAC.
Q: How does this differ from the UCSC-PSU1-770W-D variant?
A: This SKU is the variant that is not EU/UK Lot 9 compliant. Newer M7 servers use the -D variant, UCSC-PSU1-770W-D.
