Cisco UCSC-PSU1-1600W-D | UCS C-Series 1600W 200-240V AC Platinum Power Supply
SKU:UCSC-PSU1-1600W-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

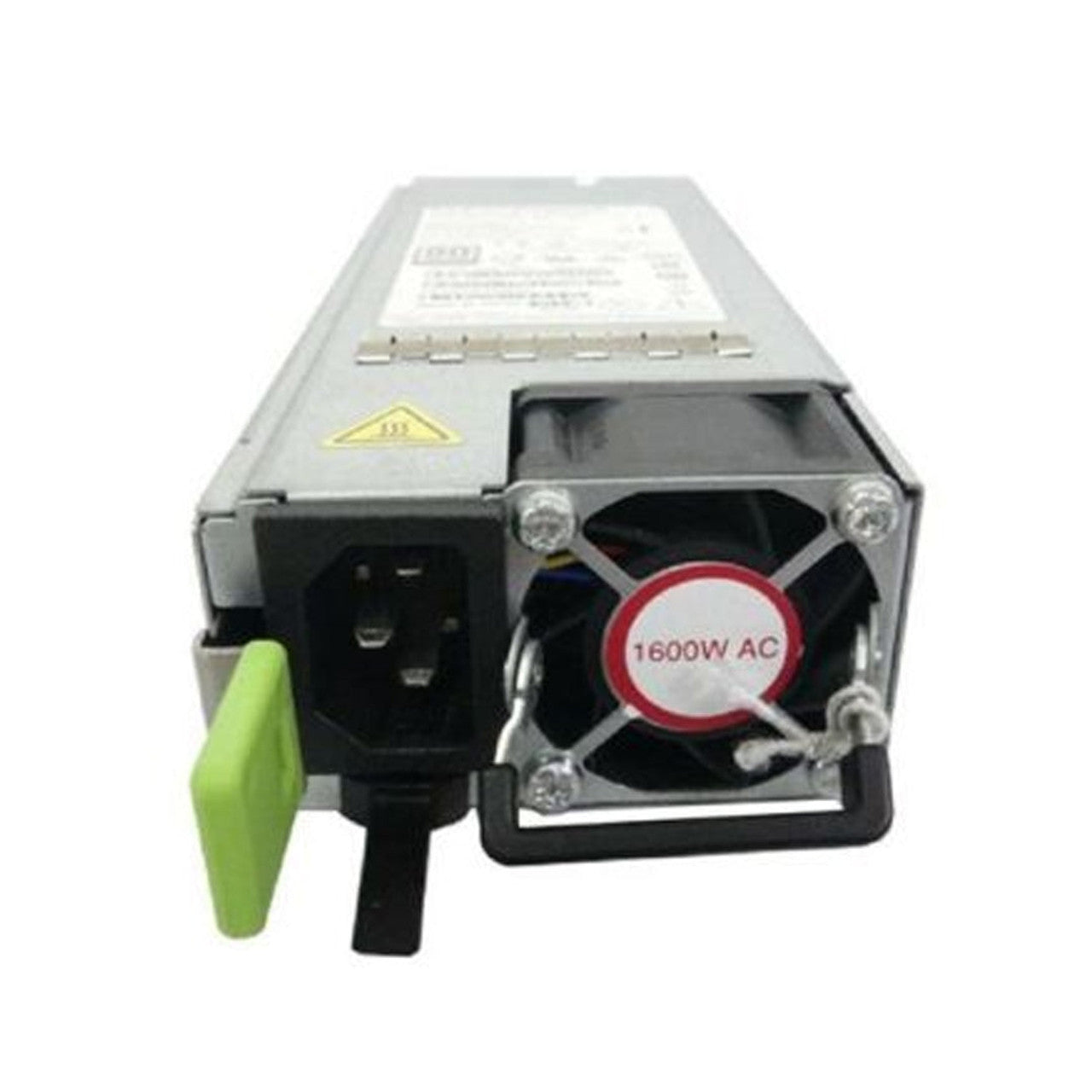

The UCSC-PSU1-1600W-D is a hot-swappable 1600 W AC power supply module in the RSP2 form factor for Cisco UCS C-Series rack servers, including the C220 M8. It suits data centre and enterprise deployments that supply high-line 200-240 V AC, either as the primary supply or as part of a redundant pair.
The module is 80 PLUS Platinum rated, with efficiency of up to 91% at 230 V input. It takes 200-240 V AC at 50-60 Hz through an IEC320 C14 inlet, with an allowable input window of 180-264 V. Output is 1600 W at 12 VDC, plus a 12 V standby rail rated to 36 W. Maximum input is 1758 W at 230 V and 1778 W at 208 V, with a 12 ms ride-through time at full load during input dropout. Output is limited to 800 W when run from low-line input of 100-127 V.
This 200-240 V high-line variant is listed in the technical specifications of the Cisco UCS C220 M8 Server Installation and Service Guide. Check your server's approved PSU and power cord list before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 80 PLUS Platinum efficiency to reduce power losses and heat in the rack
- Hot-swappable RSP2 form factor module for Cisco UCS C-Series rack servers
- Supports redundant power supply configurations in supported UCS C-Series servers
- 12 ms ride-through time at 100% load during input dropout
- High-line 200-240 V AC input via a standard IEC320 C14 inlet
- 12 V main output with a separate 12 V standby rail
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco part number: UCSC-PSU1-1600W-D
- Maximum rated output: 1600 W (limited to 800 W on 100-127 V low-line input)
- Efficiency rating: 80 PLUS Platinum
- Maximum rated efficiency: up to 91% at 230 V, 90% at 208 V
- Input connector: IEC320 C14
- Nominal input voltage: 200 to 240 V AC
- Maximum allowable input voltage: 180 to 264 V AC
- Input frequency: 50 to 60 Hz (47 to 63 Hz allowable)
- Output voltage: 12 VDC
- Standby voltage: 12 VDC, 36 W maximum
- Nominal input current at 230 V: 7.9 A
- Maximum input at 230 V: 1758 W / 1813 VA
- Maximum input at 208 V: 1778 W / 1833 VA
- Maximum rated power factor: 0.97
- Maximum inrush current: 30 A peak for 0.2 ms
- Ride-through time: 12 ms at 100% load
FAQs
Q: What input voltage does this power supply need?
A: It is designed for 200-240 V AC high-line input at 50-60 Hz through an IEC320 C14 connector, with an allowable range of 180-264 V.
Q: Can it run from a 100-127 V low-line supply?
A: It will operate, but output is limited to 800 W on 100-127 V input. For the full 1600 W rating, use a 200-240 V feed.
Q: Which servers does it work with?
A: It is listed in the technical specifications of the Cisco UCS C220 M8 Server Installation and Service Guide. Check the specification sheet for your specific UCS C-Series server for the approved PSU list.
Q: Is it hot-swappable and suitable for redundant setups?
A: Yes. It is a hot-swappable RSP2 module and supports redundant power supply configurations in supported UCS C-Series servers.
Q: What are the standby and main output voltages?
A: The main output is 12 VDC at up to 1600 W, and the standby output is 12 VDC at up to 36 W.
