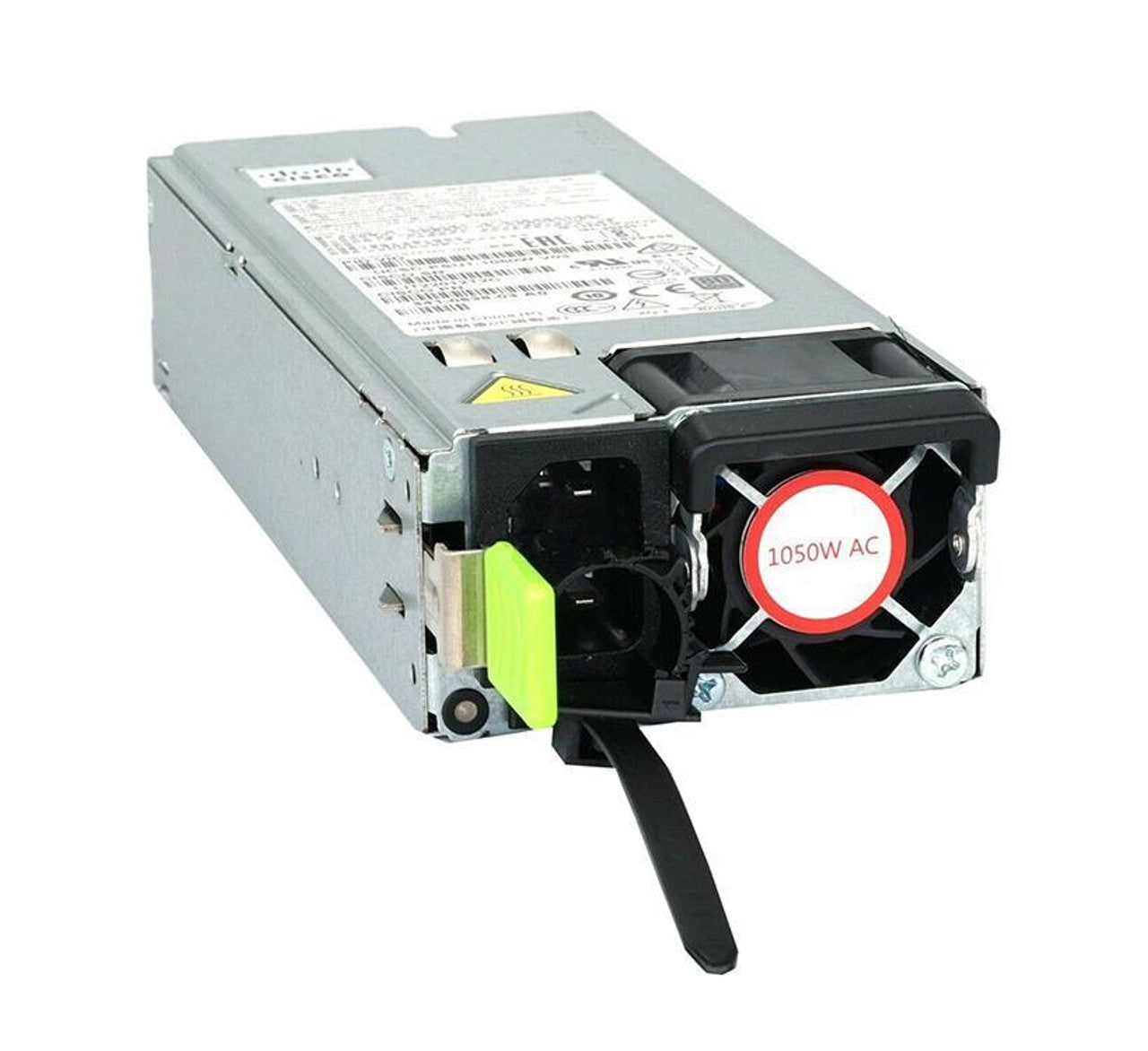

Cisco UCSC-PSU1-1050W | UCS C-Series 1050W AC Platinum Power Supply, 100-240V
SKU:UCSC-PSU1-1050W
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This hot-swappable 1050 W AC power supply is built for Cisco UCS C-Series rack servers and suits data centre and enterprise deployments that need primary or redundant AC power. It uses the RSP2 form factor and is certified 80 Plus Platinum, with Climate Savers Platinum efficiency.
It accepts both low-line (100-120 VAC) and high-line (200-240 VAC) input at 50-60 Hz, delivering up to 800 W at 100-120 VAC and the full 1050 W at 200-240 VAC. The main output is 12 VDC with a 12 VDC standby rail. Maximum input current is 12.5 A at 100 VAC, and the unit connects through a standard IEC320 C14 inlet. This SKU is the variant described by Cisco as not EU/UK Lot 9 compliant.
It is listed as a PSU option for the Cisco UCS C220 M5, C240 M5, C225 M6 and C245 M6. One power supply is required per server and a second can be fitted for 1+1 redundancy.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable power supply for Cisco UCS C-Series rack servers
- Supports 1+1 redundancy when a second power supply is installed
- Climate Savers Platinum efficiency, 80 Plus Platinum certified
- Accepts both low-line (100-120 VAC) and high-line (200-240 VAC) input
- Delivers the full 1050 W on high-line input
- Standard IEC320 C14 inlet in an RSP2 form factor
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco part number: UCSC-PSU1-1050W
- Maximum output power: 1050 W at 200-240 VAC, 800 W at 100-120 VAC
- AC input voltage: nominal 100-120 VAC and 200-240 VAC (range 90-132 VAC, 180-264 VAC)
- AC input frequency: nominal 50 to 60 Hz (range 47-63 Hz)
- Maximum AC input current: 12.5 A at 100 VAC, 6.0 A at 208 VAC
- Maximum input volt-amperes: 1250 VA at 100 VAC
- Maximum inrush current: 15 A (sub-cycle duration)
- Maximum hold-up time: 12 ms at 1050 W
- Main output voltage: 12 VDC
- Standby output voltage: 12 VDC
- Efficiency rating: Climate Savers Platinum, 80 Plus Platinum certified
- Form factor: RSP2
- Input connector: IEC320 C14
- Redundancy: hot-swappable, supports 1+1
FAQs
Q: Which servers is this power supply used in?
A: It is listed as a PSU option for Cisco UCS C-Series rack servers, including the C220 M5, C240 M5, C225 M6 and C245 M6. Check the individual server spec sheet for the supported PSU list.
Q: How much power does it deliver on 110V input?
A: It delivers up to 800 W at 100-120 VAC. The full 1050 W is available at 200-240 VAC.
Q: Can I run two for redundancy?
A: Yes. One power supply is required, and a second can be added for 1+1 redundancy. Up to two PSUs are supported per server.
Q: What power cord does it need?
A: It has an IEC320 C14 inlet, so it needs a matching Cisco power cord for your server and power distribution.
Q: How does this differ from other UCS C-Series power supplies?
A: This is the 1050 W AC Platinum model, described by Cisco as not EU/UK Lot 9 compliant. Related options include the UCSC-PSU1-1200W, UCSC-PSU1-1600W, UCSC-PSU1-2300W and the 1050 W DC variant UCSC-PSUV2-1050DC.
