Cisco

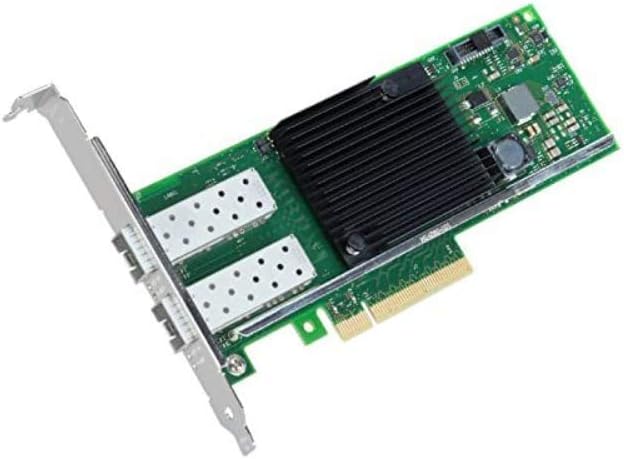

Cisco UCSC-PCIEID10GF-D | UCS Dual-Port 10G SFP+ Network Adapter, X710-DA2

SKU:UCSC-PCIEID10GF-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS Intel X710-DA2 is a dual-port 10GbE SFP+ network adapter for Cisco UCS C-Series rack servers. It is built on the Intel Ethernet Controller X710-BM2 and suits virtualised, cloud, NFV and enterprise data-centre workloads that need 10GbE over fibre or direct-attach copper.

The adapter has two SFP+ cages and a PCIe 3.0 x8 host interface in a low-profile form factor measuring 167 mm x 69 mm. Optical ports run at 10GbE or 1GbE, while direct-attach cables run at 10GbE. Hardware offloads include SR-IOV with 128 virtual functions per device, VMDq, VxLAN, GENEVE and NVGRE offloads, and Intel Ethernet Flow Director. Power is drawn from the PCIe slot, with typical consumption of 3.3 W with direct-attach cables up to 4.5 W with 10GBASE-LR optics. No licence or subscription is required.

It is listed for Cisco UCS C220 M5/M6/M7, C240 M5/M6/M7, C225 M6, C245 M6, C480 M5 and S3260 M5 servers. Supported Cisco optics and cables include SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, SFP-10G-AOC7M and SFP-H10GB-CU1M/3M/5M. The quad-port sibling of this adapter is UCSC-PCIEIQ10GF-D.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Network virtualisation offloads including VxLAN, GENEVE, NVGRE, MPLS and VxLAN-GPE with NSH
- Intel Ethernet Flow Director for hardware-based application traffic steering
- Dynamic Device Personalization (DDP) for efficient NFV and cloud packet processing
- DPDK-optimised packet processing
- SR-IOV and VMDq I/O virtualisation with Flexible Port Partitioning and Intel Adaptive Virtual Function
- IP, SCTP, TCP and UDP checksum offloading for IPv4 and IPv6
- Platform resiliency with firmware corruption detection and automated recovery
- PXE and UEFI boot support, Receive-Side Scaling and Virtual Machine Load Balancing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Controller: Intel Ethernet Controller X710-BM2 (dual port)
- Ports: 2 x SFP+ cages (direct-attach copper and optical transceivers)
- Supported media: 10GBASE-SR, 10GBASE-LR and SFP+ direct attach copper
- Data rate per port: optical 10/1GbE, direct attach 10GbE
- Host interface: PCIe 3.0 (8 GT/s) x8
- Form factor: low-profile, 167 mm x 69 mm
- Queues: 1,536 Tx and Rx queues per device
- SR-IOV: 128 virtual functions per device (64 per port)
- VMDq: up to 256 VMDq VMs
- VLAN support: up to 4096 VLAN tags with insertion, stripping and filtering
- Packet filtering: 1536 exact-match packets, 512 hash entries each for unicast and multicast
- Time synchronisation: IEEE 1588, 802.1as
- Interrupt levels: INT A, MSI, MSI-X
- Power, dual-port 10GBASE-SR: 4.3 W typical, 4.8 W maximum
- Power, dual-port 1000BASE-SX: 4.0 W typical, 4.3 W maximum
- Power, dual-port 10GBASE-LR: 4.5 W typical, 5.1 W maximum
- Power, dual-port direct attach: 3.3 W typical, 3.7 W maximum
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 70 C
- Storage humidity: maximum 90% non-condensing at 35 C
- LED indicators: link (solid) and activity (blinking), green for 10Gbps and yellow for 1Gbps
- Certifications: FCC A, UL, CE, VCCI, BSMI, CTICK, KCC, RoHS (EU 2011/65/EU)

FAQs

Q: Does this network adapter need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.

Q: Does it need external power?
A: No. It is powered from the PCIe slot. Typical draw is 3.3 W with direct-attach cables up to 4.5 W with 10GBASE-LR optics.

Q: Which Cisco UCS servers is it listed for?
A: It is listed for Cisco UCS C220 M5/M6/M7, C240 M5/M6/M7, C225 M6, C245 M6, C480 M5 and S3260 M5 servers. On the C220 M7 it is listed for PCIe Riser 1, 2 or 3 as a half-height, half-length single-slot card.

Q: Which Cisco optics and cables work with it?
A: Cisco SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, SFP-10G-AOC7M and the SFP-H10GB-CU1M, 3M and 5M direct-attach cables.

Q: How does it differ from UCSC-PCIEIQ10GF-D?
A: This model has two 10G SFP+ ports (X710-DA2). UCSC-PCIEIQ10GF-D is the quad-port version of the adapter.
