Cisco UCSC-PCIE-QS100GF | UCS C-Series 100G QSFP28 NIC, QLE45611HLCU, x16 HHHL
SKU:UCSC-PCIE-QS100GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

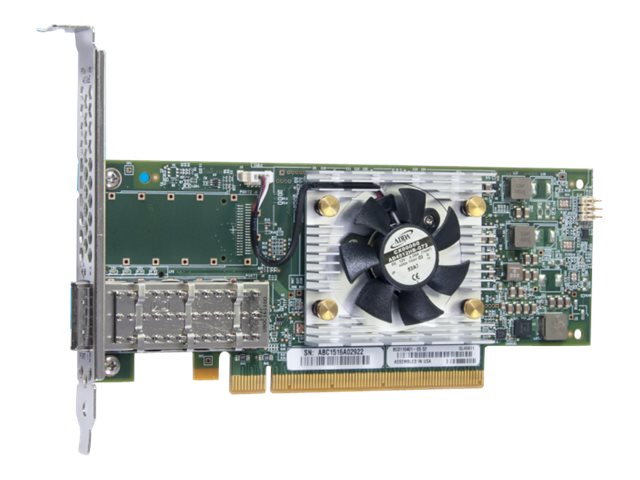

The UCSC-PCIE-QS100GF is a single-port 100 Gigabit Ethernet network interface card for Cisco UCS C-Series rack servers. It is built on the QLogic QLE45611HLCU adapter and suits data centre, virtualisation and storage-network workloads that need high-bandwidth server connectivity.
The card provides one 100GbE QSFP28 port and connects to the host over a PCIe 3.0 x16 interface, giving it the bus width needed for 100G throughput. It is a half-height, half-length (HHHL) card that fits the standard PCIe risers, and it installs in Riser 1 or 2 on the UCS C220 M5 where an x16 electrical slot is available.
It is listed as a supported PCIe option card in the Cisco UCS C220 M5 and C480 M5 specification sheets, and it uses QSFP28 optics and DAC cables. The card is bus-powered from the PCIe slot. Confirm exact server and firmware support in the Cisco UCS Hardware Compatibility List before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Single-port 100GbE connectivity for UCS C-Series rack servers
- Half-height, half-length form factor fits the standard PCIe risers
- x16 PCIe connection supports full 100G throughput
- QSFP28 port works with QSFP28 optics and DAC cables
- Listed as a supported option card in the UCS C220 M5 and C480 M5 spec sheets
- Based on the QLogic QLE45611HLCU adapter
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco PID: UCSC-PCIE-QS100GF
- PID description: Qlogic QLE45611HLCU single port 100G NIC
- Category: Network Interface Cards (NICs), 100 Gb NICs
- Ports: 1 x 100GbE QSFP28 (single port)
- Controller: QLogic QLE45611HLCU
- Host interface: PCIe 3.0 x16
- Card height: HHHL (half-height, half-length)
- Electrical slot: x16
- Location: PCIe Riser 1 or 2 (UCS C220 M5)
- Power: bus-powered from the PCIe slot
FAQs
Q: Which Cisco UCS servers does this NIC work with?
A: It is listed as a supported PCIe option card in the Cisco UCS C220 M5 spec sheet (Riser 1 or 2, x16 HHHL) and in the C480 M5 spec sheet. Confirm exact server and firmware support in the Cisco UCS Hardware Compatibility List.
Q: What optics or cables does the port use?
A: The card has a single QSFP28 port and uses QSFP28 optics and DAC cables.
Q: Which PCIe slot does it need?
A: It needs a PCIe 3.0 x16 electrical slot. On the UCS C220 M5 it installs in Riser 1 or 2.
Q: How does this card differ from other UCS 100G NICs?
A: This SKU is the single-port 100G card based on the QLogic QLE45611HLCU, in a half-height, half-length x16 form factor.
