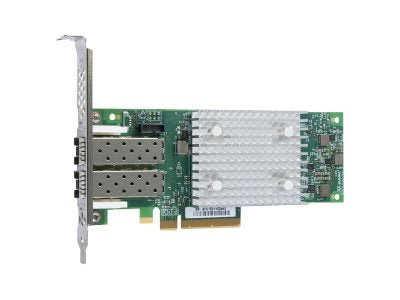

Cisco UCSC-PCIE-QD32GF | UCS C-Series Dual-Port 32G FC HBA, SR Optic, PCIe 3.0 x8
SKU:UCSC-PCIE-QD32GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a dual-port 32Gb Fibre Channel host bus adapter from the Cisco UCS C-Series and Marvell QLogic QLE2700 family, model QLE2742-CSC. It is built for UCS C-Series rack servers that need high-performance SAN connectivity, including all-flash arrays, high-density virtualised and private cloud environments, and mission-critical enterprise applications.
The card provides 2 x 32GFC ports with multimode SR optics and a PCIe 3.0 x8 host interface, in a low-profile PCIe form factor with a standard-height bracket. Performance reaches up to 650K IOPS per port and 1.3 million IOPS per adapter, with 2,048 concurrent logins and 2,048 active exchanges per port. Each port also runs at 16GFC and 8GFC for backward compatibility. NPIV, forward error correction, buffer-to-buffer credit recovery and FC-NVMe are supported, and boot support covers BIOS and UEFI. No licence or subscription is required.
Cisco lists compatibility with UCS C220 M5, C240 M5 and C480 M5 servers, plus earlier M4 models. It has been tested with Cisco MDS 9132T and 9710 switches on 32GFC fabrics, and with MDS 250i, 9148S, 9710 and 9396S switches on 16GFC fabrics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Port isolation design, with each port having its own function, transmit and receive buffers, on-chip CPU, DMA channels and firmware image
- StorFusion technology with HBA Port Diagnostics, Link Cable Beacon and Read Diagnostic Parameters
- Forward error correction enabled at 32GFC
- Automatic buffer-to-buffer credit recovery
- NPIV for multiple virtual ports per physical port
- T10 Protection Information for end-to-end data integrity
- FC-NVMe support
- VMware vCenter integration and QConvergeConsole unified management
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Marvell model number: QLE2742-CSC
- Cisco part number (PID): UCSC-PCIE-QD32GF
- Ports: 2 x 32GFC, multimode SR optic
- Host interface: PCIe 3.0 x8
- Backward compatibility: 16GFC and 8GFC
- Performance: up to 650K IOPS per port, 1.3 million IOPS per adapter
- Logins: 2,048 concurrent logins and 2,048 active exchanges per port
- Port virtualisation: NPIV
- FC compliance: FCP-4, FC-TAPE, FC-GS-8, FC-PI-5, FC-PI-6, FC-LS-4, FC-FS-4, FC-NVMe
- Boot support: BIOS, UEFI
- Management tools: QConvergeConsole (GUI and CLI)
- APIs: SNIA HBA API V2, SMI-S
- Form factor: low-profile PCIe card, 6.6 in x 2.731 in
- Bracket: standard-height
- Maximum cable distance at 32GFC: 20 m (OM2), 70 m (OM3), 100 m (OM4/OM5)
- Maximum cable distance at 16GFC: 35 m (OM2), 100 m (OM3), 125 m (OM4/OM5)
- Maximum cable distance at 8GFC: 50 m (OM2), 150 m (OM3), 190 m (OM4/OM5)
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 70 C
- Operating humidity (non-condensing): 10% to 90%
FAQs
Q: Does this HBA need a licence or subscription?
A: No. No licence or subscription is required. The QConvergeConsole management software is provided by Marvell.
Q: How is the adapter powered?
A: It is bus-powered from the PCIe 3.0 x8 slot, so no separate power connection is needed.
Q: Which Cisco servers and switches is it listed for?
A: It is listed for Cisco UCS C220 M5, C240 M5 and C480 M5 servers, plus earlier M4 models. It has been tested with Cisco MDS 9132T and 9710 switches on 32GFC fabrics, and with MDS 250i, 9148S, 9710 and 9396S switches on 16GFC fabrics.
Q: Which optics does it use?
A: It uses multimode SR optics, and only Marvell-branded FC SFP optical modules are supported. The compatible module is the Marvell FTLF8532P4BCV-QM.
Q: Can it connect to 16GFC or 8GFC fabrics?
A: Yes. Each port is backward compatible with 16GFC and 8GFC, with maximum cable distances shortening as the link speed increases.
