Cisco

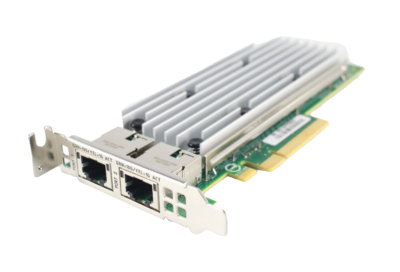

Cisco UCSC-PCIE-QD10GC | UCS C-Series Dual-Port 10GBASE-T Network Adapter, PCIe

SKU:UCSC-PCIE-QD10GC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco UCS C-Series converged network adapter is built on the Marvell FastLinQ QL41162HLRJ-CI controller. It suits rack and tower servers where several 1GbE links need to be consolidated onto 10GbE, and it is listed as compatible with Cisco UCS C4200 Series servers. Typical uses include server virtualisation, multitenant cloud and SDN overlay networks, converged iSCSI and FCoE storage, and telco NFV workloads.

The card provides two 10GBASE-T RJ-45 ports with 1G/10G auto-negotiation, delivering full line-rate 10GbE over a PCIe Gen 3 x8 host interface. It is a dual-port 10GBASE-T RJ-45 adapter in the PCIe MD2 short, low-profile form factor. Universal RDMA covers RoCE, RoCEv2 and iWARP, with hardware offload for FCoE and iSCSI. Switch-independent NPAR supports up to 16 partitions, and SR-IOV supports up to 192 virtual functions.

Cabling runs 37 to 55 m on CAT6 and up to 100 m on CAT6a/7. The adapter is bus-powered from the PCIe slot and supports Windows, VMware and Linux.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full line-rate 10GbE performance across both ports
- Universal RDMA (RoCE, RoCEv2, iWARP) running concurrently
- Switch-independent NIC partitioning (NPAR) with concurrent SR-IOV
- Hardware offloads for GRE, NVGRE, GENEVE and VXLAN tunnels
- Fully offloaded FCoE and iSCSI storage over Ethernet
- NVMe-oF over TCP and RDMA support
- Data Center Bridging (DCBX, PFC, ETS, ECN, DCQCN)
- Energy Efficient Ethernet (IEEE 802.3az) and secure firmware updates

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 2 x 10GBASE-T RJ-45
- Port speeds: 1G / 10G auto-negotiation, full duplex
- Host interface: PCIe Gen 3 x8 (8 GT/s)
- Form factor: PCIe MD2 short, low-profile, 167.65 x 68.90 mm
- Controller: Marvell FastLinQ QL41162HLRJ-CI
- Protocols: L2, RoCE, RoCEv2, iWARP, iSCSI, FCoE
- SR-IOV: up to 192 virtual functions
- NPAR: up to 16 physical functions per adapter
- Jumbo frames: up to 9,600 bytes
- DPDK: up to 38 million packets per second at 64B
- FCoE offload performance: up to 3.6 million IOPS
- iSCSI offload performance: up to 2.9 million IOPS
- Boot support: PXE 2.0, UEFI, iSCSI remote boot, FCoE remote boot
- Tunnel offloads: VXLAN, GENEVE, NVGRE, GRE
- Cable distance: 37 to 55 m on CAT6, 100 m on CAT6a/7
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 65 C
- Humidity (non-condensing): 10% to 90%
- Cooling requirement: 150 LFM at 55 C
- Compliance: RoHS

FAQs

Q: Does this adapter need a licence or subscription?
A: No licence or subscription is required for the adapter itself. Marvell's QCC and QCS management tools are available for it.

Q: How is the adapter powered?
A: It is bus-powered from the PCIe x8 slot. It needs airflow of 150 LFM at 55 C.

Q: Which servers and operating systems does it work with?
A: It is listed as compatible with Cisco UCS C4200 Series servers and supports Windows, VMware and Linux.

Q: What cabling does it use and how far can it run?
A: It uses 10GBASE-T RJ-45 copper. Run 37 to 55 m on CAT6, or up to 100 m on CAT6a/7.

Q: What PCIe slot does it need?
A: It uses a PCIe Gen 3 x8 interface in the MD2 short, low-profile form factor, and supports PCIe upconfigure.
