Cisco UCSC-PCIE-IRJ45 | UCS C-Series Quad-Port 1GbE RJ-45 PCIe x4 Adapter
SKU:UCSC-PCIE-IRJ45
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

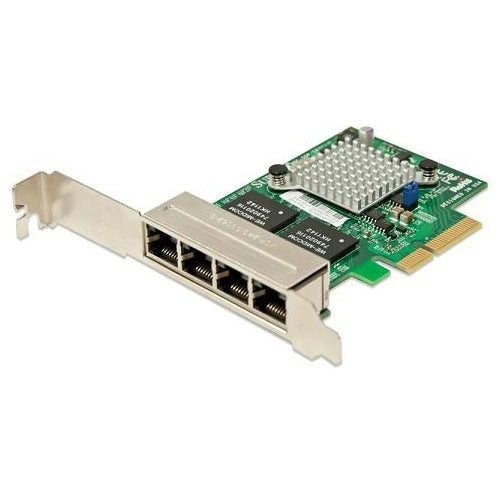

The UCS C-Series Intel i350 Quad Port 1Gb Adapter is a PCIe network interface card for Cisco UCS C-Series rack servers. It adds extra 1GbE copper connectivity for network segmentation, virtualisation host networking and multi-homed server deployments. This SKU is the server-installed version, quad port 1GbE RJ-45 on a PCIe x4 interface.
The card is built on the Intel Ethernet Controller I350 and provides four 10/100/1000BASE-T RJ-45 ports, each running at 10, 100 or 1000 Mbps. It uses a 4-lane PCIe 2.1 interface at 5 GT/s and operates in x4, x8 and x16 slots. Jumbo frames up to 9.5 KB are supported, and typical power consumption is 5.0 W, drawn from the PCIe slot. No licence or subscription is required.
The adapter is listed for UCS C220 M6, C240 M6, C220 M5, C240 M5, C480 M5 and S3260 M5 servers, and the C220 M3 and M4 spec sheets list it as a half-height NIC option. Connect it with standard RJ-45 Ethernet cabling.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Receive Side Scaling (RSS) for Windows with up to eight queues per port
- Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP)
- Jumbo frame support up to 9.5 KB
- Low Latency Interrupts that can bypass automatic interrupt moderation based on data sensitivity
- Intel I/O Acceleration Technology for higher system throughput
- Plug and play specification support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Controller: Intel Ethernet Controller I350 (I350T4V2)
- Ports: 4 x 10/100/1000BASE-T RJ-45 copper
- Data rate: 10/100/1000 Mbps per port
- Bus type: PCIe 2.1 (5 GT/s)
- Bus width: 4-lane PCIe, operable in x4, x8 and x16 slots
- Jumbo frames: up to 9.5 KB
- Receive Side Scaling (RSS) for Windows: up to eight queues per port
- Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
- Cabling: CAT3 or higher for 10BASE-T, CAT5 or higher for 100BASE-TX, CAT5e or higher for 1000BASE-T
- Typical power consumption: 5.0 W
- Operating temperature: 0 to 55 C (32 to 131 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Storage humidity: 90% non-condensing relative humidity at 35 C
- LED indicators: speed LED off = 10 Mb/s, green = 100 Mb/s, amber = 1 Gb/s
- Length: 13.54 cm (5.33 in)
- Width: 6.89 cm (2.71 in)
- Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
FAQs
Q: Does this adapter need a licence or subscription?
A: No. No licence or subscription is required to use the adapter.
Q: How is the adapter powered?
A: It draws power from the PCIe slot. Typical power consumption is 5.0 W.
Q: Which UCS servers is it listed for?
A: It is listed for UCS C220 M6, C240 M6, C220 M5, C240 M5, C480 M5 and S3260 M5 servers, and the C220 M3 and M4 spec sheets list it as a half-height NIC option.
Q: What cabling does it use?
A: Standard RJ-45 Ethernet cable. Use CAT5e or higher for 1000BASE-T links.
Q: How does this SKU differ from UCSC-PCIE-IRJ45=?
A: UCSC-PCIE-IRJ45 is the server-installed order code, while UCSC-PCIE-IRJ45= is the spare adapter order code. Both are the same quad-port 1GbE RJ-45 PCIe x4 card.
