Cisco

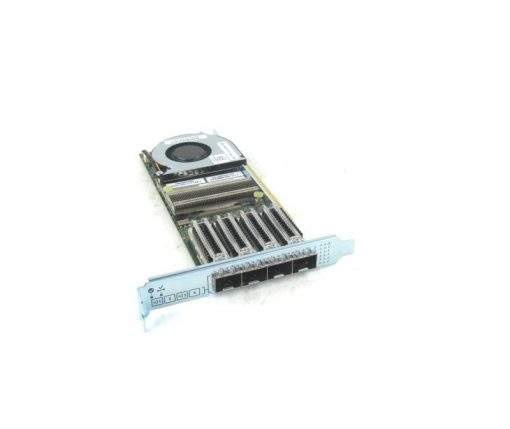

Cisco UCSC-PCIE-C25Q-04 | UCS VIC 1455 Quad-Port 10/25G SFP28 Network Adapter, PCIe

SKU:UCSC-PCIE-C25Q-04

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS Virtual Interface Card (VIC) 1455 is a quad-port 10/25G SFP28 half-height PCIe adapter for Cisco UCS C-Series M5/M6 and S-Series M5 rack servers. It carries Ethernet and FCoE traffic and presents dynamically configured NIC or HBA interfaces to the host, which suits big data and HPC, large-scale virtual machine deployments and high-bandwidth storage targets.

The card provides four 10/25-Gbps Ethernet and FCoE SFP28 ports on a PCIe 3.0 x16 interface, giving 128 Gb/s of host throughput. It supports up to 256 virtual interfaces, built on the Cisco custom UCS ASIC, with a maximum power consumption of 27.4 W drawn from the host server PCIe slot. It can be managed through Cisco UCS Manager, Cisco IMC or Cisco Intersight, and no separate licence is listed for the adapter itself.

It is supported in Cisco UCS C220 M5/M6, C240 M5/M6, C225 M6, C245 M6, C125 M5, C240 SD M5, C480 M5, C480 ML M5, C4200 and S3260 M5 servers. It connects to Cisco UCS Fabric Interconnects and Nexus switches, using qualified optics and cables such as SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S and SFP-H25G-CUxM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless design: NIC/HBA personality, MAC/WWN identity, failover, bandwidth and QoS are set from the service profile at boot
- Network interface virtualisation maps each PCIe interface to an interface on the UCS fabric interconnect
- Up to 256 dynamic virtual adapters and interfaces without requiring SR-IOV support from the OS or hypervisor
- usNIC low-latency connectivity, as low as 1 microsecond back-to-back
- Cisco SingleConnect carries LAN, SAN and management traffic over one network
- Stateless offloads for GENEVE, VXLAN and NVGRE, with NetQueue and VMQ/VMMQ
- iSCSI boot, NPIV, NetFlow and Receive Flow Steering support
- RoCEv2 and NVMeoF with RDMA support (UCSM 4.1)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 4 x 10/25-Gbps Ethernet and FCoE SFP28
- Host interface: PCIe 3.0 x16, half-height PCIe form factor
- Host throughput: 128 Gb/s (PCIe x16 Gen3)
- Virtual interfaces: up to 256 NICs/HBAs (approximately eight reserved for internal use)
- ASIC: Cisco UCS custom Application-Specific Integrated Circuit
- Maximum power consumption: 27.4 W
- Dimensions (L x W x H): 6.60 x 2.5 x 0.53 in
- Standards: IEEE 802.3x, 802.1q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, T11 FCoE, SCSI-FCP
- Jumbo frames: up to 9KB
- Minimum release: UCSM 4.0(1a) or standalone 4.0(1a) with VIC firmware 5.0(1c) or later
- Recommended release: UCSM 4.0(4e) or later, standalone 4.0(4h) or later
- Breakout: 4x10G or 4x25G to a ToR switch with IMC; 4x25G with 6536 Fabric Interconnect
- 10G connectivity: supported with FI 6200/6300/6400 and Nexus FEX 2232PP/2348UPQ; not supported with UCS-FI-6536
- Operating systems: VMware vSphere, Microsoft Windows, Red Hat Enterprise Linux, Citrix XenServer, SUSE Linux Enterprise Server, Ubuntu

FAQs

Q: Does the VIC 1455 need a licence or subscription?
A: No licence or subscription is listed for the adapter itself. It is managed through Cisco UCS Manager, Cisco IMC or Cisco Intersight.

Q: Which Cisco UCS servers is it supported in?
A: It is supported in C220 M5/M6, C240 M5/M6, C225 M6, C245 M6, C125 M5, C240 SD M5, C480 M5, C480 ML M5, C4200 and S3260 M5 servers.

Q: Which optics and cables work with the four SFP28 ports?
A: Qualified options include SFP-10G-SR, SFP-10G-LR, SFP-10/25G-CSR-S, SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-H25G-CUxM and SFP-25G-AOC.

Q: Which switches can it connect to?
A: It connects to Cisco UCS Fabric Interconnects in the 6200, 6300, 6400 and 6536 families, and to supported Nexus switches. 10G operation is not supported with the UCS-FI-6536.

Q: How much power does the card draw?
A: It is powered from the host server PCIe slot, with a maximum power consumption of 27.4 W.
