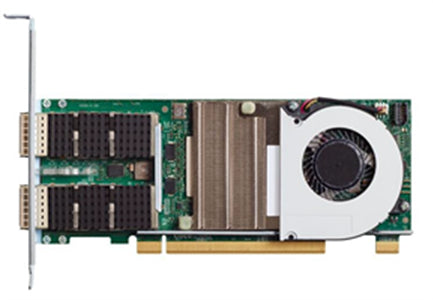

Cisco UCSC-PCIE-C100-04 | UCS VIC 1495 Dual-Port 40/100G QSFP28 PCIe Adapter
SKU:UCSC-PCIE-C100-04
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS VIC 1495 is a dual-port QSFP28 PCIe virtual interface card for Cisco UCS C-Series M5 and M6 rack servers. It carries 40/100-Gbps Ethernet or FCoE and presents PCIe-compliant interfaces to the host that can be configured dynamically as NICs or HBAs, which suits big data and HPC, large-scale virtual machine deployments and high-bandwidth storage targets.
The card has two 40/100G QSFP28 ports, each running at 10/25/40/100-Gbps, on a PCIe 3.0 x16 interface with 128 Gb/s of host throughput. It supports 256 virtual interfaces, with approximately eight reserved for internal use, and is built around a custom Cisco UCS ASIC. Maximum power draw is 28 W. As the PCIe model it differs from the VIC 1497 and VIC 1477 mLOM cards by fitting a standard PCIe slot rather than the mLOM connector.
It is managed through Cisco UCS Manager or Intersight and connects to UCS Fabric Interconnects 6664, 6536, 6332 and 6332-16UP or selected Nexus 3000 and 9000 switches. Supported servers include the C220, C240, C245, C225, C125, C480 and C4200, plus the S3260 M5.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Stateless and agile design, with NIC/HBA count, MAC/WWN identity, failover, bandwidth and QoS set dynamically by the service profile
- Network interface virtualisation maps each PCIe interface to an interface on the UCS fabric interconnect
- Up to 256 dynamic virtual adapters and interfaces without SR-IOV support from the OS or hypervisor, and the hardware is also SR-IOV capable
- Unified I/O consolidates NICs, HBAs, cables and switches because LAN and SAN traffic share one adapter
- Low-latency connectivity through usNIC and DPDK
- Cisco SingleConnect carries LAN, SAN and management traffic on one network
- Stateless offloads for GENEVE, VXLAN and NVGRE, plus iSCSI boot, NetFlow, NPIV, RSS and NVMe over RDMA (RoCEv2)
- Centrally managed by Cisco UCS Manager or Intersight
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x 40/100-Gbps Ethernet and FCoE QSFP28
- Port speeds: 10/25/40/100-Gbps per port
- Host interface: PCIe 3.0 x16 (128 Gb/s throughput)
- Virtual interfaces: 256 (approximately eight reserved for internal use)
- ASIC: Cisco UCS custom Application-Specific Integrated Circuit
- Maximum power consumption: 28 W
- Dimensions (L x W x H): 6.60 x 2.5 x 0.53 in (approx. 168 x 64 x 13.5 mm)
- Standards: IEEE 802.3x, 802.1Q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, prestandard 802.1BR, T11 FCoE, SCSI-FCP
- Jumbo frames: up to 9KB
- RoCEv2: supported from Release 4.1(x)
- Management: Cisco UCS Manager or Cisco Intersight
- Recommended firmware: UCSM 4.0(4e) or later with VIC firmware 5.0(3d) or later
- Supported servers: C125 M5, C220 M5/M6, C225 M6, C240 M5/M6, C240 SD M5, C245 M6, C480 M5, C480 ML M5, C4200, S3260 M5
- Supported switches: UCS FI 6664, 6536, 6332, 6332-16UP and selected Nexus 3000/9000 models
- Breakout: reverse breakout of 40/100G ports to 4x10G/4x25G is not supported
- QSA28 adapter (CVR-QSFP28-SFP28): not supported
FAQs
Q: Does the UCS VIC 1495 need a separate software licence?
A: No separate software licence is listed for the adapter itself. It is managed through Cisco UCS Manager or Intersight, and licensing for those platforms is separate.
Q: Which servers is the VIC 1495 supported in?
A: It is supported in Cisco UCS C-Series M5 and M6 rack servers, including the C125 M5, C220 M5/M6, C225 M6, C240 M5/M6, C240 SD M5, C245 M6, C480 M5, C480 ML M5 and C4200, as well as the S3260 M5.
Q: How much power does the card draw?
A: It draws 28 W maximum, supplied from the host server PCIe 3.0 x16 slot.
Q: Which Cisco optics work with the VIC 1495?
A: Qualified 40G optics include QSFP-40G-SR4, SR4-S, CSR4, LR4 and LR4-S. Qualified 100G optics include QSFP-100G-SR4-S, QSFP-40/100-SRBD (100G only), QSFP-100G-SR1.2, LR4-S, SL4, DR-S, FR-S, SM-SR, CWDM4-S and PSM4-S. Passive copper and active optical cables are also supported.
Q: How does the VIC 1495 differ from the VIC 1497 and VIC 1477?
A: The VIC 1495 is the PCIe form factor, while the VIC 1497 (UCSC-MLOM-C100-04) and VIC 1477 (UCSC-M-V100-04) are mLOM cards. It has two 40/100G QSFP28 ports on a PCIe 3.0 x16 interface.
Q: Can the 100G ports be broken out into 4x10G or 4x25G?
A: No. Reverse breakout of the 40/100G ports to 4x10G or 4x25G is not supported, and the QSA28 adapter (CVR-QSFP28-SFP28) is also not supported on this card.
